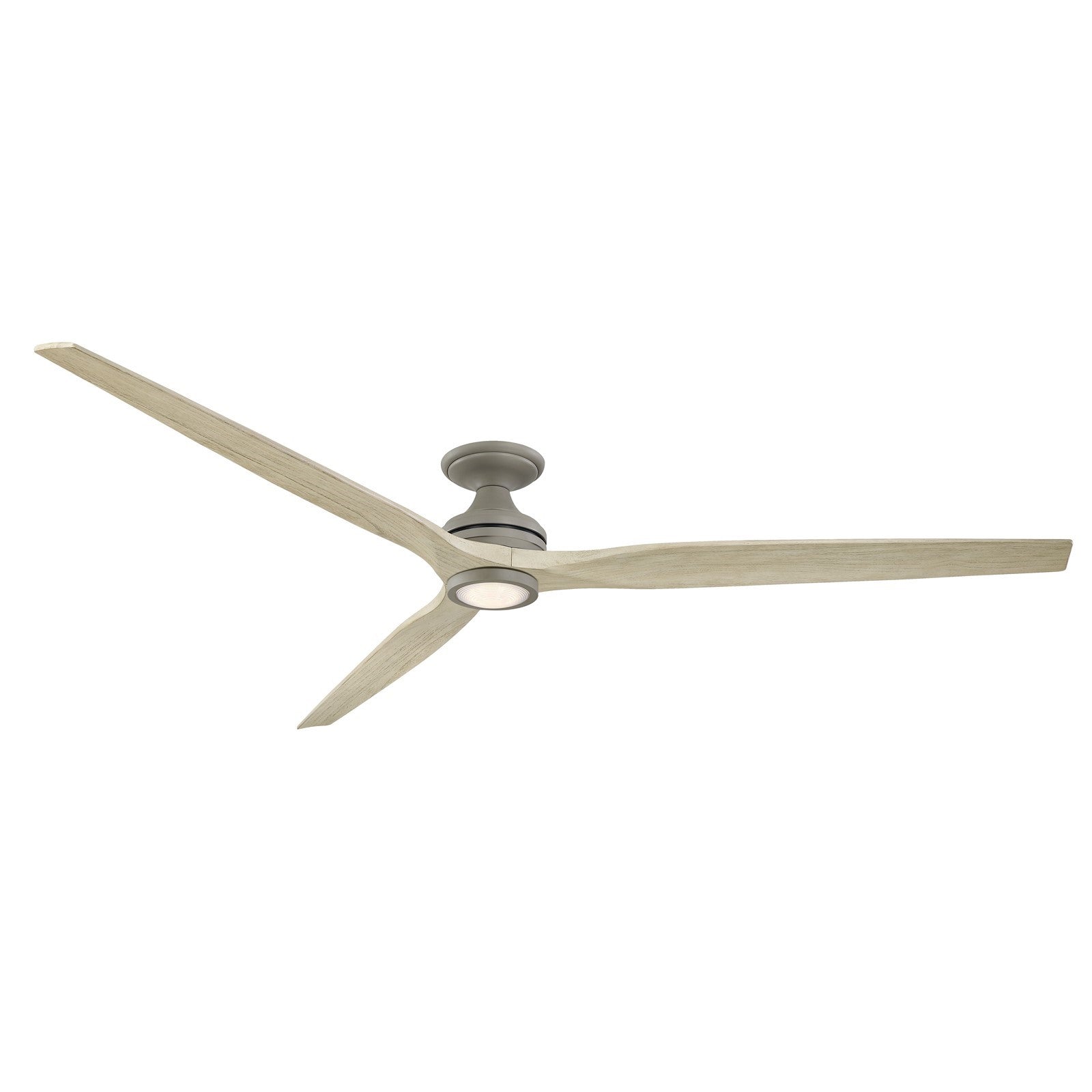

An 84-inch flush-mount smart ceiling fan with an integrated LED light kit for large covered patios and great rooms, finished in antique graphite with light oak blades.
The Spitfire DC Custom pairs a streamlined antique graphite motor with three light oak buttonwood blades, delivering powerful, quiet airflow up to 10,688 CFM from its 6-speed DC motor. This flush-mount version is ideal for low ceilings and includes an integrated 18-watt LED light kit with CCT Select technology, offering five selectable color temperatures from warm white to daylight. The included TR360 remote and Wi-Fi fanSync technology put fan speed, reversing, light dimming, and CCT selection at your fingertips. Damp rated for covered outdoor and indoor spaces, it brings smart comfort and flexible lighting to a wide range of rooms.
Best for
- Covered patios and porches, where damp-rated construction stands up to humidity
- Great rooms and open-plan living areas up to 400 sq ft, with airflow up to 10,688 CFM
- Sunrooms and three-season rooms that need year-round air movement
- Bathrooms and laundry rooms with high ceilings, where moisture resistance matters
- Low-ceiling rooms (8 ft or less) thanks to the flush mount design
Not ideal for
- Outdoor areas directly exposed to rain or water - this fan is damp rated, not wet rated
- Small rooms under 100 sq ft where the 84-inch sweep may feel oversized
- Sloped ceilings without an adapter - this flush mount is designed for flat ceilings
How bright is it?
The integrated 18-watt LED light kit delivers 1600 lumens - about as bright as a 100W incandescent bulb, suitable for ambient lighting in a large room. It is dimmable via the included remote.
Light color and feel
With CCT Select technology, you can choose from five color temperatures - 2700K warm white, 3000K soft white, 3500K neutral, 4000K cool white, or 5000K daylight - to match the mood of the space. With a CRI of 90, colors appear vibrant and accurate. The light is dimmable via the included remote.
Sizing and fit

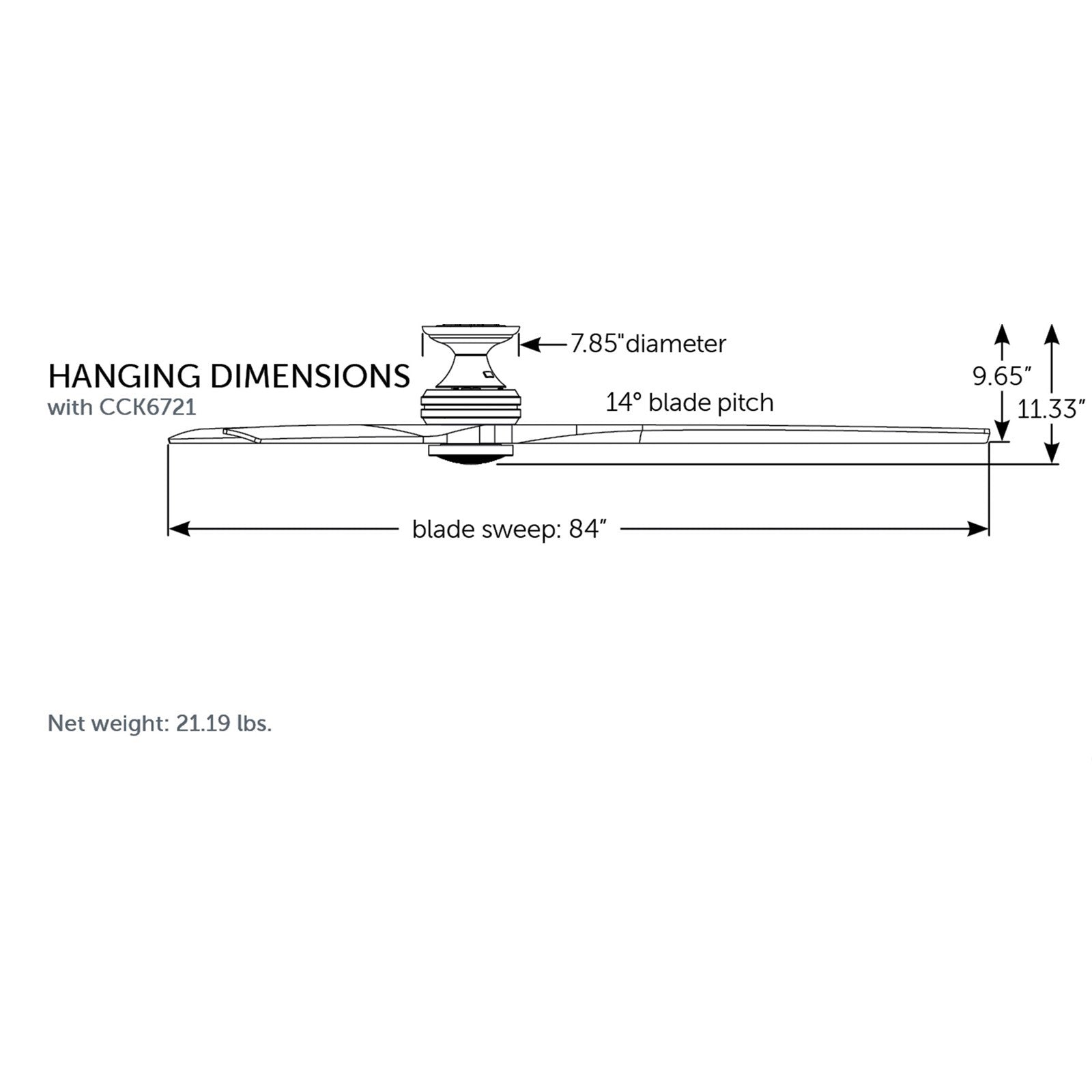

This fan measures 84 inches in blade sweep and 84 x 84 x 11.33 inches overall, with a low-profile flush mount that keeps it just 11.33 inches from the ceiling. It is best suited for rooms with at least 12-foot ceilings and a clear floor area of at least 84 inches. The included ceiling bracket supports flat ceilings only.
Specifications
- Primary Finish: Antique Graphite
- Blade Material: Buttonwood
- Blade Finish: Light Oak
- Shade Finish: Fresnel and Frosted
- Collection: Spitfire
- Blade Sweep: 84"
- Number of Blades: 3
- Blade Pitch: 14°
- Motor Type: DC
- Motor Size: 153 X 22
- Motor Reversible: True
- Number of Speeds: 6
- Reverse Switch Location: Control
- Light Kit Included: True
- Cap Included: True
- Included Control: TR360
- Control Type: Handheld
- 1 Bulb(s)
- Bulb Type: LED Module
- Bulb Base: Connector Pin
- Bulb Max Wattage: 18W
- Color Temperature: 2700, 3000, 3500, 4000, 5000K
- CRI: 90
- Lumens: 1600
- Voltage: 120V
- Avg CFM: 7610
- CFM High: 10688
- Avg Energy Use: 20W
- Location Rating: Damp
- Safety Rating: UL Only Listed
- Warranty: Limited Lifetime Warranty
Frequently asked
Is the bulb included? Yes, this model includes an integrated 18-watt LED light kit with CCT Select technology.
Is it dimmable, and what dimmer should I use? The fan speed is fully adjustable via the included TR360 remote. The light is also dimmable via the remote, with infinite dimming levels.
Can I install this in a bathroom or outdoors? Yes, this fan is damp rated, making it suitable for bathrooms, covered patios, and other covered outdoor spaces. It should not be directly exposed to rain or water.
What's the warranty? Fanimation offers a Limited Lifetime Warranty for the original purchaser, covering the motor. Contact Fanimation Tech Support at 1-888-567-2055 for assistance.
Does this fan work with voice assistants? Yes, the Wi-Fi enabled fanSync technology allows control via compatible smart devices and voice assistants through the fanSync app.
