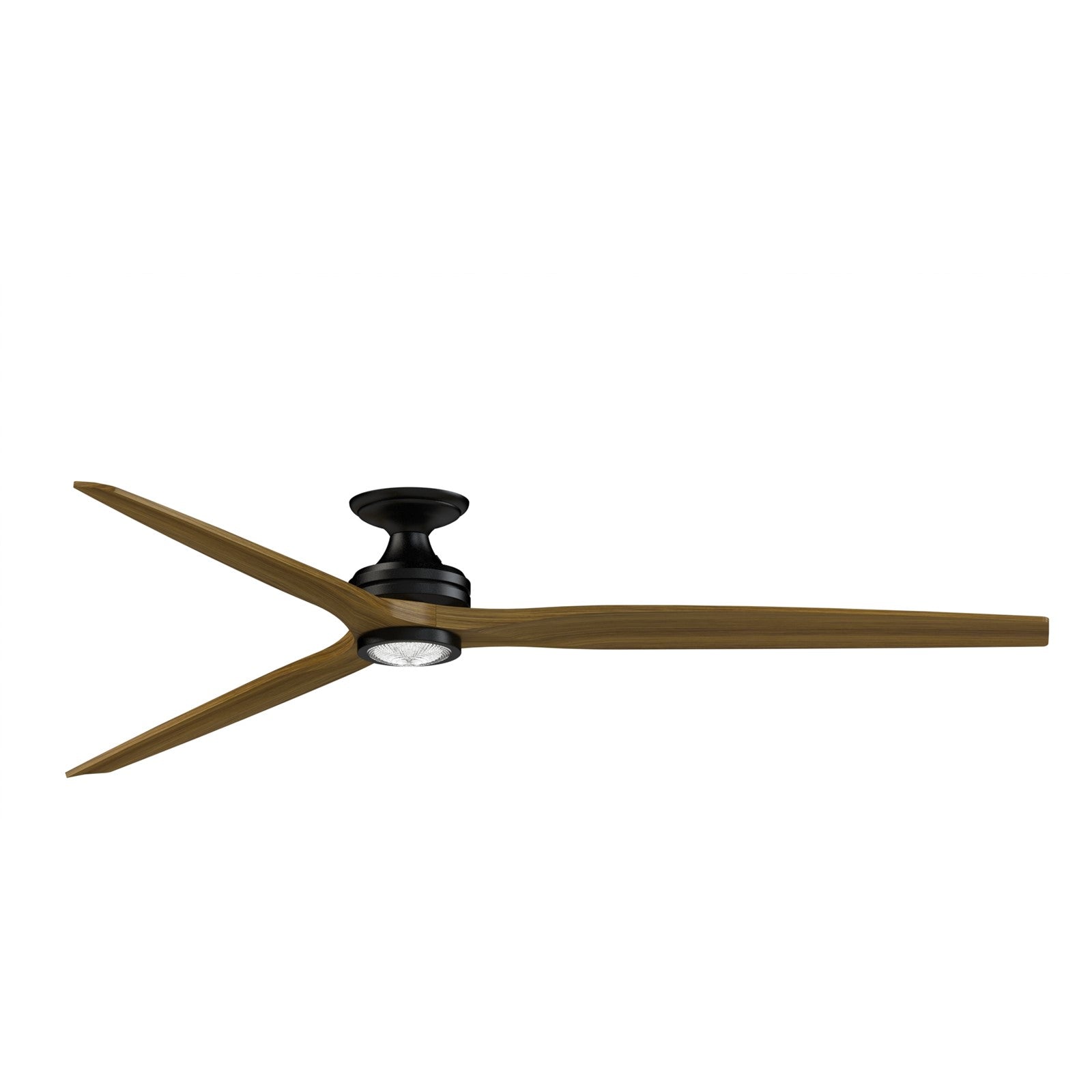

A flush-mount smart ceiling fan with an integrated LED light kit, designed for covered outdoor and indoor spaces, finished in black with Koa wood blades.
The Spitfire DC Custom pairs a sleek black motor with three Koa wood blades, delivering powerful airflow up to 10,688 CFM from its quiet 6-speed DC motor. The integrated 18-watt LED light kit offers five selectable color temperatures (2700K to 5000K) with a high CRI of 90, letting you shift from warm ambiance to bright daylight. Control it all with the included TR360 remote, the fanSync app, or your voice assistant, and enjoy easy installation with KwikWire technology.
Best for
- Covered patios and porches, where damp-rated construction stands up to humidity
- Sunrooms and large living areas needing powerful, quiet airflow
- Bathrooms and laundry rooms with high moisture levels
- Low-ceiling rooms where a flush mount is required
- Smart-home setups with Wi-Fi and voice control
Not ideal for
- Outdoor areas directly exposed to rain or water (damp-rated, not wet-rated)
- Rooms with ceilings under 8 feet if you prefer a downrod mount
- Those seeking a fan without a light kit (this model includes one)
How bright is it?
The integrated LED module produces 1600 lumens - roughly equivalent to a 100-watt incandescent bulb, providing ample illumination for a large room. With a CRI of 90, colors appear vivid and accurate.
Light color and feel
Choose from five color temperatures: 2700K (warm white), 3000K (soft white), 3500K (neutral), 4000K (cool white), and 5000K (daylight). This flexibility lets you match the lighting to your activity and mood, from cozy evenings to bright task lighting. The light is dimmable via the remote or app.
Sizing and fit
This 84-inch fan has an overall dimension of 84 x 84 x 11.33 inches and mounts flush to flat ceilings, making it ideal for rooms with low ceilings. The canopy is 7.85 inches in diameter and 5.02 inches high. It weighs 23.04 lbs.
Specifications
- Primary Finish: Black
- Blade Material: Wood
- Blade Finish: Koa
- Shade Finish: Fresnel and Frosted
- Collection: Spitfire
- Blade Sweep: 84"
- Number of Blades: 3
- Blade Pitch: 14°
- Motor Type: DC
- Motor Size: 153 X 22
- Motor Reversible: True
- Number of Speeds: 6
- Reverse Switch Location: Control
- Light Kit Included: True
- Cap Included: True
- Included Control: TR360
- Control Type: Handheld
- 1 Bulb(s)
- Bulb Type: LED Module
- Bulb Base: Connector Pin
- Bulb Max Wattage: 18W
- Color Temperature: 2700, 3000, 3500, 4000, 5000K
- CRI: 90
- Lumens: 1600
- Voltage: 120V
- Avg CFM: 7610
- CFM High: 10688
- Avg Energy Use: 20W
- Location Rating: Damp
- Safety Rating: UL Only Listed
- Warranty: Limited Lifetime Warranty
Frequently asked
Is the bulb included? Yes, the integrated LED module is included.
Is it dimmable, and what dimmer should I use? Yes, the light is dimmable via the included TR360 remote or the fanSync app. No wall dimmer is required.
Can I install this in a bathroom or outdoors? This fan is damp-rated, making it suitable for bathrooms and covered outdoor areas, but it should not be directly exposed to rain or water.
What's the warranty? Fanimation offers a Limited Lifetime Warranty for the original purchaser.
How does the Koa blade finish compare to other options? Koa is a rich, dark wood with natural grain, adding warmth and a premium look to the fan.
