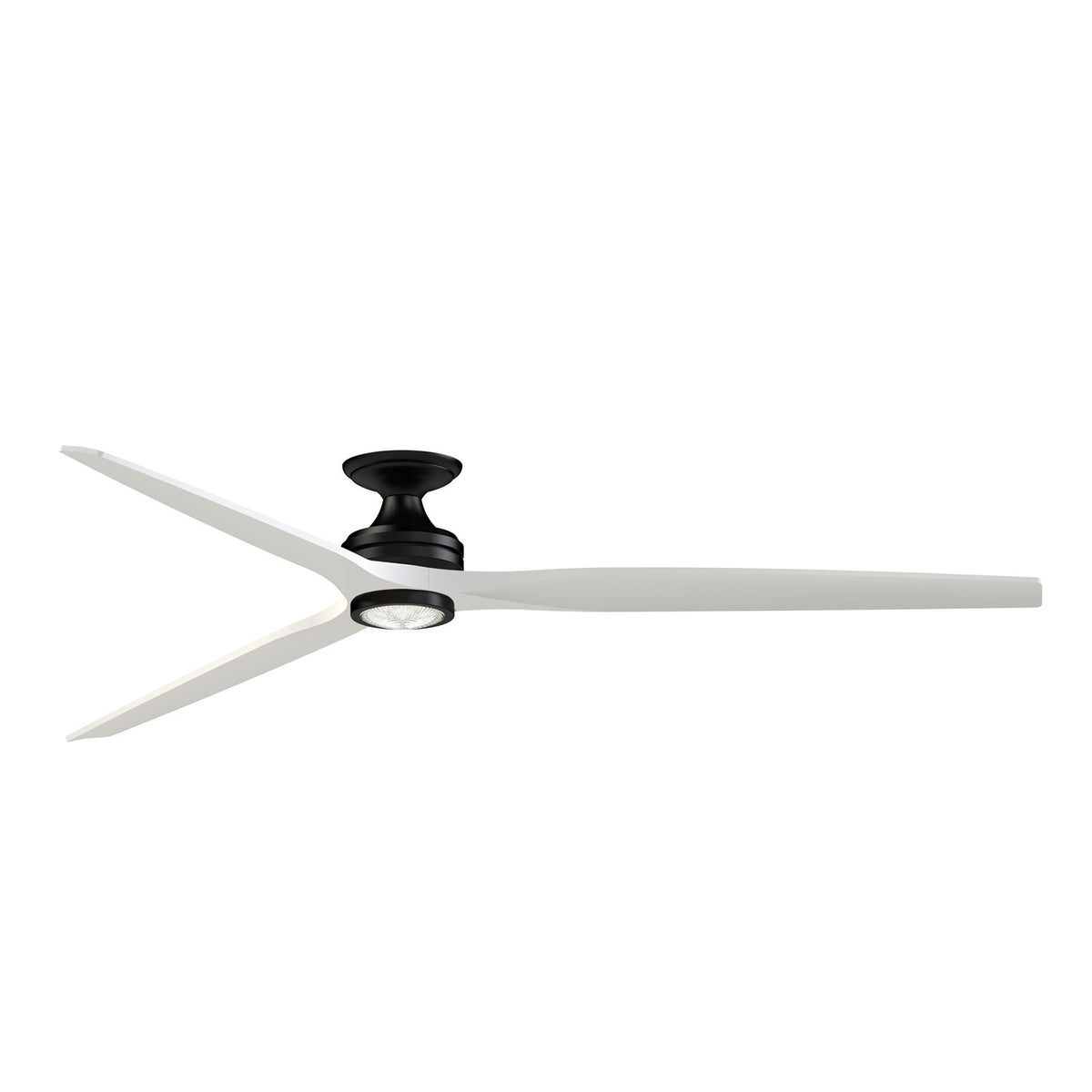

An 84-inch flush-mount smart ceiling fan with integrated LED light kit from Fanimation's Spitfire DC Custom collection, finished in black with matte white blades, designed for large covered outdoor and indoor spaces.
The Spitfire DC Custom pairs a sleek black motor with three matte white buttonwood blades, delivering powerful yet quiet airflow up to 10,688 CFM from its 6-speed DC motor. This flush-mount version sits close to the ceiling, making it ideal for rooms with lower ceilings. It includes an integrated 18-watt LED light kit with CCT Select technology, offering five color temperatures from warm white to daylight. The included TR360 handheld remote and Wi-Fi fanSync connectivity put full control at your fingertips, including light dimming and color selection.
Best for
- Covered patios and porches, where damp-rated construction handles humidity without direct rain exposure
- Large living rooms and great rooms (over 18 x 20 ft) needing high-volume air movement and integrated lighting
- Sunrooms and three-season rooms with low ceilings, thanks to the flush mount design
- Bathrooms and laundry rooms where moisture resistance is a priority
- Smart-home setups, with control via the fanSync app, voice assistants, or the included remote
Not ideal for
- Outdoor areas directly exposed to rain or water - this fan is damp-rated, not wet-rated
- Small rooms under 12 x 12 ft, where the 84-inch sweep may be overpowering
- Sloped ceilings - this flush mount version is designed for flat ceilings only
How bright is it?
The integrated 18-watt LED light kit delivers 1600 lumens - roughly equivalent to a 100-watt incandescent bulb - providing ample illumination for most living spaces. It is dimmable via the remote or app.
Light color and feel
With CCT Select technology, you can choose from five color temperatures - 2700K (warm white), 3000K (soft white), 3500K (neutral), 4000K (cool white), and 5000K (daylight) - to match your mood and decor. The high CRI of 90 ensures colors appear vibrant and true.
Sizing and fit
This fan has an 84-inch blade sweep and overall dimensions of 84 x 84 x 11.33 inches. The flush mount design keeps the fan close to the ceiling, making it suitable for rooms with ceilings as low as 8 feet. The included canopy is 7.85 inches in diameter, and the housing is 8.07 inches. It weighs 23.04 pounds.
Specifications
- Primary Finish: Black
- Blade Material: Buttonwood
- Blade Finish: Matte White
- Shade Finish: Fresnel and Frosted
- Collection: Spitfire
- Blade Sweep: 84"
- Number of Blades: 3
- Blade Pitch: 14°
- Motor Type: DC
- Motor Size: 153 X 22
- Motor Reversible: True
- Number of Speeds: 6
- Reverse Switch Location: Control
- Light Kit Included: True
- Cap Included: True
- Included Control: TR360
- Control Type: Handheld
- 1 Bulb(s)
- Bulb Type: LED Module
- Bulb Base: Connector Pin
- Bulb Max Wattage: 18W
- Color Temperature: 2700, 3000, 3500, 4000, 5000K
- CRI: 90
- Lumens: 1600
- Voltage: 120V
- Avg CFM: 7610
- CFM High: 10688
- Avg Energy Use: 20W
- Location Rating: Damp
- Safety Rating: UL Only Listed
- Warranty: Limited Lifetime Warranty
Frequently asked
Is the bulb included? Yes, the integrated LED light kit is included and features CCT Select technology with five color temperatures.
Is it dimmable, and what dimmer should I use? Yes, the light is dimmable, and dimming is controlled via the included TR360 remote or the fanSync app. No wall dimmer is required.
Can I install this in a bathroom or outdoors? Yes, this fan is damp-rated, making it suitable for bathrooms, covered patios, porches, sunrooms, and laundry rooms. It should not be directly exposed to rain or water.
What's the warranty? Fanimation offers a Limited Lifetime Warranty for the original purchaser, covering the motor. Contact Fanimation Tech Support at 1-888-567-2055 for assistance.
Does this fan work with sloped ceilings? No, this flush-mount version is designed for flat ceilings only. For sloped ceilings, consider the downrod version of the Spitfire DC Custom.
