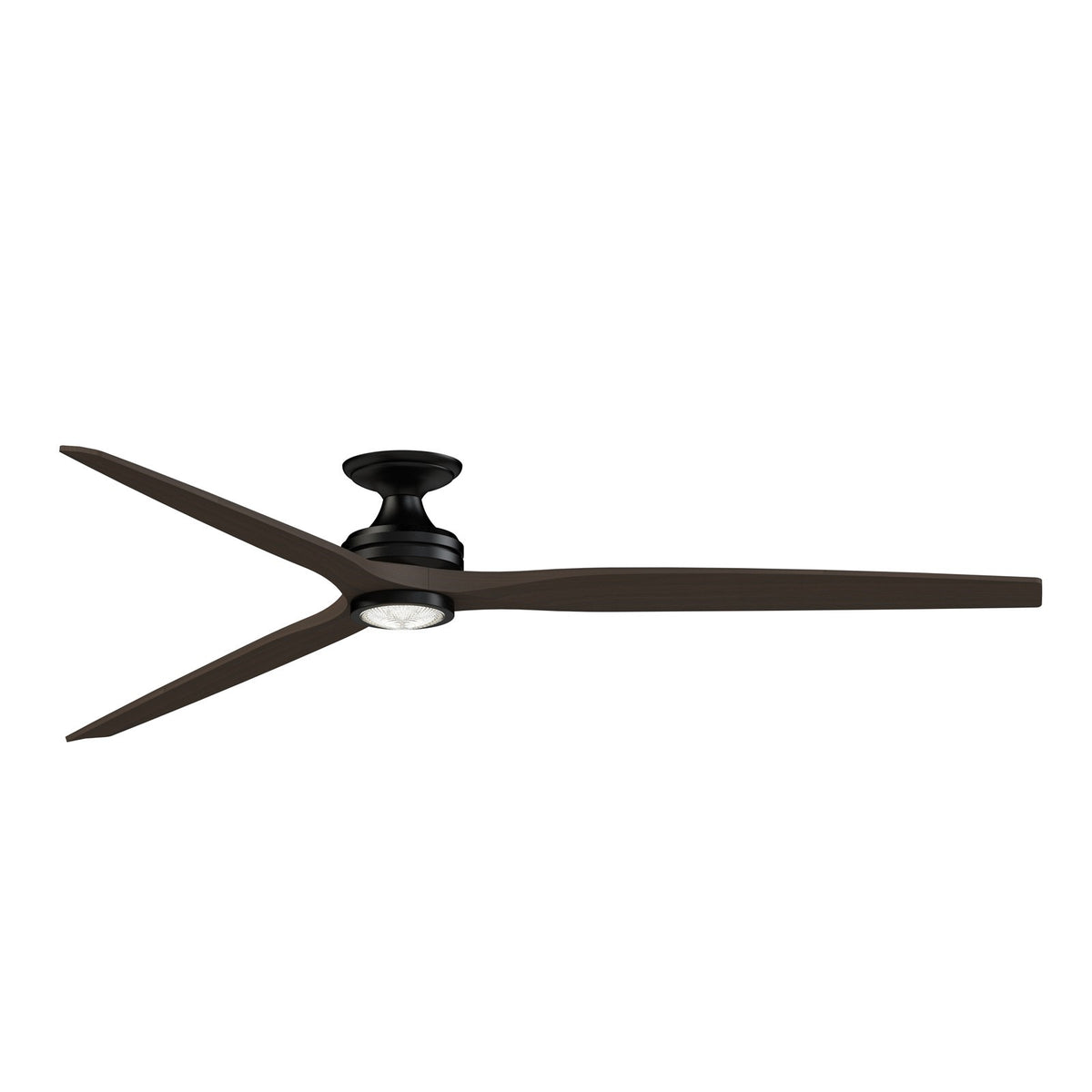

An 84-inch flush-mount smart ceiling fan with an integrated LED light kit, finished in black with dark walnut blades, for covered patios and large living spaces.
The Spitfire DC Custom combines powerful airflow with customizable lighting in a low-profile design. Its black motor and dark walnut blades deliver up to 10,688 CFM, while the included 18-watt LED light kit offers five color temperatures via CCT Select technology. Control everything with the TR360 remote or the fanSync app, and enjoy damp-rated durability for covered outdoor use.
Best for
- Covered patios and porches, where damp-rated construction stands up to humidity
- Great rooms and open-plan living areas with ceilings at least 8 ft high
- Sunrooms and three-season rooms that need year-round air movement
- Low-ceiling rooms where a flush mount keeps headroom clear
- Smart-home setups, thanks to Wi-Fi and voice assistant control
Not ideal for
- Areas directly exposed to rain or water - this fan is damp rated, not wet rated
- Small rooms under 12 x 12 ft, where 84-inch blades would overwhelm the space
- Ceilings under 7 ft, as the fan needs clearance for safe operation
How bright is it?
The integrated 18-watt LED light kit delivers 1600 lumens - roughly equivalent to a 100W incandescent bulb, ideal for ambient lighting in a large room. The light is dimmable for adjustable brightness.
Light color and feel
With CCT Select technology, you can choose from five color temperatures - 2700K warm white, 3000K, 3500K, 4000K, and 5000K daylight - to match the mood from cozy to energizing. A high CRI of 90 ensures colors appear vivid and true to life.
Sizing and fit
This flush-mount fan measures 84 inches in blade sweep and hangs just 11.33 inches from the ceiling, making it ideal for rooms with lower ceilings. The included ceiling bracket mounts directly to a flat ceiling, and the fan weighs 23.04 lbs.
Specifications
- Primary Finish: Black
- Blade Material: Buttonwood
- Blade Finish: Dark Walnut
- Shade Finish: Fresnel and Frosted
- Collection: Spitfire
- Blade Sweep: 84"
- Number of Blades: 3
- Blade Pitch: 14°
- Motor Type: DC
- Motor Size: 153 X 22
- Motor Reversible: True
- Number of Speeds: 6
- Reverse Switch Location: Control
- Light Kit Included: True
- Cap Included: True
- Included Control: TR360
- Control Type: Handheld
- 1 Bulb(s)
- Bulb Type: LED Module
- Bulb Base: Connector Pin
- Bulb Max Wattage: 18W
- Color Temperature: 2700, 3000, 3500, 4000, 5000K
- CRI: 90
- Lumens: 1600
- Voltage: 120V
- Avg CFM: 7610
- CFM High: 10688
- Avg Energy Use: 20W
- Location Rating: Damp
- Safety Rating: UL Only Listed
- Warranty: Limited Lifetime Warranty
Frequently asked
Is the bulb included? Yes, the integrated LED light kit is included and features CCT Select technology.
Is it dimmable, and what dimmer should I use? Yes, the light is dimmable via the included TR360 remote or the fanSync app. No wall dimmer is required.
Can I install this in a bathroom or outdoors? Yes, this fan is damp rated, making it suitable for bathrooms and covered outdoor areas like patios and porches. It should not be directly exposed to rain or water.
What's the warranty? Fanimation offers a Limited Lifetime Warranty for the original purchaser, covering the motor. Contact Fanimation Tech Support at 1-888-567-2055 for assistance.
Does this fan work with voice assistants? Yes, the Wi-Fi enabled fanSync technology allows control via compatible smart devices and voice assistants like Alexa or Google Assistant.
