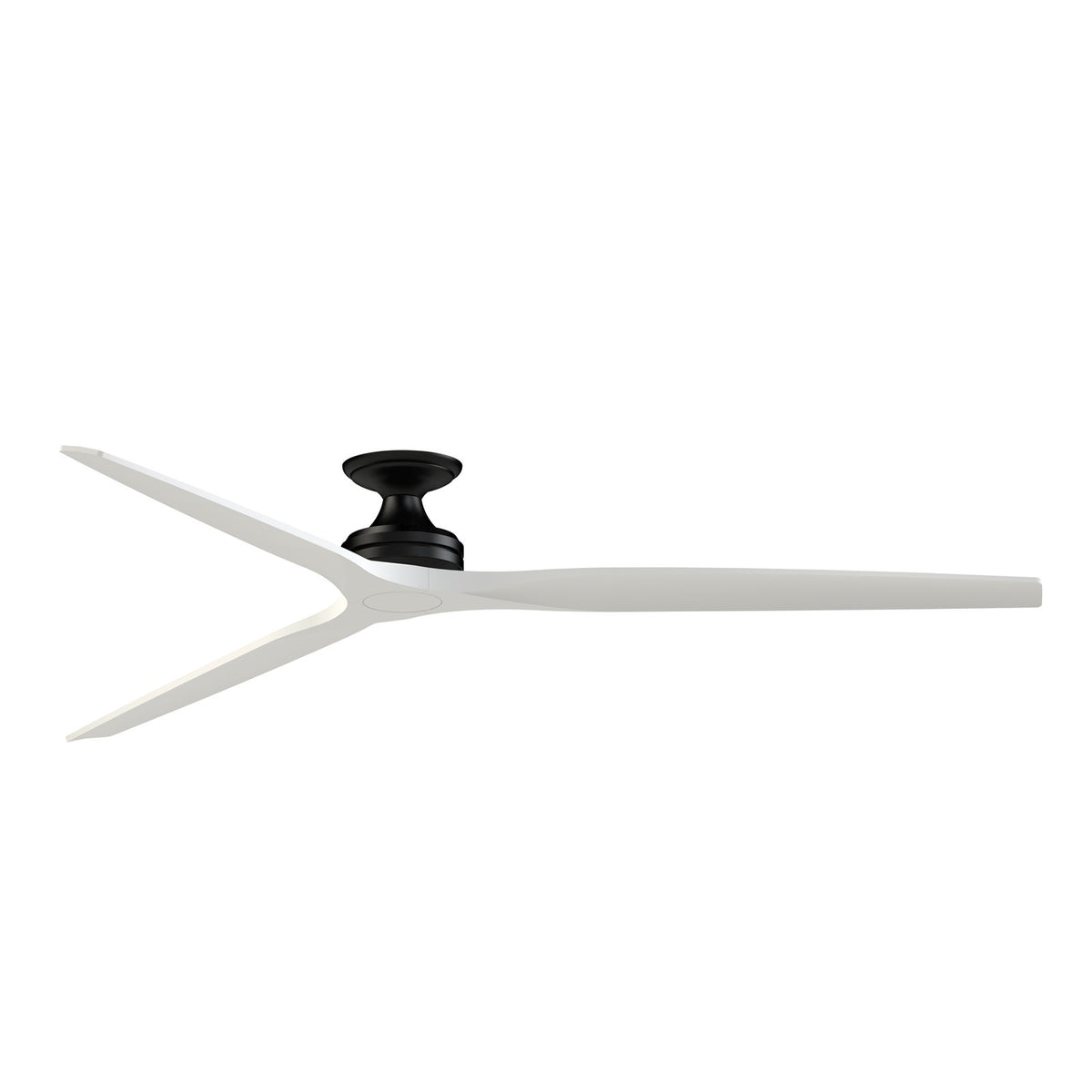

An 84-inch flush-mount smart ceiling fan from Fanimation's Spitfire DC Custom collection, finished in black with matte white blades, designed for large covered outdoor and indoor spaces.
The Spitfire DC Custom pairs a sleek black motor with three matte white buttonwood blades, delivering powerful yet quiet airflow up to 10,688 CFM from its 6-speed DC motor. This flush-mount version sits close to the ceiling, making it ideal for rooms with lower ceilings. It is compatible with an integrated 18-watt LED light kit (sold separately) featuring CCT Select technology for five color temperatures. The included TR360 handheld remote and Wi-Fi fanSync connectivity put full control at your fingertips.
Best for
- Covered patios and porches, where damp-rated construction handles humidity without direct rain exposure
- Large living rooms and great rooms (over 18 x 20 ft) needing high-volume air movement
- Sunrooms and three-season rooms with low ceilings, thanks to the flush mount design
- Bathrooms and laundry rooms where moisture resistance is a priority
- Smart-home setups, with control via the fanSync app, voice assistants, or the included remote
Not ideal for
- Outdoor areas directly exposed to rain or water - this fan is damp-rated, not wet-rated
- Small rooms under 12 x 12 ft, where the 84-inch sweep may be overpowering
- Sloped ceilings - this flush mount version is designed for flat ceilings only
How bright is it?
This fan does not include a light kit. It is compatible with an optional integrated 18-watt LED light kit that delivers 1600 lumens - roughly equivalent to a 100-watt incandescent bulb - providing ample illumination for most living spaces.
Light color and feel
When paired with the optional light kit, you can select from five color temperatures - 2700K (warm white), 3000K (soft white), 3500K (neutral), 4000K (cool white), and 5000K (daylight) - to match your mood and decor. The high CRI of 90 ensures colors appear vibrant and true.
Sizing and fit

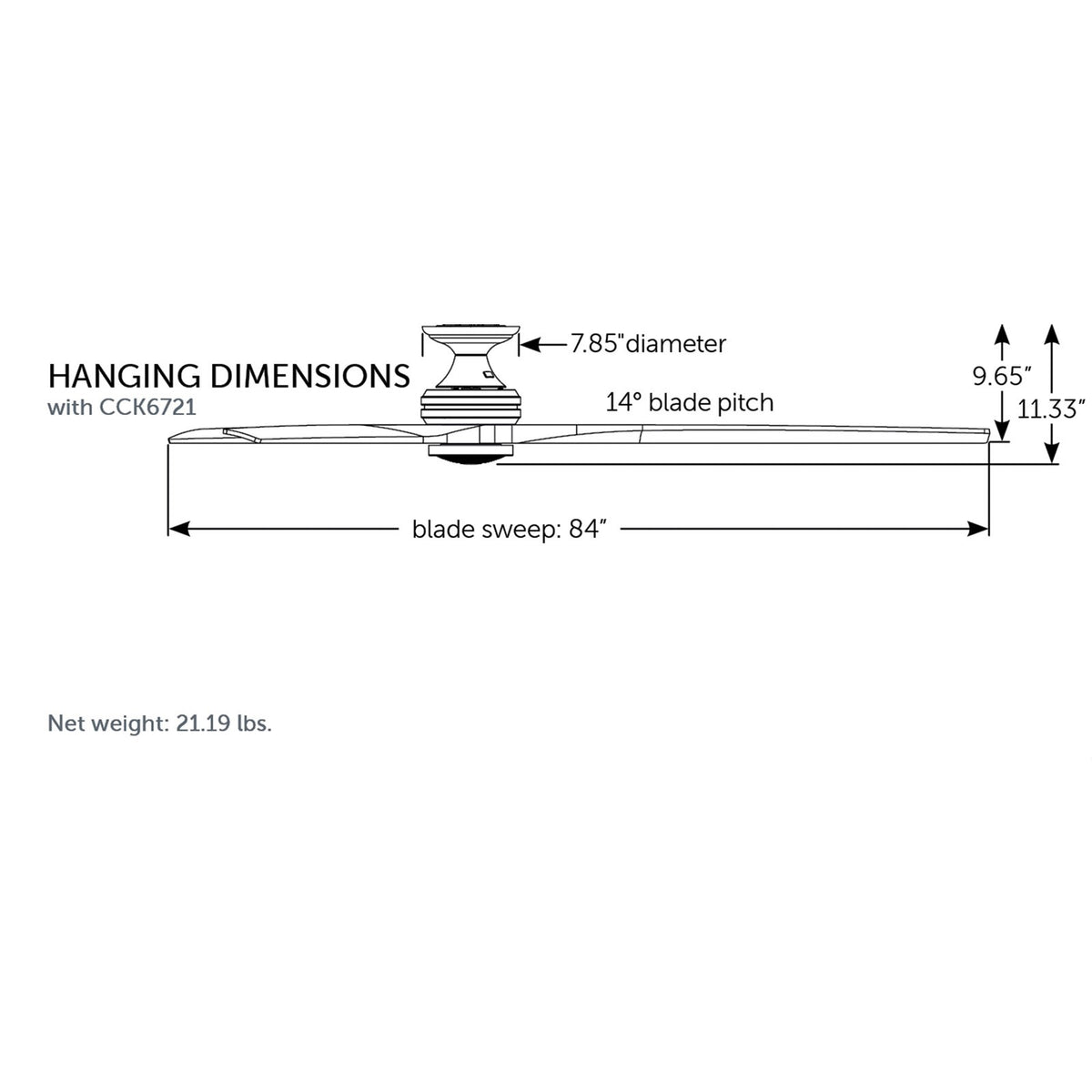

This fan has an 84-inch blade sweep and overall dimensions of 84 x 84 x 9.65 inches. The flush mount design keeps the fan close to the ceiling, making it suitable for rooms with ceilings as low as 8 feet. The included canopy is 7.85 inches in diameter, and the housing is 8.07 inches. It weighs 21.74 pounds.
Specifications
- Primary Finish: Black
- Blade Material: Buttonwood
- Blade Finish: Matte White
- Collection: Spitfire
- Blade Sweep: 84"
- Number of Blades: 3
- Blade Pitch: 14°
- Motor Type: DC
- Motor Size: 153 X 22
- Motor Reversible: True
- Number of Speeds: 6
- Reverse Switch Location: Control
- Cap Included: True
- Included Control: TR360
- Control Type: Handheld
- Voltage: 120V
- Avg CFM: 7610
- CFM High: 10688
- Avg Energy Use: 20W
- Location Rating: Damp
- Safety Rating: UL Only Listed
- Warranty: Limited Lifetime Warranty
Frequently asked
Is the bulb included? No, this fan does not include a light kit. It is compatible with an optional integrated 18-watt LED light kit (sold separately).
Is it dimmable, and what dimmer should I use? The optional light kit is dimmable, and dimming is controlled via the included TR360 remote or the fanSync app. No wall dimmer is required.
Can I install this in a bathroom or outdoors? Yes, this fan is damp-rated, making it suitable for bathrooms, covered patios, porches, sunrooms, and laundry rooms. It should not be directly exposed to rain or water.
What's the warranty? Fanimation offers a Limited Lifetime Warranty for the original purchaser, covering the motor. Contact Fanimation Tech Support at 1-888-567-2055 for assistance.
Does this fan work with sloped ceilings? No, this flush-mount version is designed for flat ceilings only. For sloped ceilings, consider the downrod version of the Spitfire DC Custom.
