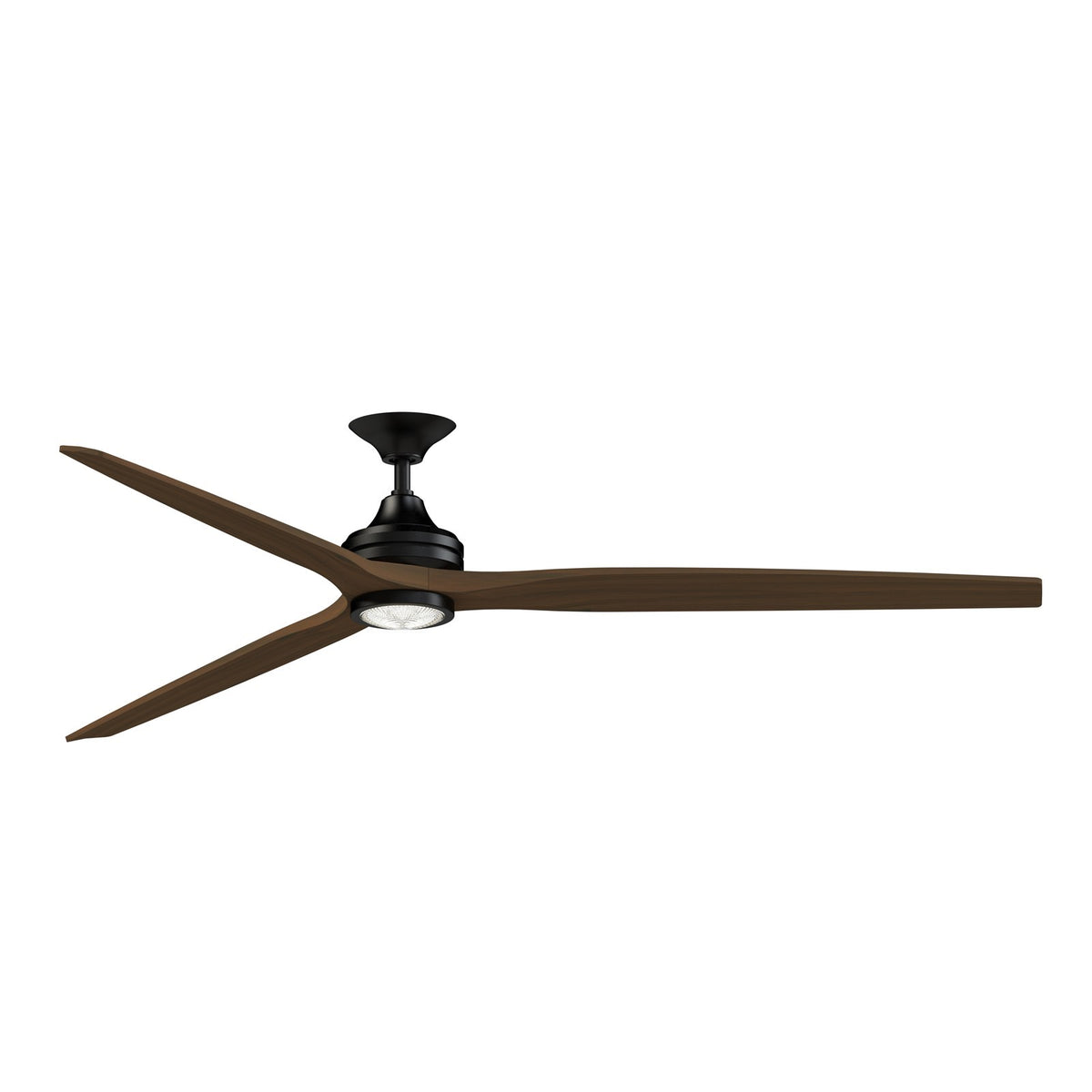

An 84-inch downrod smart ceiling fan with an integrated LED light kit, finished in black with whiskey wood blades, for large indoor and covered outdoor spaces.
The Spitfire DC Custom combines a sleek black housing with three whiskey wood blades and a built-in 18-watt LED light kit featuring CCT Select technology. You can shift the light from warm 2700K to daylight 5000K, and control everything - fan speed, direction, dimming, and color temperature - via the included TR360 remote or the fanSync app. Damp-rated for covered patios and porches, this fan delivers powerful airflow up to 10,688 CFM with quiet efficiency.
Best for
- Covered patios, porches, and sunrooms where damp-rated fixtures are needed
- Great rooms, open-plan living areas, and large bedrooms 18x20 ft or larger
- Rooms with standard or slightly sloped ceilings (up to 20° slope) using the included downrods
- Spaces where you want integrated lighting with adjustable color temperature
Not ideal for
- Outdoor areas directly exposed to rain or water - this fan is damp-rated, not wet-rated
- Small rooms under 12x12 ft where an 84-inch sweep would overwhelm the space
- Low ceilings under 8 ft if you need the fan to hang at the recommended 7-9 ft height
How bright is it?
The integrated 18-watt LED light kit delivers 1600 lumens - about as bright as a 100W incandescent bulb, suitable for ambient lighting in a large room.
Light color and feel
Choose from five color temperatures - 2700K (warm white) to 5000K (daylight) - to match the mood. With a CRI of 90, colors appear vivid and accurate. The light is dimmable via the remote or app.
Sizing and fit
This downrod fan measures 84 inches in diameter and hangs 19.42 inches from the ceiling with the included 6-inch downrod (or 25.42 inches with the 12-inch downrod). It suits rooms with 8-10 ft ceilings; optional downrods up to 72 inches are available for higher ceilings.
Specifications
- Primary Finish: Black
- Blade Material: Buttonwood
- Blade Finish: Whiskey Wood
- Shade Finish: Fresnel and Frosted
- Collection: Spitfire
- Blade Sweep: 84"
- Number of Blades: 3
- Blade Pitch: 14°
- Motor Type: DC
- Motor Size: 153 X 22
- Motor Reversible: True
- Number of Speeds: 6
- Reverse Switch Location: Control
- Light Kit Included: True
- Cap Included: True
- Included Control: TR360
- Control Type: Handheld
- 1 Bulb(s)
- Bulb Type: LED Module
- Bulb Base: Connector Pin
- Bulb Max Wattage: 18W
- Color Temperature: 2700, 3000, 3500, 4000, 5000K
- CRI: 90
- Lumens: 1600
- Voltage: 120V
- Avg CFM: 7610
- CFM High: 10688
- Avg Energy Use: 20W
- Max Slope: 20°
- Location Rating: Damp
- Safety Rating: UL Only Listed
- Warranty: Limited Lifetime Warranty
Frequently asked
Is the bulb included? Yes, the integrated LED light kit is included and features CCT Select technology.
Is it dimmable, and what dimmer should I use? The light is dimmable via the included TR360 remote or the fanSync app; no wall dimmer is needed.
Can I install this in a bathroom or outdoors? Yes, this fan is damp-rated for covered outdoor areas and humid indoor spaces like bathrooms and laundry rooms, but it should not be directly exposed to rain or water.
What's the warranty? Fanimation offers a Limited Lifetime Warranty for the original purchaser.
Does this fan work with sloped ceilings? Yes, it supports ceilings up to 20° slope, and includes 6-inch and 12-inch downrods for installation.
