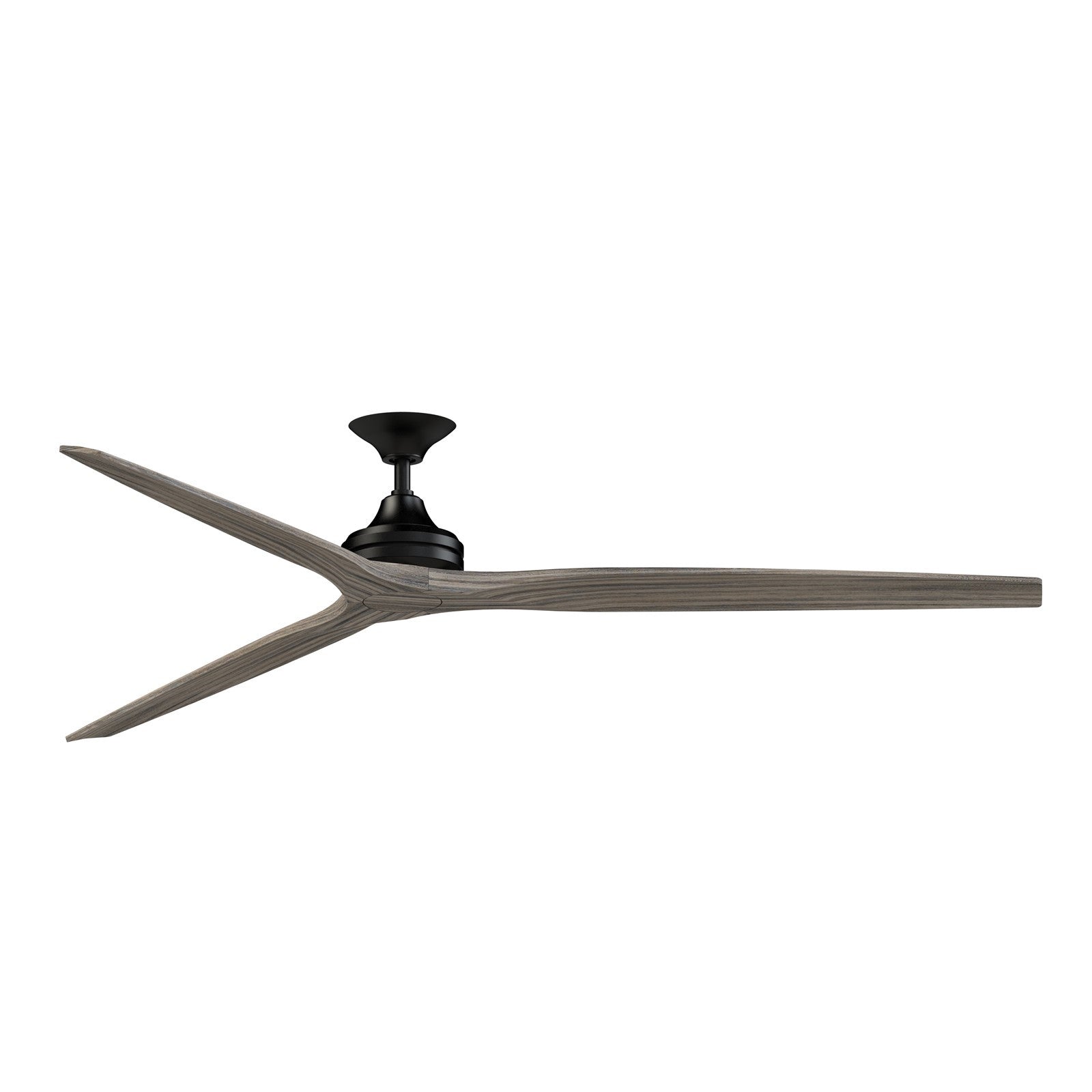

A downrod-mount 84-inch smart ceiling fan for large indoor and covered outdoor spaces, finished in black with weathered wood blades.
The Spitfire DC Custom combines a sleek black motor housing with three weathered wood buttonwood blades for a rustic yet contemporary look. Its powerful 6-speed DC motor delivers up to 10,688 CFM of quiet airflow, and the included TR360 remote plus Wi-Fi fanSync technology give you full control from anywhere. This version is compatible with an optional LED light kit (sold separately) for added versatility.
Best for
- Covered patios, porches, and sunrooms where damp-rated fixtures are required
- Large living rooms and great rooms (over 300 sq ft) needing high airflow
- Bedrooms and home offices where quiet operation and smart control are valued
- Rooms with standard or slightly sloped ceilings (up to 20°)
Not ideal for
- Spaces with ceilings under 8 feet - the downrod adds height, so a flush mount may be better
- Areas directly exposed to rain or water - this fan is damp-rated, not wet-rated
- Small rooms under 100 sq ft where an 84-inch sweep is overpowering
How bright is it?
This fan does not include a light kit, but it is compatible with Fanimation's integrated 18-watt LED light kit (sold separately) that produces 1600 lumens - comparable to a 100-watt incandescent bulb. The light is dimmable and offers five color temperatures.
Light color and feel
When paired with the optional light kit, you can choose from 2700K (warm white) to 5000K (daylight) via CCT Select technology. The 90 CRI ensures accurate color rendering, making it suitable for art or entertaining spaces.
Sizing and fit
This fan measures 84 inches in diameter and hangs 19.69 inches from the ceiling with the included 12-inch downrod (6-inch also included). It's designed for flat or slightly sloped ceilings (up to 20°) and works best in rooms with at least 8-foot ceilings. Optional downrods up to 72 inches are available for higher ceilings.
Specifications
- Primary Finish: Black
- Blade Material: Buttonwood
- Blade Finish: Weathered Wood
- Collection: Spitfire
- Blade Sweep: 84"
- Number of Blades: 3
- Blade Pitch: 14°
- Motor Type: DC
- Motor Size: 153 X 22
- Motor Reversible: True
- Number of Speeds: 6
- Reverse Switch Location: Control
- Cap Included: True
- Included Control: TR360
- Control Type: Handheld
- Voltage: 120V
- Avg CFM: 7610
- CFM High: 10688
- Avg Energy Use: 20W
- Max Slope: 20°
- Location Rating: Damp
- Safety Rating: UL Only Listed
- Warranty: Limited Lifetime Warranty
Frequently asked
What is it made of? The motor housing is metal with a black finish, and the blades are made of buttonwood with a weathered wood finish.
Where in the home does this work best? It's ideal for large living rooms, bedrooms, and covered outdoor areas like patios and porches.
How is it mounted or assembled? It mounts to the ceiling with a downrod (6-inch and 12-inch included). Assembly is required, but Fanimation's KwikWire technology simplifies wiring.
What's the warranty? Fanimation offers a Limited Lifetime Warranty on the motor.
Can I add a light kit later? Yes, this fan is compatible with Fanimation's integrated LED light kit (sold separately).
