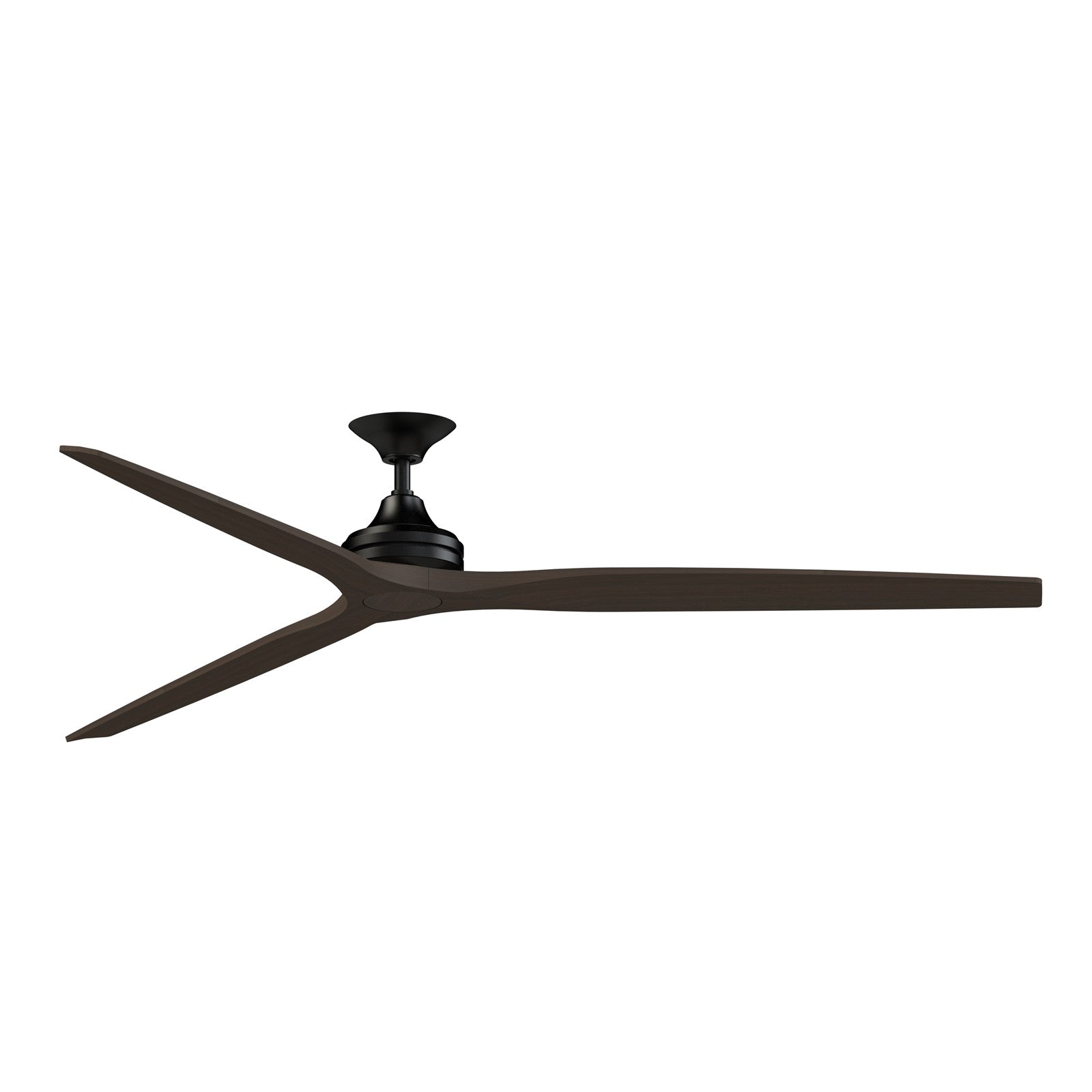

An 84-inch downrod smart ceiling fan with a Black motor and Dark Walnut blades, designed for large indoor and covered outdoor spaces.
The Spitfire DC Custom delivers powerful, quiet airflow up to 10,688 CFM from its 6-speed DC motor. The Black finish pairs beautifully with the Dark Walnut blades, adding warmth to any room. This fan is compatible with an optional LED light kit (sold separately) featuring CCT Select technology. Control it all with the included TR360 remote or via Wi-Fi with the fanSync app and voice assistants.
Best for
- Covered patios and porches, where damp-rated construction handles humidity without direct rain exposure
- Large living rooms and great rooms, providing powerful airflow to cool the whole space
- Sunrooms and enclosed porches, adding both light and air circulation
- Bedrooms and home offices, with quiet operation and customizable light for any task
- Rooms with standard or slightly sloped ceilings, thanks to the included downrods
Not ideal for
- Outdoor areas with direct rain or water exposure—this fan is damp-rated, not wet-rated
- Small rooms under 12x12 ft, where the 84-inch blade sweep may be overpowering
How bright is it?
This fan does not include a light kit, so brightness depends on the optional light kit you add. The compatible LED kit offers 1600 lumens—about as bright as a 100W incandescent bulb—and is dimmable.
Light color and feel
If you add the optional light kit, you can choose from 2700K warm white to 5000K daylight, allowing you to shift from cozy evenings to bright, energizing light. With a CRI of 90, colors appear vivid and accurate.
Sizing and fit
This fan spans 84 inches in diameter and hangs 19.69 inches from the ceiling with the included 12-inch downrod. It also includes a 6-inch downrod for lower ceilings. Optional downrods up to 72 inches are available for higher ceilings.
Specifications
- Primary Finish: Black
- Blade Material: Buttonwood
- Blade Finish: Dark Walnut
- Collection: Spitfire
- Blade Sweep: 84"
- Number of Blades: 3
- Blade Pitch: 14°
- Motor Type: DC
- Motor Size: 153 X 22
- Motor Reversible: True
- Number of Speeds: 6
- Reverse Switch Location: Control
- Cap Included: True
- Included Control: TR360
- Control Type: Handheld
- Voltage: 120V
- Avg CFM: 7610
- CFM High: 10688
- Avg Energy Use: 20W
- Max Slope: 20°
- Location Rating: Damp
- Safety Rating: UL Only Listed
- Warranty: Limited Lifetime Warranty
- Overall Dimensions: 84"(L)84"(W) x 19.69"(H)
- Housing Diameter: 8.07"
- Canopy Dimensions: 8.76"(Dia) x 2.52"(H)
- Downrod Length: 6, 12"
- Leadwire Length: 14 motor & 15 light"
- Ceiling to Bottom (No Light Kit): 13.69, 19.69"
- Item Weight: 19.98 lbs.
Frequently asked
What is it made of? The motor is finished in Black, and the blades are made of Buttonwood with a Dark Walnut finish.
Where in the home does this work best? This fan is ideal for large living rooms, covered patios, sunrooms, and bedrooms. It is damp-rated for covered outdoor use.
How is it mounted or assembled? It mounts to the ceiling using the included 6-inch or 12-inch downrod. Optional downrods up to 72 inches are available.
What's the warranty? Limited Lifetime Warranty for the original purchaser.
Can I add a light kit later? Yes, this fan is compatible with Fanimation's integrated LED light kit, which is sold separately.
