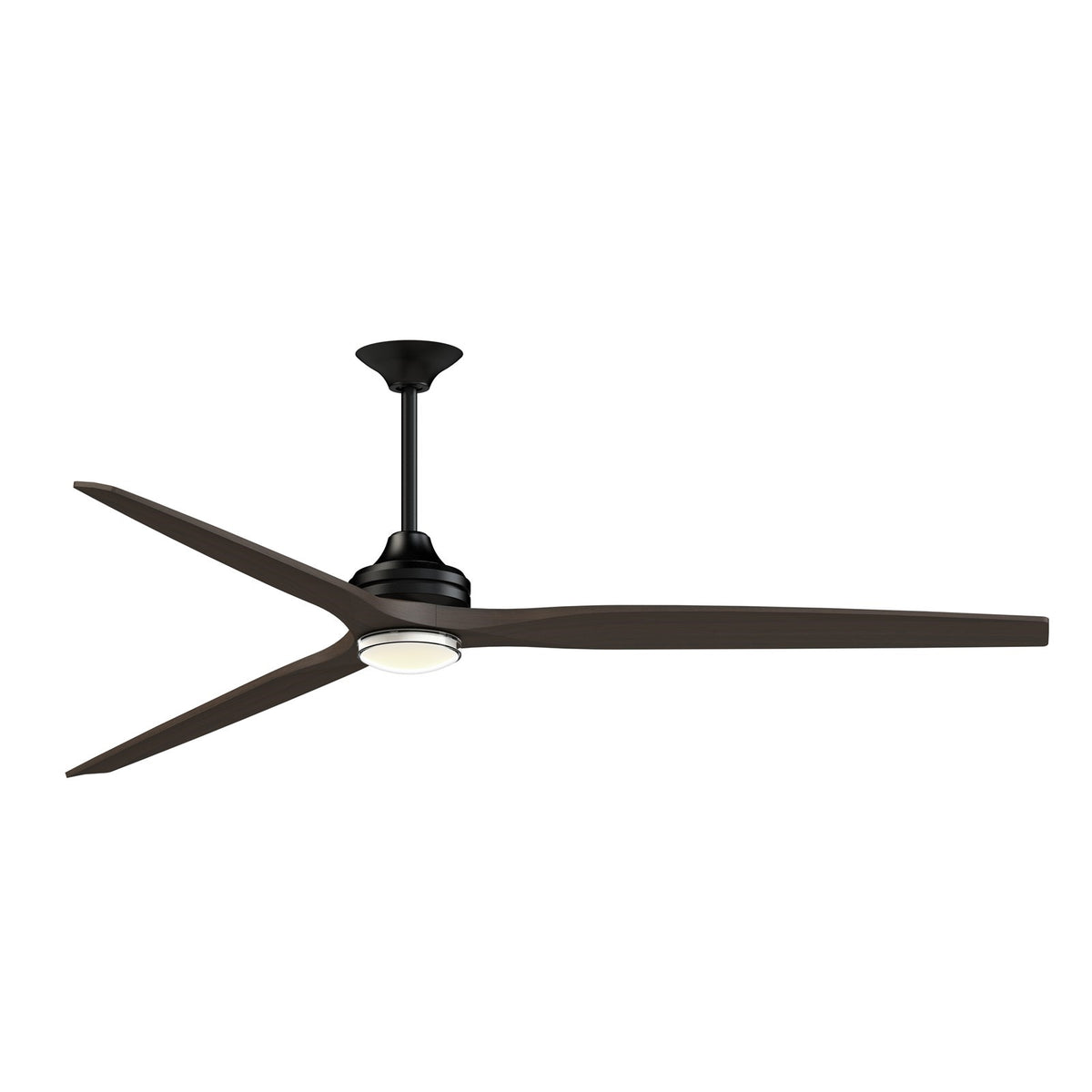

An 84-inch downrod smart ceiling fan with an integrated LED light kit, designed for large indoor and covered outdoor spaces.
The Spitfire DC Custom pairs a sleek Black motor with Dark Walnut blades, delivering powerful, quiet airflow up to 10,688 CFM. Its 6-speed DC motor is energy-efficient and reversible for year-round comfort. The integrated 24-watt LED light kit features CCT Select technology, letting you choose from five color temperatures—2700K to 5000K—to match your mood. The double-walled marine-grade glass shade is built for durability. Control it all with the included TR360 remote or via Wi-Fi with the fanSync app and voice assistants.
Best for
- Covered patios and porches, where damp-rated construction handles humidity without direct rain exposure
- Large living rooms and great rooms, providing powerful airflow to cool the whole space
- Sunrooms and enclosed porches, adding both light and air circulation
- Bedrooms and home offices, with quiet operation and customizable light for any task
- Rooms with standard or slightly sloped ceilings, thanks to the included downrods
Not ideal for
- Outdoor areas with direct rain or water exposure—this fan is damp-rated, not wet-rated
- Small rooms under 12x12 ft, where the 84-inch blade sweep may be overpowering
How bright is it?
2000 lumens—about as bright as a 150W incandescent bulb, ideal for providing primary or ambient light in a large room. The dimmable LED lets you adjust brightness to suit the occasion.
Light color and feel
Choose from 2700K warm white to 5000K daylight, so you can shift from cozy evenings to bright, energizing light. With a CRI of 90, colors appear vivid and accurate, making it suitable for art or task areas. The light is fully dimmable via the remote or app.

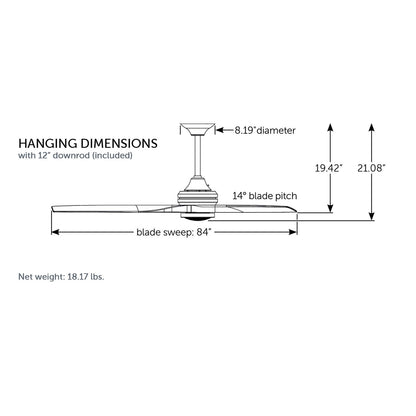

Sizing and fit
This fan spans 84 inches in diameter and hangs 22 inches from the ceiling with the included 12-inch downrod. It also includes a 6-inch downrod for lower ceilings. Optional downrods up to 72 inches are available for higher ceilings.
Specifications
- Primary Finish: Black
- Blade Material: Buttonwood
- Blade Finish: Dark Walnut
- Shade Finish: Clear
- Collection: Spitfire
- Blade Sweep: 84"
- Number of Blades: 3
- Blade Pitch: 14°
- Motor Type: DC
- Motor Size: 153 X 22
- Motor Reversible: True
- Number of Speeds: 6
- Reverse Switch Location: Control
- Light Kit Included: True
- Cap Included: True
- Included Control: TR360
- Control Type: Handheld
- 1 Bulb(s)
- Bulb Type: LED Module
- Bulb Base: Connector Pin
- Bulb Max Wattage: 24W
- Color Temperature: 2700, 3000, 3500, 4000, 5000K
- CRI: 90
- Lumens: 2000
- Voltage: 120V
- Avg CFM: 7610
- CFM High: 10688
- Avg Energy Use: 20W
- Max Slope: 20°
- Location Rating: Damp
- Safety Rating: UL Only Listed
- Warranty: Limited Lifetime Warranty
- Overall Dimensions: 84"(L)84"(W) x 16, 22"(H)
- Housing Diameter: 8.07"
- Canopy Dimensions: 8.76"(Dia) x 2.52"(H)
- Downrod Length: 6, 12"
- Leadwire Length: 14 motor & 15 light"
- Ceiling to Bottom (No Light Kit): 13.69, 19.69"
- Ceiling to Bottom (With Light Kit): 16, 22"
- Item Weight: 20.97 lbs.
Frequently asked
Is the bulb included? Yes, the integrated LED module is included.
Is it dimmable, and what dimmer should I use? Yes, the light is dimmable via the included TR360 remote or the fanSync app. No wall dimmer is needed.
Can I install this in a bathroom or outdoors? This fan is damp-rated, so it can be used in bathrooms and covered outdoor areas, but not in direct rain.
What's the warranty? Limited Lifetime Warranty for the original purchaser.
Is the light kit marine-grade? Yes, the double-walled glass shade is constructed with marine-grade materials for enhanced durability.
