An 84-inch downrod smart ceiling fan for large covered patios and great rooms, finished in antique graphite with natural buttonwood blades.

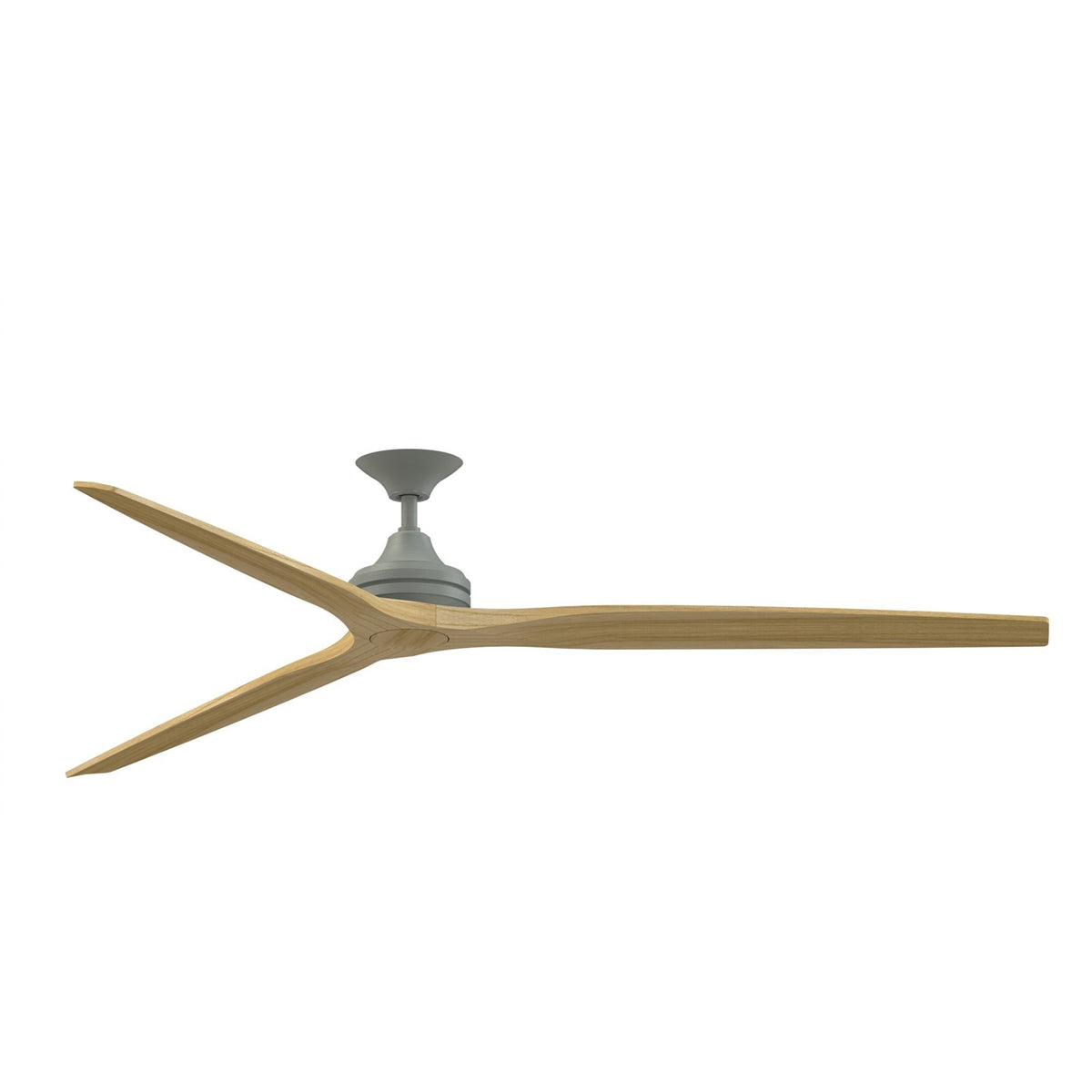

The Spitfire DC Custom pairs a streamlined antique graphite motor with three natural buttonwood blades, delivering powerful, quiet airflow up to 10,688 CFM from its 6-speed DC motor. This downrod version is designed for flat or slightly sloped ceilings and includes both 6-inch and 12-inch downrods for flexible installation. The included TR360 remote and Wi-Fi fanSync technology put fan speed, reversing, and optional lighting control at your fingertips. Damp rated for covered outdoor and indoor spaces, it brings smart comfort to a wide range of rooms.
Best for
- Covered patios and porches, where damp-rated construction stands up to humidity
- Great rooms and open-plan living areas up to 400 sq ft, with airflow up to 10,688 CFM
- Sunrooms and three-season rooms that need year-round air movement
- Bathrooms and laundry rooms with high ceilings, where moisture resistance matters

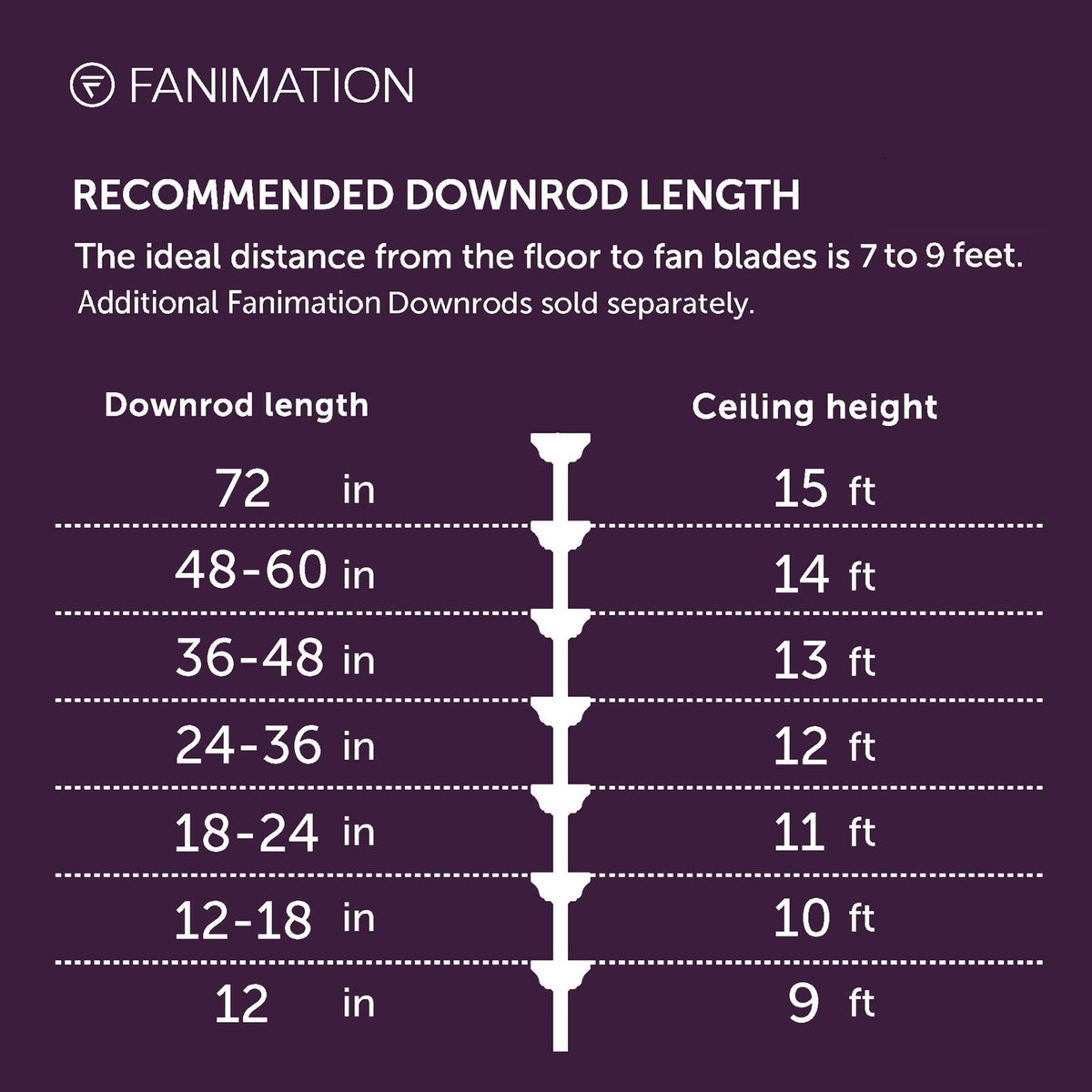

- Rooms with standard 8-9 ft ceilings, using the included 6-inch or 12-inch downrod
Not ideal for
- Outdoor areas directly exposed to rain or water - this fan is damp rated, not wet rated
- Small rooms under 100 sq ft where the 84-inch sweep may feel oversized
- Low ceilings under 8 ft, as the downrod adds height
How bright is it?
This fan is compatible with an optional integrated 18-watt LED light kit (sold separately) that delivers 1600 lumens - about as bright as a 100W incandescent bulb, suitable for ambient lighting in a large room. The light kit is not included with this model.
Light color and feel
When paired with the optional light kit, you can select from five color temperatures - 2700K warm white, 3000K soft white, 3500K neutral, 4000K cool white, or 5000K daylight - to match the mood of the space. With a CRI of 90, colors appear vibrant and accurate. The light is dimmable via the included remote.
Sizing and fit

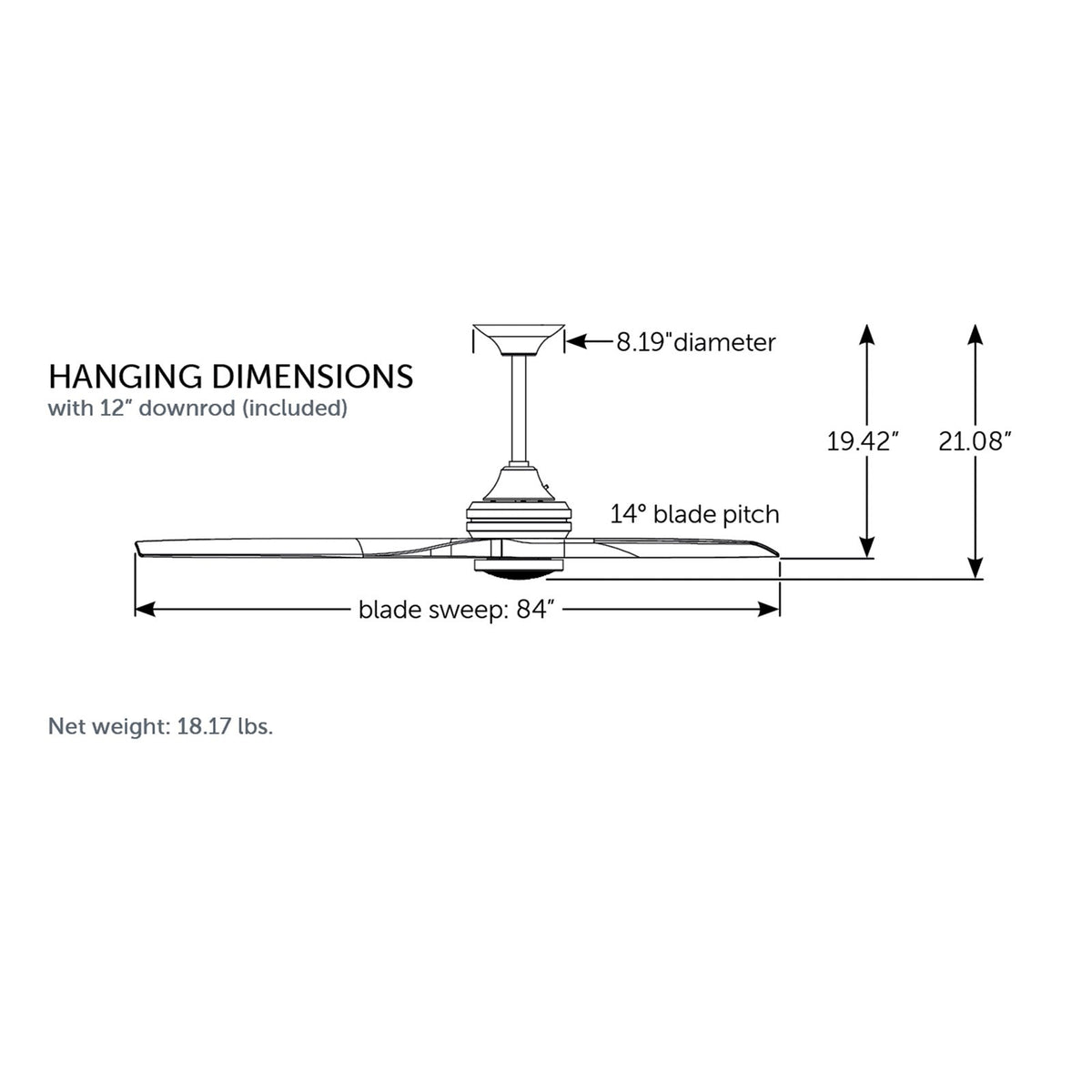

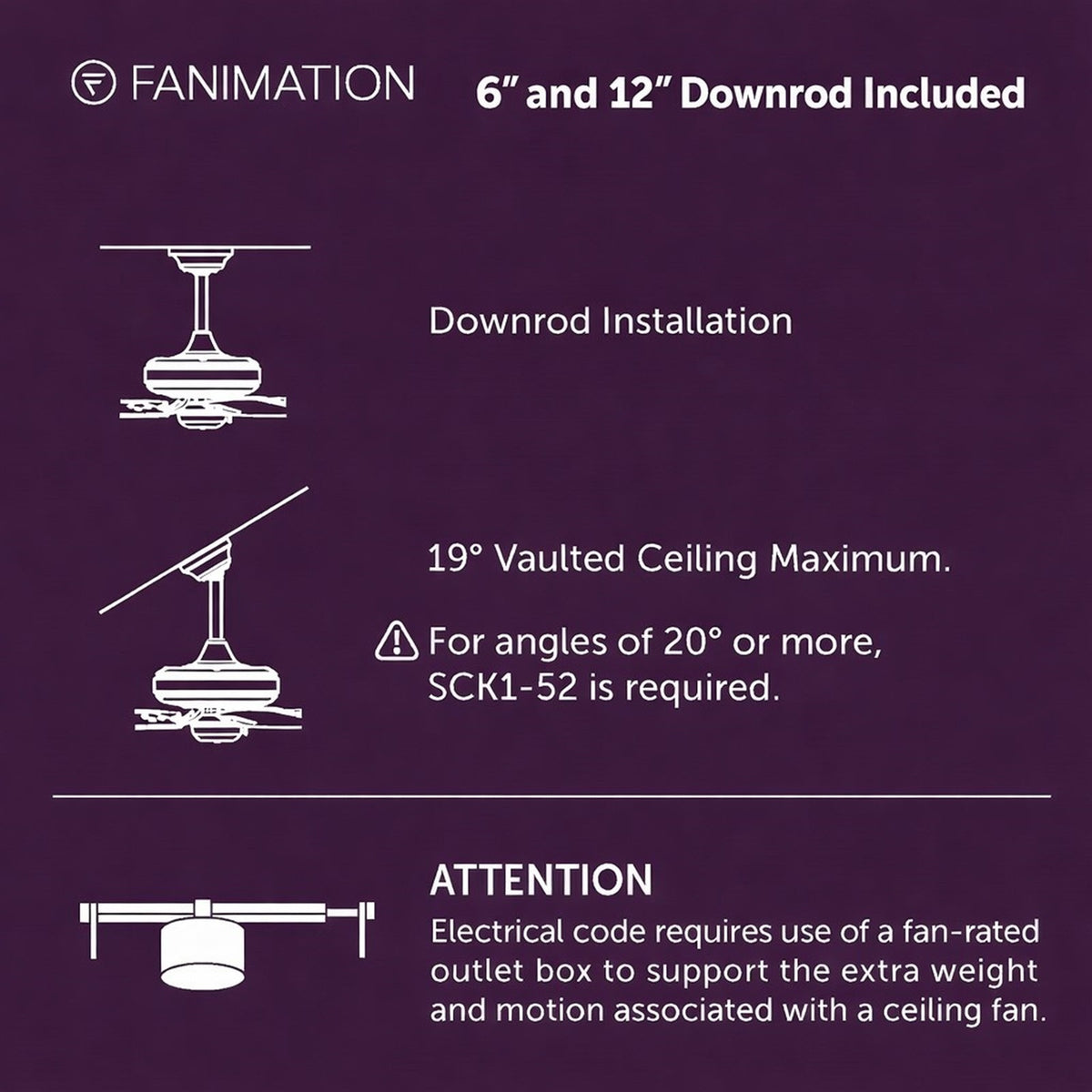

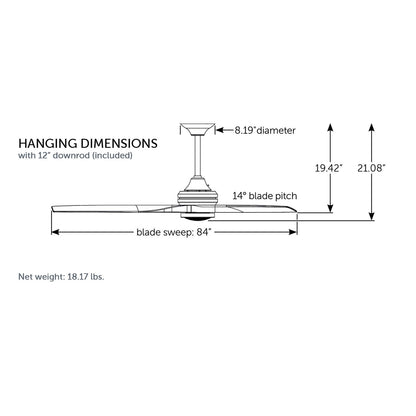

This fan measures 84 inches in blade sweep and 84 x 84 x 19.69 inches overall with the included 12-inch downrod. It is best suited for rooms with at least 9-foot ceilings and a clear floor area of at least 84 inches. The included downrods (6-inch and 12-inch) allow for flexible installation on flat or slightly sloped ceilings (up to 20°).
Specifications
- Primary Finish: Antique Graphite
- Blade Material: Buttonwood
- Blade Finish: Natural
- Collection: Spitfire
- Blade Sweep: 84"
- Number of Blades: 3
- Blade Pitch: 14°
- Motor Type: DC
- Motor Size: 153 X 22
- Motor Reversible: True
- Number of Speeds: 6
- Reverse Switch Location: Control
- Cap Included: True
- Included Control: TR360
- Control Type: Handheld
- Voltage: 120V
- Avg CFM: 7610
- CFM High: 10688
- Avg Energy Use: 20W
- Max Slope: 20°
- Location Rating: Damp
- Safety Rating: UL Only Listed
- Warranty: Limited Lifetime Warranty
Frequently asked
Is the bulb included? No, this model does not include a light kit. It is compatible with an optional integrated 18-watt LED light kit (sold separately).
Is it dimmable, and what dimmer should I use? The fan speed is fully adjustable via the included TR360 remote. If you add the optional light kit, the light is dimmable via the remote as well.
Can I install this in a bathroom or outdoors? Yes, this fan is damp rated, making it suitable for bathrooms, covered patios, and other covered outdoor spaces. It should not be directly exposed to rain or water.
What's the warranty? Fanimation offers a Limited Lifetime Warranty for the original purchaser, covering the motor. Contact Fanimation Tech Support at 1-888-567-2055 for assistance.
Does this fan work with voice assistants? Yes, the Wi-Fi enabled fanSync technology allows control via compatible smart devices and voice assistants through the fanSync app.
