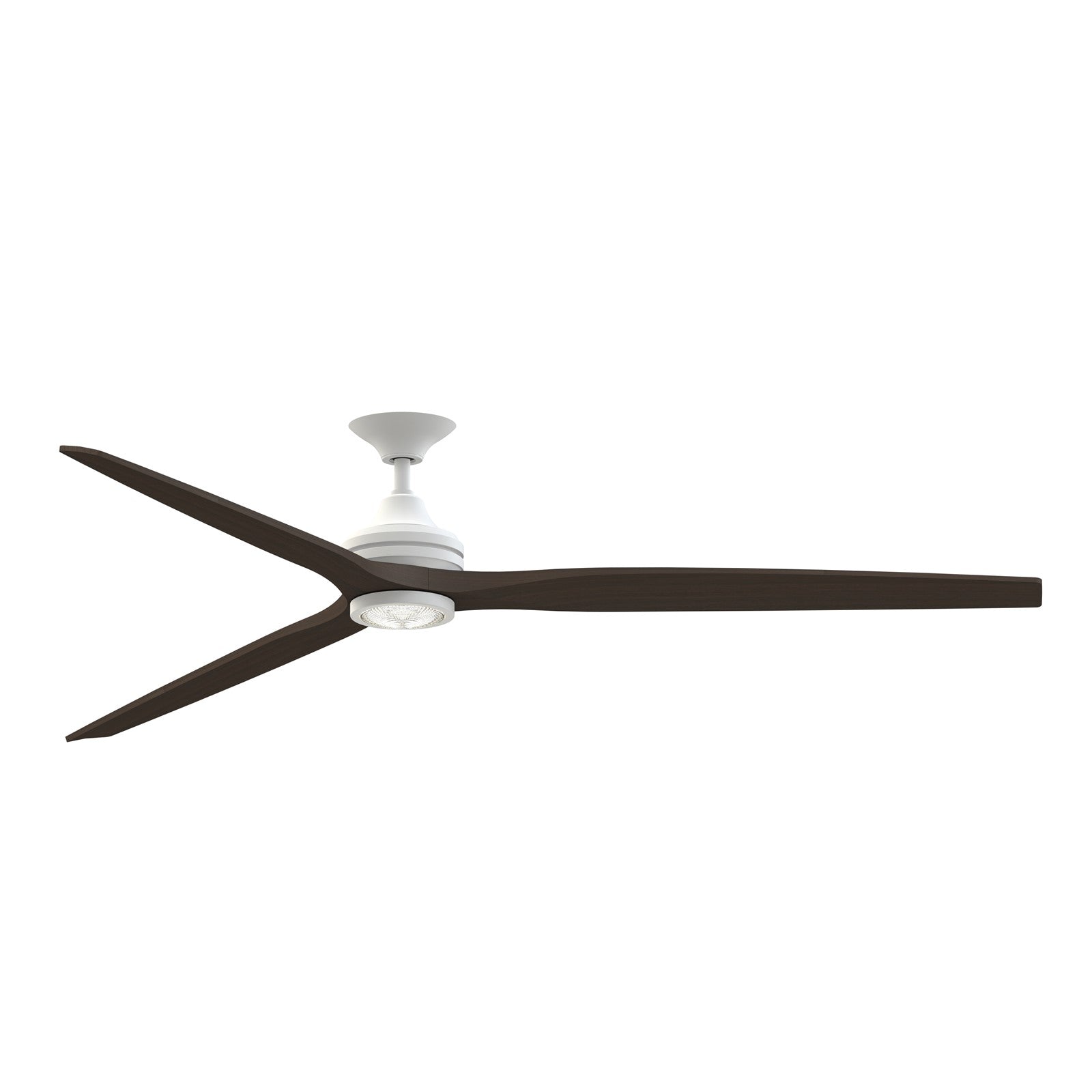

A downrod-mounted 84-inch smart ceiling fan with an integrated LED light kit, for covered patios, sunrooms, and large indoor spaces, finished in matte white with dark walnut blades.
The Spitfire DC Custom combines powerful airflow with customizable lighting. Its 84-inch blade sweep and 6-speed DC motor deliver up to 10,688 CFM, while the integrated 18-watt LED light kit offers five color temperatures via CCT Select technology - from warm 2700K to daylight 5000K. The matte white motor housing pairs with three dark walnut blades for a clean, contemporary look. Wi-Fi enabled fanSync technology allows control from your smartphone, voice assistant, or the included TR360 remote, which manages fan speed, reversing, light dimming, and CCT selection. Damp rated for indoor and covered outdoor use, this fan is built to handle humidity without direct rain exposure.
Best for
- Covered patios and porches, where damp-rated construction stands up to humidity
- Sunrooms and three-season rooms needing powerful, quiet airflow and integrated lighting
- Large living rooms and great rooms with ceilings 8 ft or higher
- Spaces with sloped ceilings up to 20 degrees, using the included downrods
- Smart-home setups, with control via the fanSync app or voice assistants
Not ideal for
- Outdoor areas exposed directly to rain or water - this fan is damp rated, not wet rated
- Small rooms under 12 x 12 ft, where an 84-inch sweep is oversized
- Low ceilings under 8 ft if you prefer a flush mount for extra clearance
How bright is it?
The integrated 18-watt LED light kit delivers 1600 lumens - roughly equivalent to a 100-watt incandescent bulb, suitable for ambient lighting in medium to large rooms. It's dimmable via the remote.
Light color and feel
With CCT Select technology, you can choose from five color temperatures - 2700K warm white, 3000K soft white, 3500K neutral, 4000K cool white, or 5000K daylight - to match the mood of your space. The kit offers a 90 CRI for accurate color rendering, and the remote provides infinite dimming.
Sizing and fit
With an 84-inch blade sweep and downrod mounting, this fan hangs 19.42 inches from the ceiling with the included 6-inch downrod (or 25.42 inches with the 12-inch downrod). The overall dimensions are 84 x 84 x 19.42 inches, and it weighs 21.28 pounds. It's designed for flat or sloped ceilings up to 20 degrees.
Specifications
- Primary Finish: Matte White
- Blade Material: Buttonwood
- Blade Finish: Dark Walnut
- Shade Finish: Fresnel and Frosted
- Collection: Spitfire
- Blade Sweep: 84"
- Number of Blades: 3
- Blade Pitch: 14°
- Motor Type: DC
- Motor Size: 153 X 22
- Motor Reversible: True
- Number of Speeds: 6
- Reverse Switch Location: Control
- Light Kit Included: True
- Cap Included: True
- Included Control: TR360
- Control Type: Handheld
- 1 Bulb(s)
- Bulb Type: LED Module
- Bulb Base: Connector Pin
- Bulb Max Wattage: 18W
- Color Temperature: 2700, 3000, 3500, 4000, 5000K
- CRI: 90
- Lumens: 1600
- Voltage: 120V
- Avg CFM: 7610
- CFM High: 10688
- Avg Energy Use: 20W
- Max Slope: 20°
- Location Rating: Damp
- Safety Rating: UL Only Listed
- Warranty: Limited Lifetime Warranty
Frequently asked
Is the bulb included? Yes, the integrated LED light kit is included and features CCT Select technology with five color temperatures.
Is it dimmable, and what dimmer should I use? The fan speed and light are dimmable via the included TR360 remote. No wall dimmer is required.
Can I install this in a bathroom or outdoors? This fan is damp rated, so it's suitable for bathrooms, covered patios, and other humid indoor or covered outdoor spaces. It should not be directly exposed to rain or water.
What's the warranty? Fanimation offers a Limited Lifetime Warranty for the original purchaser, covering the motor. Contact Fanimation Tech Support at 1-888-567-2055 for assistance.
Does this fan work with smart home systems? Yes, the fanSync technology allows control via the fanSync app, compatible smart devices, and voice assistants like Amazon Alexa or Google Assistant.
