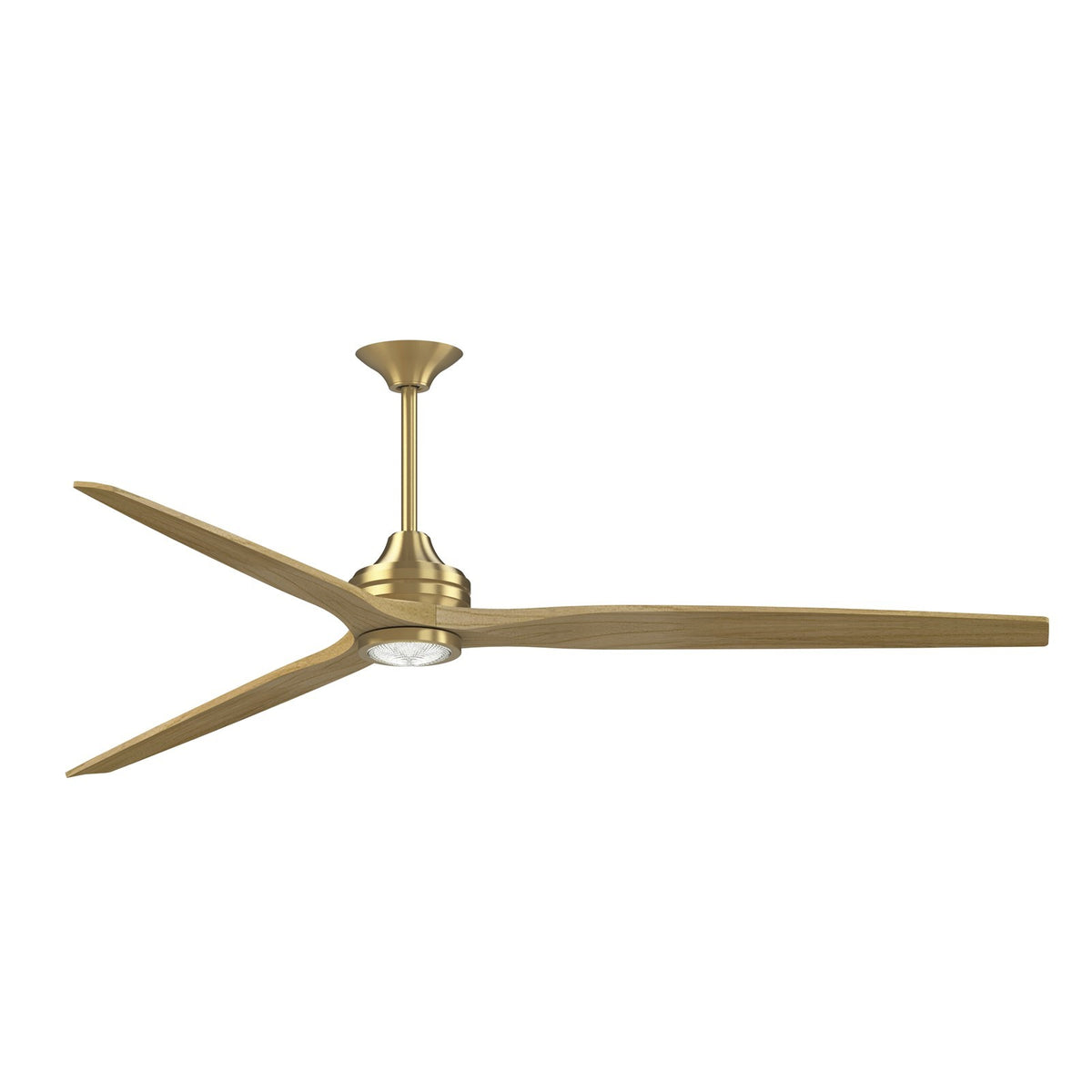

An 84-inch smart ceiling fan with an integrated LED light kit, finished in brushed satin brass with natural buttonwood blades, for large covered patios and living rooms.
The Spitfire DC Custom combines powerful airflow with customizable lighting. Its 6-speed DC motor moves up to 10,688 CFM, while the integrated 18-watt LED light kit offers five color temperatures (2700K-5000K) to shift from warm to daylight. Control everything with the included TR360 remote or via Wi-Fi with the fanSync app. This downrod version includes 6-inch and 12-inch downrods for flexible installation.
Best for
- Covered patios and porches where a downrod mount allows for higher ceilings
- Large living rooms and great rooms needing both air movement and ambient light
- Sunrooms and enclosed porches with humidity exposure
- Bedrooms and home offices where quiet, energy-efficient cooling and lighting are a priority
- Smart-home setups - control via Wi-Fi, voice assistant, or the fanSync app
Not ideal for
- Directly exposed outdoor areas - this fan is damp rated, not wet rated, so it should not be rained on
- Small rooms under 12x12 ft - the 84-inch sweep is oversized for compact spaces
- Ceilings lower than 8 ft - the downrod adds height, so a flush mount may be better
How bright is it?
The integrated LED light kit delivers 1600 lumens - about as bright as a 100W incandescent bulb - suitable for ambient lighting in a large room.
Light color and feel
Choose from five color temperatures (2700K to 5000K), from warm, cozy light to bright daylight. The 90 CRI rating ensures colors appear vivid and accurate, ideal for living spaces and kitchens.
Sizing and fit

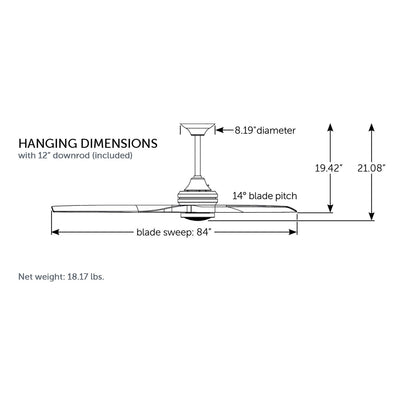

This downrod fan measures 84 inches in blade sweep and hangs 19.42 inches from the ceiling with the included 12-inch downrod. The 84-inch blade span is best suited for rooms at least 18x18 feet.
Specifications
- Primary Finish: Brushed Satin Brass
- Blade Material: Buttonwood
- Blade Finish: Natural
- Shade Finish: Fresnel and Frosted
- Collection: Spitfire
- Blade Sweep: 84"
- Number of Blades: 3
- Blade Pitch: 14°
- Motor Type: DC
- Motor Size: 153 X 22
- Motor Reversible: True
- Number of Speeds: 6
- Reverse Switch Location: Control
- Light Kit Included: True
- Cap Included: True
- Included Control: TR360
- Control Type: Handheld
- 1 Bulb(s)
- Bulb Type: LED Module
- Bulb Base: Connector Pin
- Bulb Max Wattage: 18W
- Color Temperature: 2700, 3000, 3500, 4000, 5000K
- CRI: 90
- Lumens: 1600
- Voltage: 120V
- Avg CFM: 7610
- CFM High: 10688
- Avg Energy Use: 20W
- Max Slope: 20°
- Location Rating: Damp
- Safety Rating: UL Only Listed
- Warranty: Limited Lifetime Warranty
- Overall Dimensions: 84"(L)84"(W) x 19.42"(H)
- Housing Diameter: 8.07"
- Canopy Dimensions: 8.76"(Dia) x 2.52"(H)
- Downrod Length: 6, 12"
- Leadwire Length: 14 motor & 15 light"
- Ceiling to Bottom (No Light Kit): 13.69, 19.69"
- Ceiling to Bottom (With Light Kit): 15.35, 21.35"
- Item Weight: 21.28 lbs.
Frequently asked
Is the bulb included? Yes, the integrated LED light kit is included and features CCT Select technology.
Is it dimmable, and what dimmer should I use? The fan speed is adjustable via the remote, and the light is dimmable. Use the included TR360 remote or the fanSync app for dimming.
Can I install this in a bathroom or outdoors? Yes, this fan is damp rated, making it suitable for covered outdoor areas, bathrooms, and laundry rooms. It should not be directly exposed to rain or water.
What's the warranty? Fanimation offers a Limited Lifetime Warranty for the original purchaser.
How does the downrod installation work? This fan includes both 6-inch and 12-inch downrods, and optional downrods up to 72 inches are available for higher ceilings.
