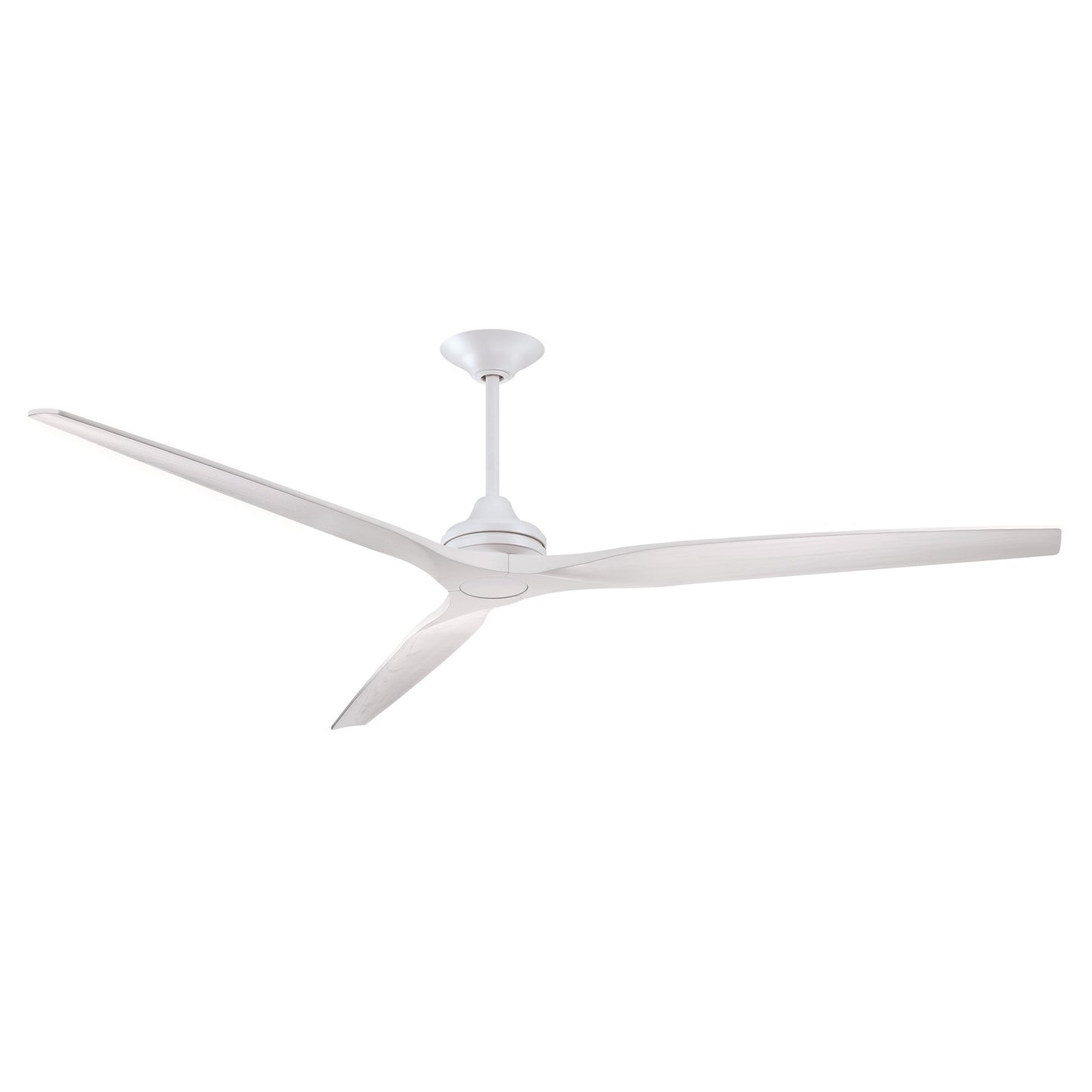

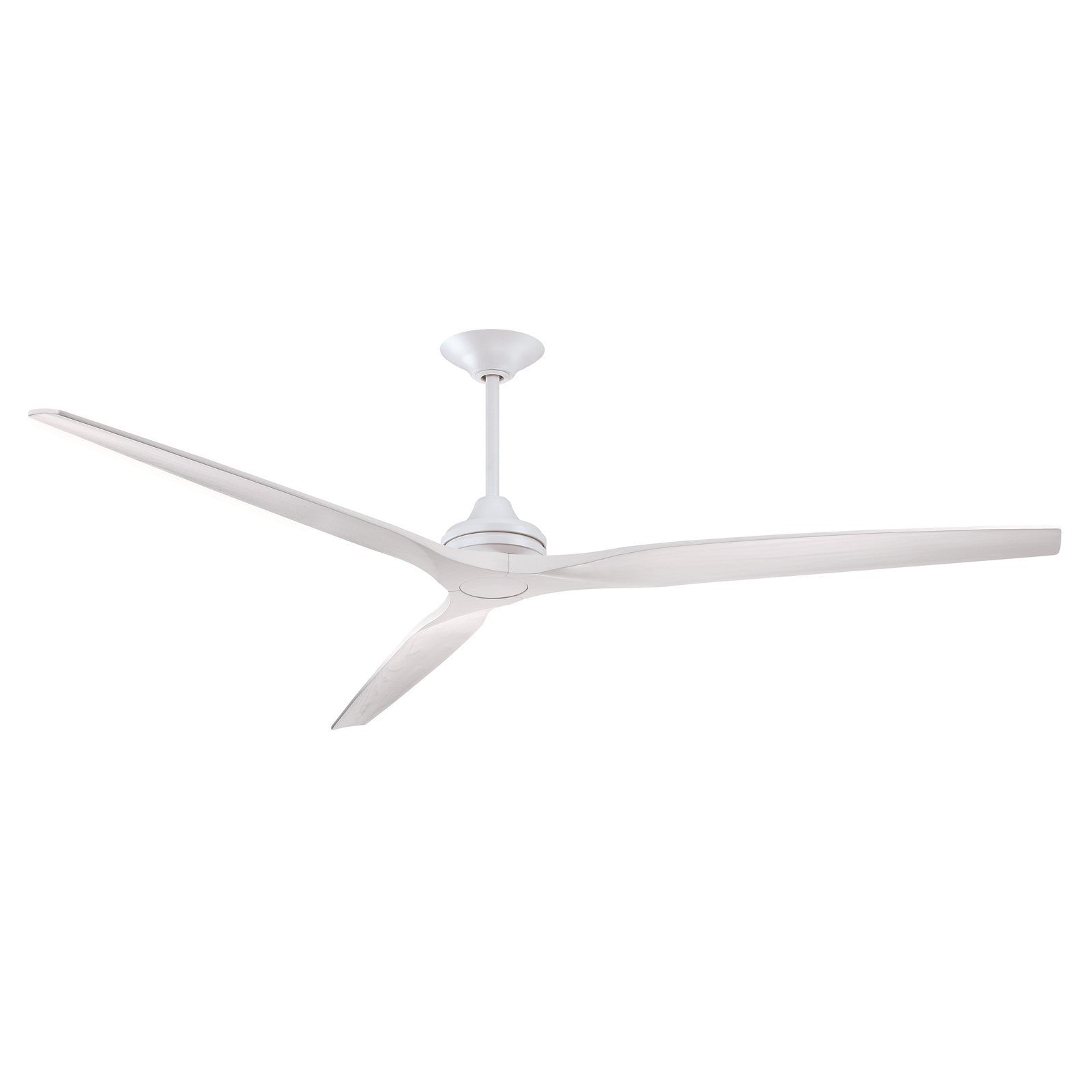

An 84-inch downrod smart ceiling fan from Fanimation's Spitfire DC Custom collection, finished in matte white with white washed blades, designed for indoor and covered outdoor spaces.
The Spitfire DC Custom combines a streamlined matte white motor housing with three white washed blades for a light, airy look. Its powerful yet quiet 6-speed DC motor delivers airflow up to 10,688 CFM, making it a strong choice for large rooms and covered patios. This version is compatible with an optional integrated LED light kit (sold separately) featuring CCT Select technology for adjustable color temperature, and it includes a TR360 handheld remote and Wi-Fi fanSync for smart control.
Best for
- Covered patios, porches, and sunrooms where damp-rated fixtures are needed
- Large living rooms and great rooms (over 18x20 ft) that need high airflow
- Bedrooms and home offices where quiet operation and smart control are valued
- Rooms with standard 8-9 ft ceilings, using the included 6-inch or 12-inch downrods
- Indoor spaces with high humidity, such as bathrooms and laundry rooms
Not ideal for
- Outdoor areas directly exposed to rain or water—this fan is damp-rated, not wet-rated
- Small rooms under 100 sq ft where an 84-inch fan would be overpowering
- Ceilings with a slope greater than 20 degrees—this fan supports up to 20 degrees
How bright is it?
This fan does not include a light kit. If you add the optional 18-watt LED light kit (sold separately), it provides 1600 lumens—comparable to a 100-watt incandescent bulb—suitable for ambient lighting in a living room or bedroom.
Light color and feel
With the optional light kit, you can select from five color temperatures—2700K (warm white) to 5000K (daylight)—to match your mood and decor. The high CRI of 90 ensures colors appear natural and vibrant.
Sizing and fit
This fan has an 84-inch blade sweep and measures 84 inches wide by 84 inches deep by 19.69 inches high (with the included 6-inch downrod). It includes both 6-inch and 12-inch downrods for flexible installation, and optional downrods up to 72 inches are available. The housing diameter is 8.07 inches.
Specifications
- Primary Finish: Matte White
- Blade Material: Buttonwood
- Blade Finish: White Washed
- Collection: Spitfire
- Blade Sweep: 84"
- Number of Blades: 3
- Blade Pitch: 14°
- Motor Type: DC
- Motor Size: 153 X 22
- Motor Reversible: True
- Number of Speeds: 6
- Reverse Switch Location: Control
- Cap Included: True
- Included Control: TR360
- Control Type: Handheld
- Voltage: 120V
- Avg CFM: 7610
- CFM High: 10688
- Avg Energy Use: 20W
- Max Slope: 20°
- Location Rating: Damp
- Safety Rating: UL Only Listed
- Warranty: Limited Lifetime Warranty
- Overall Dimensions: 84"(L) x 84"(W) x 19.69"(H)
- Housing Diameter: 8.07"
- Canopy Dimensions: 8.76"(Dia) x 2.52"(H)
- Downrod Length: 6, 12"
- Leadwire Length: 14 motor & 15 light"
- Ceiling to Bottom (No Light Kit): 13.69, 19.69"
- Item Weight: 19.98 lbs.
Frequently asked
Is the bulb included? No, this fan does not include a light kit. The optional LED light kit is sold separately.
Is it dimmable, and what dimmer should I use? The fan speed is controlled by the included TR360 remote. If you add the optional light kit, it is dimmable via the remote.
Can I install this in a bathroom or outdoors? Yes, this fan is damp-rated, making it suitable for bathrooms and covered outdoor areas like patios and porches. It should not be directly exposed to rain or water.
What's the warranty? Fanimation offers a Limited Lifetime Warranty for the original purchaser.
Does this fan work with sloped ceilings? Yes, it supports ceilings up to 20 degrees slope.
