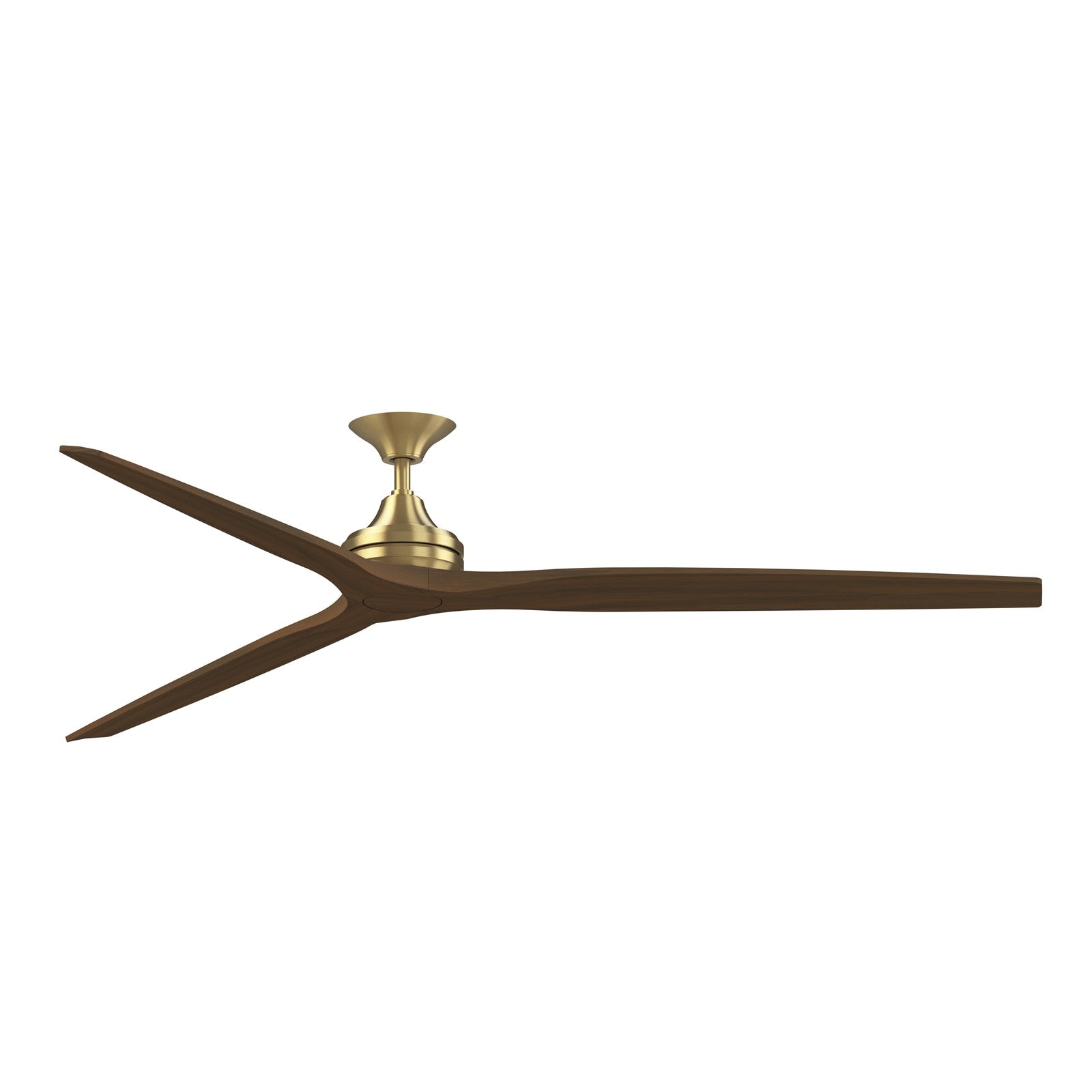

An 84-inch smart ceiling fan for large covered patios and living rooms, finished in brushed satin brass with whiskey wood buttonwood blades.
The Spitfire DC Custom pairs a sleek, low-profile design with powerful, quiet airflow. Its 6-speed DC motor delivers up to 10,688 CFM, and the included TR360 remote and Wi-Fi fanSync app put full control at your fingertips. This downrod version includes 6-inch and 12-inch downrods for flexible installation, and the damp rating means it can handle covered outdoor spaces with confidence.
Best for
- Covered patios and porches where a downrod mount allows for higher ceilings
- Large living rooms and great rooms needing high-volume air movement
- Sunrooms and enclosed porches with humidity exposure
- Bedrooms and home offices where quiet, energy-efficient cooling is a priority
- Smart-home setups - control via Wi-Fi, voice assistant, or the fanSync app
Not ideal for
- Directly exposed outdoor areas - this fan is damp rated, not wet rated, so it should not be rained on
- Small rooms under 12x12 ft - the 84-inch sweep is oversized for compact spaces
- Ceilings lower than 8 ft - the downrod adds height, so a flush mount may be better
How bright is it?
This fan does not include a light kit. It is compatible with an optional integrated 18-watt LED light kit (sold separately) that delivers 1600 lumens - about as bright as a 100W incandescent bulb - suitable for ambient lighting in a large room.
Light color and feel
With the optional light kit, you can choose from five color temperatures (2700K to 5000K), ranging from warm, cozy light to bright daylight. The 90 CRI rating ensures colors appear vivid and accurate, ideal for living spaces and kitchens.
Sizing and fit
This downrod fan measures 84 inches in blade sweep and hangs 19.69 inches from the ceiling with the included 12-inch downrod. The 84-inch blade span is best suited for rooms at least 18x18 feet.
Specifications
- Primary Finish: Brushed Satin Brass
- Blade Material: Buttonwood
- Blade Finish: Whiskey Wood
- Collection: Spitfire
- Blade Sweep: 84"
- Number of Blades: 3
- Blade Pitch: 14°
- Motor Type: DC
- Motor Size: 153 X 22
- Motor Reversible: True
- Number of Speeds: 6
- Reverse Switch Location: Control
- Cap Included: True
- Included Control: TR360
- Control Type: Handheld
- Voltage: 120V
- Avg CFM: 7610
- CFM High: 10688
- Avg Energy Use: 20W
- Max Slope: 20°
- Location Rating: Damp
- Safety Rating: UL Only Listed
- Warranty: Limited Lifetime Warranty
- Overall Dimensions: 84"(L)84"(W) x 19.69"(H)
- Housing Diameter: 8.07"
- Canopy Dimensions: 8.76"(Dia) x 2.52"(H)
- Downrod Length: 6, 12"
- Leadwire Length: 14 motor & 15 light"
- Ceiling to Bottom (No Light Kit): 13.69, 19.69"
- Item Weight: 19.98 lbs.
Frequently asked
Is the bulb included? No light kit is included with this fan. It is compatible with an optional integrated LED light kit (sold separately).
Is it dimmable, and what dimmer should I use? The fan speed is adjustable via the remote, and the optional light kit is dimmable. Use the included TR360 remote or the fanSync app for dimming.
Can I install this in a bathroom or outdoors? Yes, this fan is damp rated, making it suitable for covered outdoor areas, bathrooms, and laundry rooms. It should not be directly exposed to rain or water.
What's the warranty? Fanimation offers a Limited Lifetime Warranty for the original purchaser.
How does the downrod installation work? This fan includes both 6-inch and 12-inch downrods, and optional downrods up to 72 inches are available for higher ceilings.
