An 84-inch downrod smart ceiling fan with an integrated LED light kit, designed for large indoor and covered outdoor spaces like great rooms, covered patios, and sunrooms.

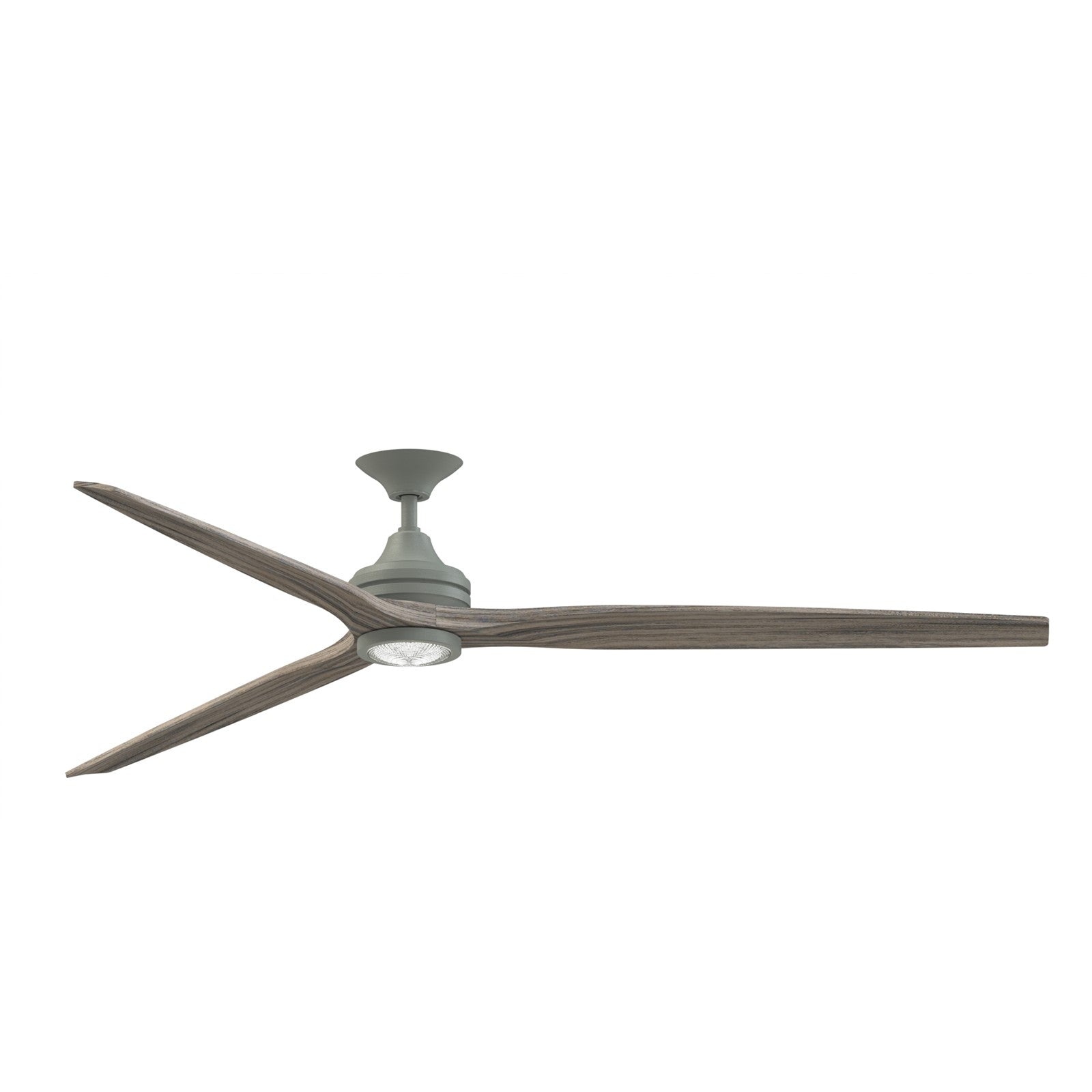

The Spitfire DC Custom pairs a streamlined Antique Graphite motor housing with three Weathered Wood blades for a modern, organic look. Its 6-speed DC motor delivers powerful, quiet airflow up to 10,688 CFM, while the integrated 18-watt LED light kit with CCT Select technology lets you shift from warm 2700K to bright 5000K. Control it all with the included TR360 handheld remote or your smart device via Wi-Fi fanSync. Damp rated for covered outdoor use, this fan brings efficient comfort and customizable lighting to expansive spaces.
Best for
- Great rooms and open-concept living areas 20x20 ft or larger, where high airflow is needed
- Covered patios, porches, and sunrooms, thanks to its damp rating

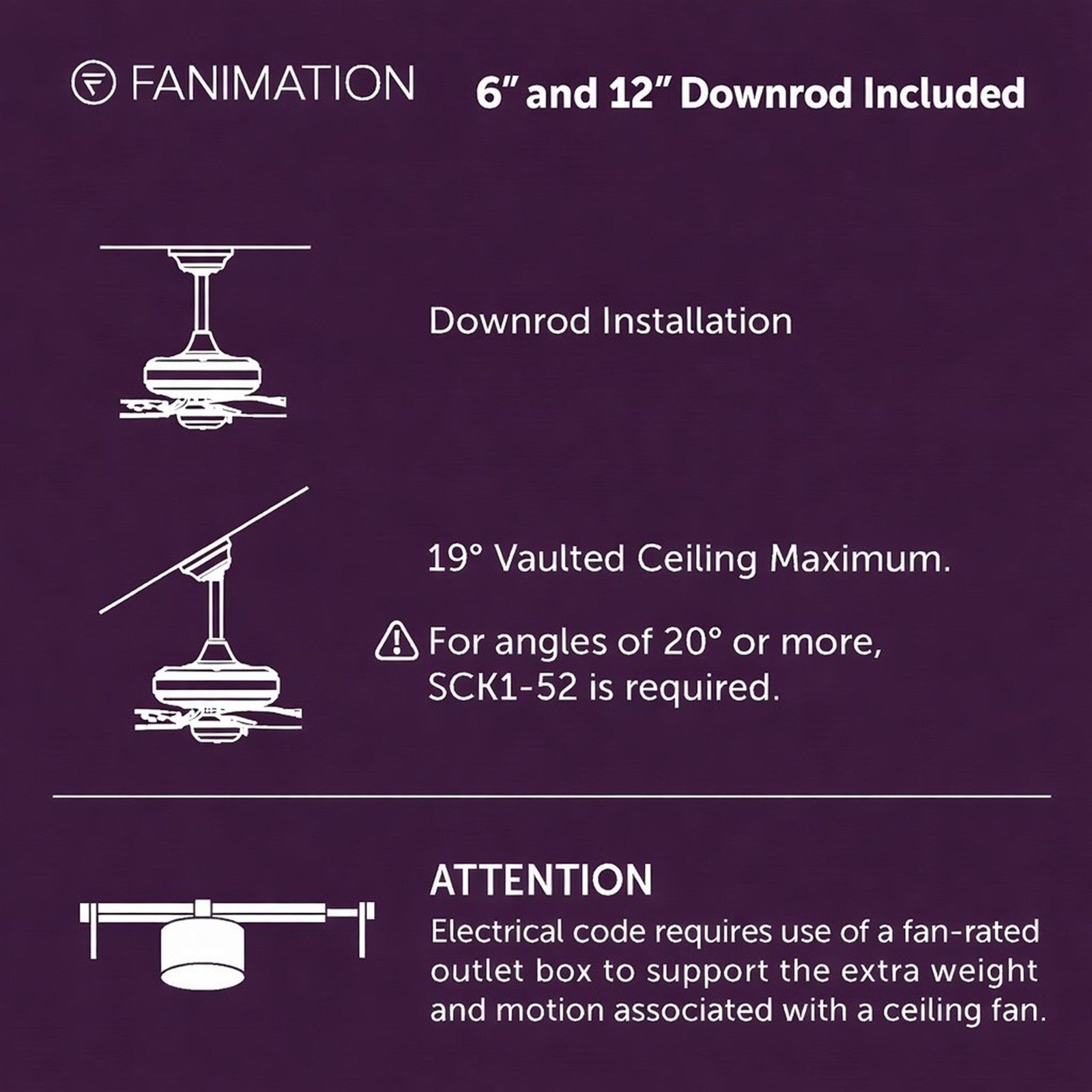

- Rooms with standard or slightly sloped ceilings (up to 20°), using the included 6-inch or 12-inch downrods
- Large bedrooms or home offices needing quiet, energy-efficient air movement
- Smart-home setups, with Wi-Fi control via the fanSync app and voice assistants
Not ideal for
- Outdoor areas directly exposed to rain or water - this fan is damp rated, not wet rated
- Small rooms under 12x12 ft, where the 84-inch sweep may be overpowering
- Low ceilings under 8 feet, as the downrod adds height
How bright is it?
The integrated LED light kit emits 1600 lumens - roughly equivalent to a 100W incandescent bulb - making it suitable as a primary light source for large rooms. With CCT Select, you can adjust the color temperature from warm to daylight to suit the mood.
Light color and feel
Choose from five color temperatures: 2700K (warm white), 3000K (soft white), 3500K (neutral), 4000K (cool white), and 5000K (daylight). With a CRI of 90, colors appear vivid and accurate. The light is dimmable via the remote or app, and the included Fresnel and frosted shades let you customize the glow.
Sizing and fit

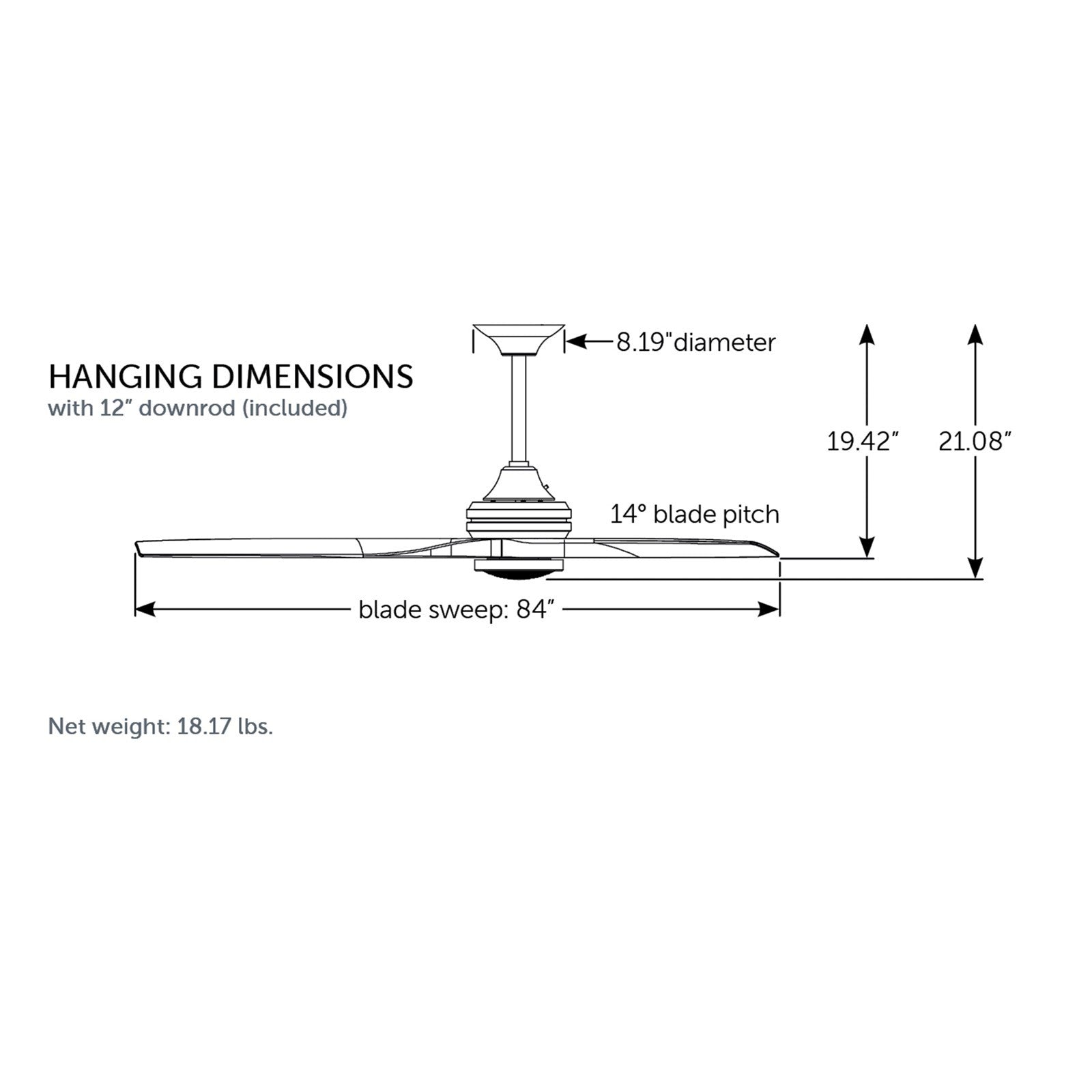

This fan has an 84-inch blade sweep and overall dimensions of 84 x 84 x 19.42 inches with the included 12-inch downrod. The downrod lengths are 6 and 12 inches, and optional downrods up to 72 inches are available to achieve the recommended hanging height of 7 to 9 feet. The housing diameter is 8.07 inches, and the canopy is 8.76 inches in diameter.
Specifications
- Primary Finish: Antique Graphite
- Blade Material: Buttonwood
- Blade Finish: Weathered Wood
- Shade Finish: Fresnel and Frosted
- Collection: Spitfire
- Blade Sweep: 84"
- Number of Blades: 3
- Blade Pitch: 14°
- Motor Type: DC
- Motor Size: 153 X 22
- Motor Reversible: True
- Number of Speeds: 6
- Reverse Switch Location: Control
- Light Kit Included: True
- Cap Included: True
- Included Control: TR360
- Control Type: Handheld
- 1 Bulb(s)
- Bulb Type: LED Module
- Bulb Base: Connector Pin
- Bulb Max Wattage: 18W
- Color Temperature: 2700, 3000, 3500, 4000, 5000K
- CRI: 90
- Lumens: 1600
- Voltage: 120V
- Avg CFM: 7610
- CFM High: 10688
- Avg Energy Use: 20W
- Max Slope: 20°
- Location Rating: Damp
- Safety Rating: UL Only Listed
- Warranty: Limited Lifetime Warranty
Frequently asked
Is the bulb included? Yes, the LED module is integrated and included.
Is it dimmable, and what dimmer should I use? Yes, the light is dimmable via the included TR360 remote or the fanSync app. No wall dimmer is required.
Can I install this in a bathroom or outdoors? This fan is damp rated, so it's suitable for bathrooms and covered outdoor areas, but not for direct rain exposure.
What's the warranty? Fanimation offers a Limited Lifetime Warranty for the original purchaser.
Does this fan work with sloped ceilings? Yes, this downrod version is designed for flat or sloped ceilings up to 20°.
