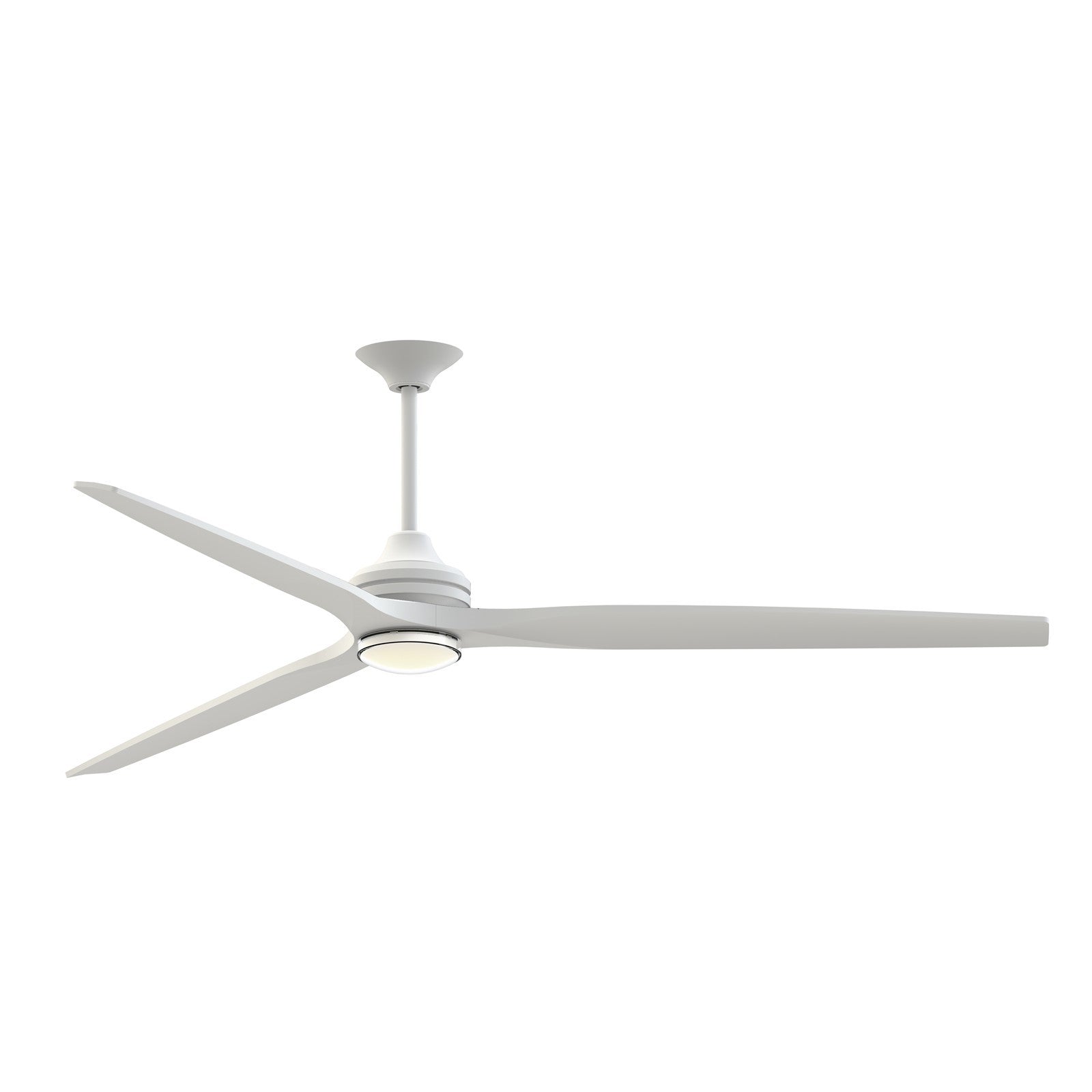

An 84-inch downrod smart ceiling fan with an integrated LED light kit featuring a double-walled marine-grade glass shade, finished in matte white with matte white blades.
The Spitfire DC Custom combines a sleek matte white motor housing with three matte white blades for a clean, modern look. Its 6-speed DC motor delivers powerful airflow up to 10,688 CFM while remaining quiet and energy-efficient. The integrated 24-watt LED light kit features CCT Select technology, letting you shift from warm 2700K to bright 5000K, and the double-walled glass shade is constructed with marine-grade materials for enhanced durability. The included TR360 remote and Wi-Fi fanSync app provide convenient control.
Best for
- Covered patios, porches, and sunrooms where damp-rated fixtures are required
- Large living rooms and great rooms with ceilings 9 feet or higher
- Bedrooms and home offices needing quiet, adjustable airflow with smart control
- Spaces with standard 8-9 foot ceilings using the included 6-inch downrod
- Rooms with sloped ceilings up to 20 degrees
Not ideal for
- Outdoor areas exposed directly to rain or water - this fan is damp-rated, not wet-rated
- Small rooms under 12x12 feet where an 84-inch sweep would overwhelm the space
- Rooms with ceilings under 8 feet if you prefer a flush mount for maximum clearance
How bright is it?
2000 lumens - about as bright as a 150W incandescent bulb, providing ample ambient light for large rooms. The integrated LED module is dimmable and offers a wide range of brightness levels.
Light color and feel
Selectable color temperatures from 2700K (warm white) to 5000K (daylight) let you match the mood - from cozy evenings to crisp, energizing brightness. With a CRI of 90, colors appear vivid and natural. The double-walled glass shade diffuses light softly and is built to withstand outdoor conditions.
Sizing and fit
With an 84-inch blade sweep and a downrod mount (6-inch and 12-inch downrods included), this fan suits ceilings from 8 to 10 feet. The overall height is 22 inches with the 12-inch downrod and light kit. Optional downrods up to 72 inches are available for higher ceilings. The canopy is 8.76 inches in diameter, and the fan weighs 20.97 lbs.
Specifications
- Primary Finish: Matte White
- Blade Material: Buttonwood
- Blade Finish: Matte White
- Shade Finish: Clear
- Collection: Spitfire
- Blade Sweep: 84"
- Number of Blades: 3
- Blade Pitch: 14°
- Motor Type: DC
- Motor Size: 153 X 22
- Motor Reversible: True
- Number of Speeds: 6
- Reverse Switch Location: Control
- Light Kit Included: True
- Cap Included: True
- Included Control: TR360
- Control Type: Handheld
- 1 Bulb(s)
- Bulb Type: LED Module
- Bulb Base: Connector Pin
- Bulb Max Wattage: 24W
- Color Temperature: 2700, 3000, 3500, 4000, 5000K
- CRI: 90
- Lumens: 2000
- Voltage: 120V
- Avg CFM: 7610
- CFM High: 10688
- Avg Energy Use: 20W
- Max Slope: 20°
- Location Rating: Damp
- Safety Rating: UL Only Listed
- Warranty: Limited Lifetime Warranty
Frequently asked
Is the bulb included? Yes, an integrated LED module is included and rated for 24W.
Is it dimmable, and what dimmer should I use? Yes, the light is dimmable via the included TR360 remote or the fanSync app. No wall dimmer is required.
Can I install this in a bathroom or outdoors? This fan is damp-rated, so it's suitable for bathrooms and covered outdoor areas, but it should not be directly exposed to rain or water. The marine-grade light kit adds extra durability.
What's the warranty? Fanimation offers a Limited Lifetime Warranty for the original purchaser.
What makes the marine light kit different? The double-walled glass shade and marine-grade materials are designed to withstand harsh outdoor conditions, making it more durable than standard light kits.
