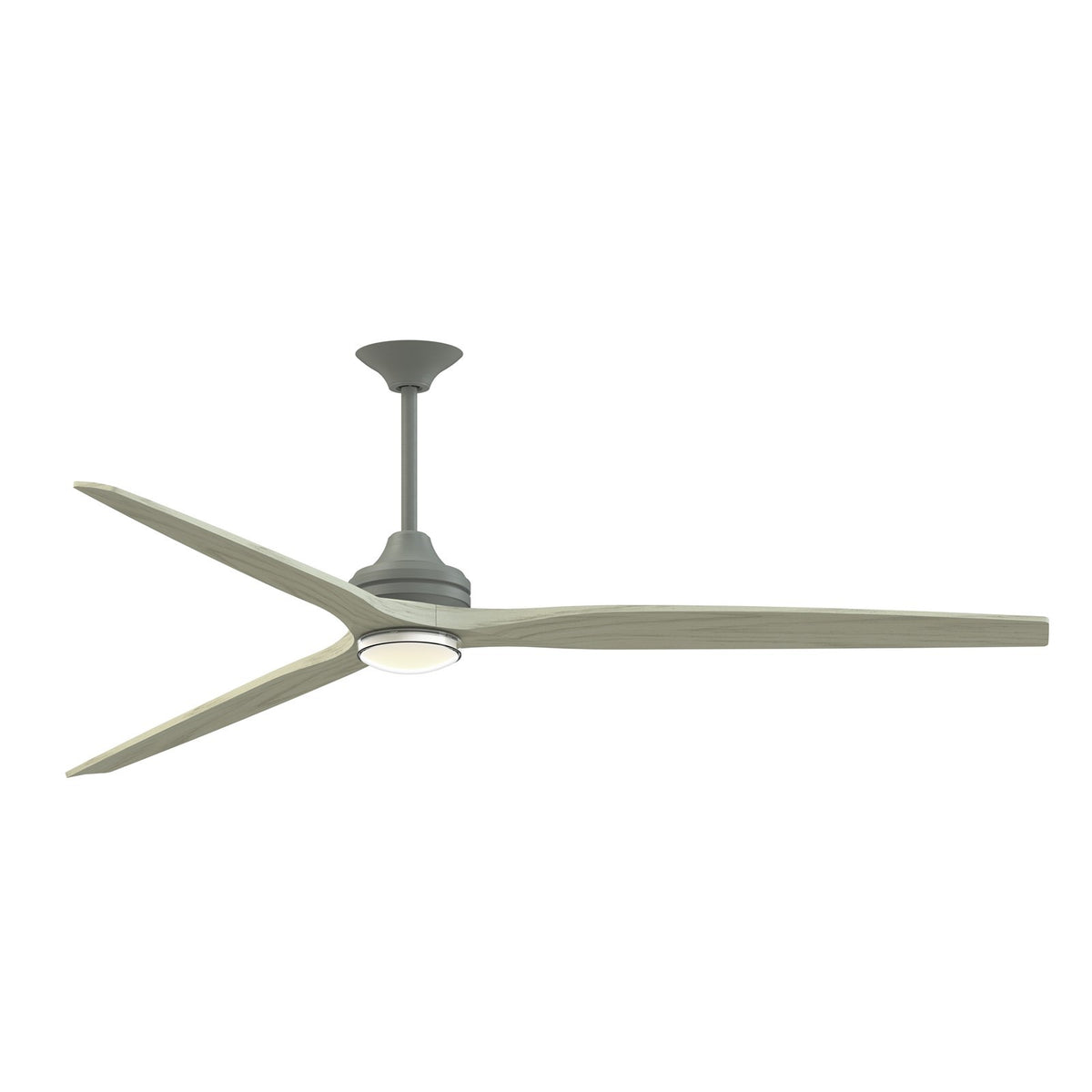

An 84-inch downrod smart ceiling fan with an integrated LED light kit featuring a double-walled marine-grade glass shade, finished in antique graphite with Light Oak blades, for large covered outdoor and indoor spaces.
The Spitfire DC Custom is a powerful, stylish fan designed for expansive areas. The antique graphite motor housing is paired with three Light Oak blades, crafted from buttonwood, for a clean, airy look. This version includes an integrated 24-watt LED light kit with CCT Select technology, offering five color temperatures from warm to cool. The double-walled glass shade is constructed with marine-grade materials, making it suitable for outdoor wet locations. With Wi-Fi enabled fanSync technology and a handheld remote, you get full control over fan speed, light color, and dimming from anywhere.
Best for
- Covered patios, porches, and sunrooms where damp-rated fixtures are required
- Great rooms, open-plan living areas, and large bedrooms with ceilings at least 9 ft high
- Rooms with standard or slightly sloped ceilings (up to 20 degrees) - downrods included
- Smart-home setups - control via the fanSync app, voice assistants, or the included remote
- Year-round comfort with a reversible DC motor for summer and winter airflow
Not ideal for
- Outdoor areas directly exposed to rain or water - this fan is damp-rated, not wet-rated, despite the marine-grade light kit
- Small rooms under 12 x 12 ft where an 84-inch sweep would overpower the space
- Low ceilings under 8 ft - the downrod adds height, so a flush mount may be better
How bright is it?
The integrated LED module produces 2000 lumens - roughly equivalent to a 150-watt incandescent bulb. This is sufficient for ambient lighting in a large room, and the light is dimmable via the included remote.
Light color and feel
Choose from five color temperatures - 2700K (warm white), 3000K (soft white), 3500K (neutral), 4000K (cool white), and 5000K (daylight). With a CRI of 90, colors appear vibrant and true-to-life. The light is dimmable, and the included remote allows infinite dimming control.
Sizing and fit

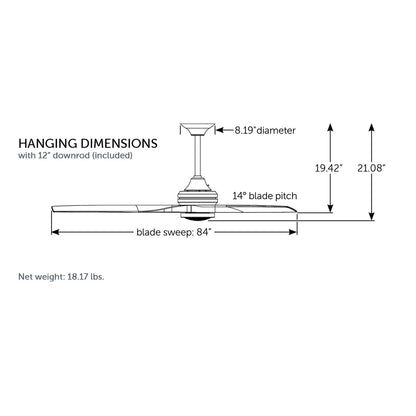

This fan has an 84-inch blade sweep and measures 84 x 84 x 22 inches with the included 12-inch downrod. It includes both 6-inch and 12-inch downrods, and optional downrods up to 72 inches are available to achieve the recommended hanging height of 7 to 9 feet. The canopy is 8.76 inches in diameter and 2.52 inches high, and the housing is 8.07 inches in diameter.
Specifications
- Primary Finish: Antique Graphite
- Blade Material: Buttonwood
- Blade Finish: Light Oak
- Shade Finish: Clear
- Collection: Spitfire
- Blade Sweep: 84"
- Number of Blades: 3
- Blade Pitch: 14°
- Motor Type: DC
- Motor Size: 153 X 22
- Motor Reversible: True
- Number of Speeds: 6
- Reverse Switch Location: Control
- Light Kit Included: True
- Cap Included: True
- Included Control: TR360
- Control Type: Handheld
- 1 Bulb(s)
- Bulb Type: LED Module
- Bulb Base: Connector Pin
- Bulb Max Wattage: 24W
- Color Temperature: 2700, 3000, 3500, 4000, 5000K
- CRI: 90
- Lumens: 2000
- Voltage: 120V
- Avg CFM: 7610
- CFM High: 10688
- Avg Energy Use: 20W
- Max Slope: 20°
- Location Rating: Damp
- Safety Rating: UL Only Listed
- Warranty: Limited Lifetime Warranty
Frequently asked
Is the bulb included? Yes, the integrated LED module is included and cannot be replaced.
Is it dimmable, and what dimmer should I use? Yes, the light is dimmable via the included TR360 remote or the fanSync app. No wall dimmer is required.
Can I install this in a bathroom or outdoors? This fan is damp-rated, so it can be installed in bathrooms and covered outdoor areas, but it should not be directly exposed to rain or water. The light kit is marine-grade for wet locations, but the fan itself is not wet-rated.
What's the warranty? Fanimation offers a Limited Lifetime Warranty for the original purchaser.
What is the difference between the standard and double-walled light kits? The double-walled glass shade is more durable and constructed with marine-grade materials, making it suitable for outdoor wet locations.
