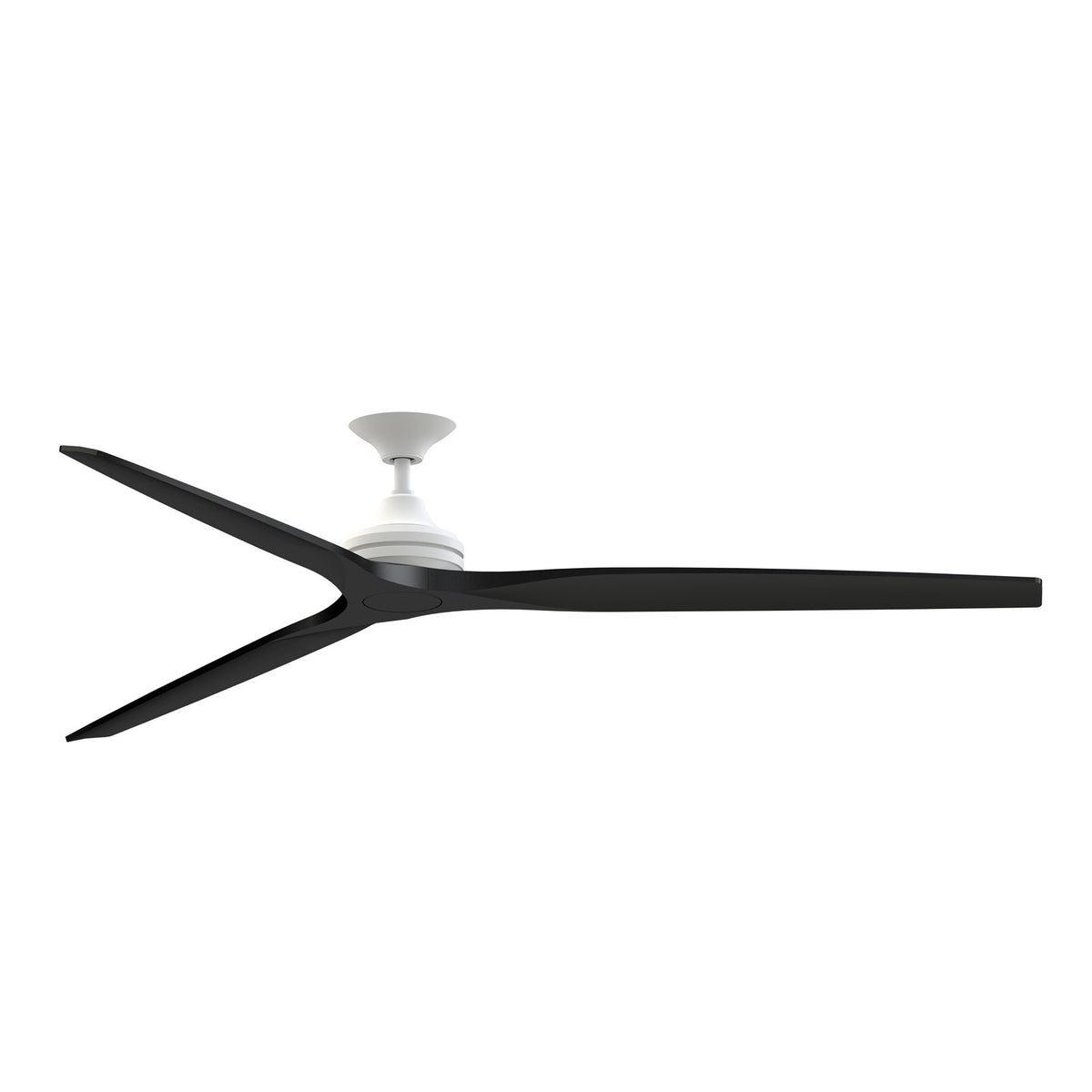

An 84-inch smart ceiling fan for very large covered patios, porches, and great rooms, finished in matte white with black blades.
The Spitfire DC Custom pairs a streamlined matte white motor with three black buttonwood blades for a bold, contemporary look that suits both indoor and covered outdoor spaces. Its 6-speed DC motor delivers powerful yet quiet airflow up to 10,688 CFM, and the included TR360 remote plus Wi-Fi fanSync app control make it easy to adjust from anywhere. Damp rated for covered outdoor use, this fan is built to handle humidity while keeping your space comfortable year-round.
Best for
- Covered patios and porches, providing strong airflow for very large seating areas
- Great rooms and open-plan living areas with ceilings at least 8 feet high
- Sunrooms and screened porches where moisture resistance matters
- Bedrooms and home offices needing quiet, energy-efficient air movement
- Rooms with standard 8-9 foot ceilings using the included downrods
Not ideal for
- Spaces with ceilings under 8 feet if you prefer a flush mount for extra clearance
- Areas directly exposed to rain or water - this fan is damp rated, not wet rated
- Small rooms under 14x14 feet where an 84-inch sweep may be overpowering
How bright is it?
This fan does not include a light kit, but it is compatible with an optional integrated 18-watt LED light kit (sold separately) that provides 1,600 lumens - roughly equivalent to a 100-watt incandescent bulb, suitable for ambient lighting in a large room.
Light color and feel
If you add the optional light kit, you can choose from five color temperatures - 2700K (warm white) to 5000K (daylight) - to match your mood and decor. The kit is dimmable and has a CRI of 90 for accurate color rendering.
Sizing and fit
This downrod fan has a blade sweep of 84 inches and an overall height of 19.69 inches with the included 6-inch downrod (12-inch also included). The canopy is 8.76 inches in diameter, and the fan weighs 19.98 lbs. It is designed for flat or slightly sloped ceilings (up to 20°).
Specifications
- Primary Finish: Matte White
- Blade Material: Buttonwood
- Blade Finish: Black
- Collection: Spitfire
- Blade Sweep: 84"
- Number of Blades: 3
- Blade Pitch: 14°
- Motor Type: DC
- Motor Size: 153 X 22
- Motor Reversible: True
- Number of Speeds: 6
- Reverse Switch Location: Control
- Cap Included: True
- Included Control: TR360
- Control Type: Handheld
- Voltage: 120V
- Avg CFM: 7610
- CFM High: 10688
- Avg Energy Use: 20W
- Max Slope: 20°
- Location Rating: Damp
- Safety Rating: UL Only Listed
- Warranty: Limited Lifetime Warranty
- Overall Dimensions: 84"(L) x 84"(W) x 19.69"(H)
- Housing Diameter: 8.07"
- Canopy Dimensions: 8.76"(Dia) x 2.52"(H)
- Downrod Length: 6, 12"
- Leadwire Length: 14 motor & 15 light"
- Ceiling to Bottom (No Light Kit): 13.69, 19.69"
- Item Weight: 19.98 lbs.
Frequently asked
Is the bulb included? This fan does not include a light kit or bulb. It is compatible with an optional integrated LED light kit (sold separately).
Is it dimmable, and what dimmer should I use? The fan speed is controlled via the included TR360 remote. If you add the optional light kit, it is dimmable via the remote or app.
Can I install this in a bathroom or outdoors? Yes, this fan is damp rated for covered outdoor areas and humid indoor spaces like bathrooms and laundry rooms, but it should not be directly exposed to rain or water.
What's the warranty? Fanimation offers a Limited Lifetime Warranty for the original purchaser.
Does this fan work with sloped ceilings? Yes, it is designed for flat or slightly sloped ceilings up to 20°.
