An 84-inch downrod smart ceiling fan with a black motor and whiskey wood blades, designed for large indoor and covered outdoor spaces.

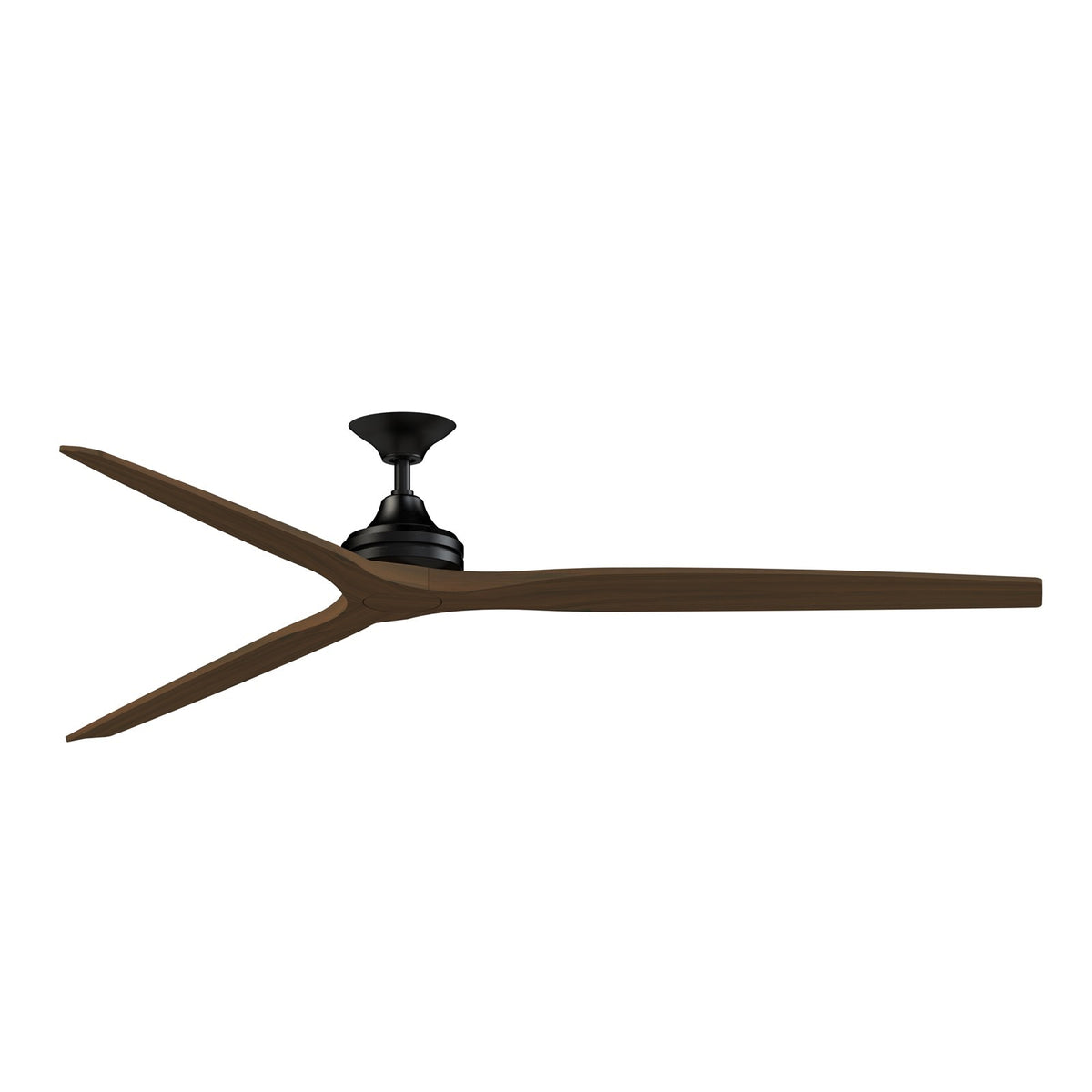

The Spitfire DC Custom combines a sleek black finish with rich whiskey wood blades, delivering powerful airflow up to 10,688 CFM from its quiet 6-speed DC motor. This version is compatible with an optional LED light kit, and the included remote and Wi-Fi connectivity make control effortless. Damp rated for covered outdoor use, this fan brings smart comfort to patios, porches, and great rooms.
Best for
- Covered patios and porches, providing a cooling breeze without direct rain exposure
- Great rooms and open-plan living areas with ceilings of 9 feet or higher
- Sunrooms and three-season rooms where humidity is a concern
- Bedrooms and home offices needing quiet, energy-efficient airflow
- Rooms with sloped ceilings up to 20 degrees, using the included downrods
Not ideal for
- Outdoor areas directly exposed to rain or water - this fan is damp rated, not wet rated
- Small rooms under 12x12 feet where an 84-inch sweep is oversized
- Low ceilings under 8 feet, as the downrod adds height
How bright is it?
This fan does not include a light kit, but it is compatible with Fanimation's integrated 18-watt LED light kit (sold separately), which produces 1600 lumens - comparable to a 100W incandescent bulb.
Light color and feel
If you add the optional light kit, you can choose from five color temperatures: 2700K (warm white), 3000K (soft white), 3500K (neutral), 4000K (cool white), and 5000K (daylight). The light is dimmable via the included remote or app.
Sizing and fit
This fan measures 84 inches in diameter and hangs 19.69 inches from the ceiling with the included 6-inch downrod. It is designed for flat or slightly sloped ceilings (up to 20 degrees) and works best in rooms with 9-foot or higher ceilings.
Specifications
- Primary Finish: Black
- Blade Material: Buttonwood
- Blade Finish: Whiskey Wood
- Collection: Spitfire
- Blade Sweep: 84"
- Number of Blades: 3
- Blade Pitch: 14°
- Motor Type: DC
- Motor Size: 153 X 22
- Motor Reversible: True
- Number of Speeds: 6
- Reverse Switch Location: Control
- Cap Included: True
- Included Control: TR360
- Control Type: Handheld
- Voltage: 120V
- Avg CFM: 7610
- CFM High: 10688
- Avg Energy Use: 20W
- Max Slope: 20°
- Location Rating: Damp
- Safety Rating: UL Only Listed
- Warranty: Limited Lifetime Warranty
- Overall Dimensions: 84"(L)84"(W) x 19.69"(H)
- Housing Diameter: 8.07"
- Canopy Dimensions: 8.76"(Dia) x 2.52"(H)
- Downrod Length: 6, 12"
- Leadwire Length: 14 motor & 15 light"
- Ceiling to Bottom (No Light Kit): 13.69, 19.69"
- Item Weight: 19.98 lbs.
Frequently asked
Is the bulb included? No, this fan does not include a light kit. The light kit is sold separately.
Is it dimmable, and what dimmer should I use? If you add the optional light kit, it is dimmable via the included TR360 remote or the fanSync app. No wall dimmer is required.
Can I install this in a bathroom or outdoors? It is damp rated, so it can be used in bathrooms and covered outdoor areas, but not in direct rain or wet locations.
What's the warranty? Limited Lifetime Warranty for the original purchaser.
Does this fan work with voice assistants? Yes, it is compatible with Alexa and Google Assistant via the fanSync app.
