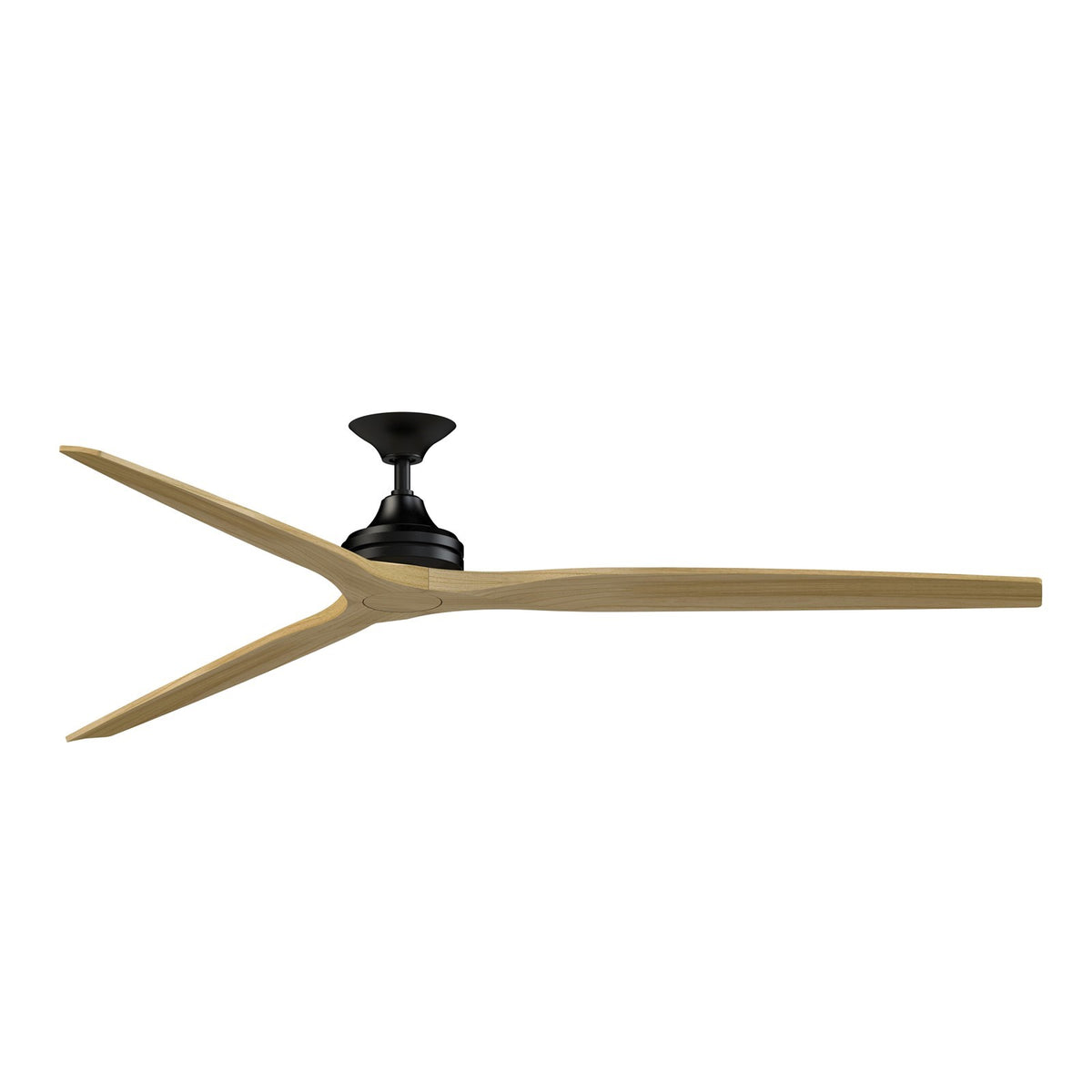

An 84-inch smart ceiling fan from Fanimation's Spitfire DC Custom collection, finished in black with natural buttonwood blades, designed for large covered outdoor and indoor spaces.
The Spitfire DC Custom pairs a sleek black motor with three natural buttonwood blades, delivering powerful yet quiet airflow up to 10,688 CFM from its 6-speed DC motor. This downrod version includes both 6-inch and 12-inch downrods for flexible installation. It is compatible with an integrated 18-watt LED light kit (sold separately) featuring CCT Select technology for five color temperatures. The included TR360 handheld remote and Wi-Fi fanSync connectivity put full control at your fingertips.
Best for
- Covered patios and porches, where damp-rated construction handles humidity without direct rain exposure
- Large living rooms and great rooms (over 18 x 20 ft) needing high-volume air movement
- Sunrooms and three-season rooms, with the natural wood blades adding warmth
- Bathrooms and laundry rooms where moisture resistance is a priority
- Smart-home setups, with control via the fanSync app, voice assistants, or the included remote
Not ideal for
- Outdoor areas directly exposed to rain or water - this fan is damp-rated, not wet-rated
- Small rooms under 12 x 12 ft, where the 84-inch sweep may be overpowering
- Rooms with ceilings under 8 feet, as the downrod adds height (overall height is 19.69 inches)
How bright is it?
This fan does not include a light kit. It is compatible with an optional integrated 18-watt LED light kit that delivers 1600 lumens - roughly equivalent to a 100-watt incandescent bulb - providing ample illumination for most living spaces.
Light color and feel
When paired with the optional light kit, you can select from five color temperatures - 2700K (warm white), 3000K (soft white), 3500K (neutral), 4000K (cool white), and 5000K (daylight) - to match your mood and decor. The high CRI of 90 ensures colors appear vibrant and true.
Sizing and fit
This fan has an 84-inch blade sweep and overall dimensions of 84 x 84 x 19.69 inches. It includes both 6-inch and 12-inch downrods, allowing you to adjust the hanging height. The recommended hanging height is 7 to 9 feet from the floor. It weighs 19.98 pounds.
Specifications
- Primary Finish: Black
- Blade Material: Buttonwood
- Blade Finish: Natural
- Collection: Spitfire
- Blade Sweep: 84"
- Number of Blades: 3
- Blade Pitch: 14°
- Motor Type: DC
- Motor Size: 153 X 22
- Motor Reversible: True
- Number of Speeds: 6
- Reverse Switch Location: Control
- Cap Included: True
- Included Control: TR360
- Control Type: Handheld
- Voltage: 120V
- Avg CFM: 7610
- CFM High: 10688
- Avg Energy Use: 20W
- Max Slope: 20°
- Location Rating: Damp
- Safety Rating: UL Only Listed
- Warranty: Limited Lifetime Warranty
Frequently asked
Is the bulb included? No, this fan does not include a light kit. It is compatible with an optional integrated 18-watt LED light kit (sold separately).
Is it dimmable, and what dimmer should I use? The optional light kit is dimmable, and dimming is controlled via the included TR360 remote or the fanSync app. No wall dimmer is required.
Can I install this in a bathroom or outdoors? Yes, this fan is damp-rated, making it suitable for bathrooms, covered patios, porches, sunrooms, and laundry rooms. It should not be directly exposed to rain or water.
What's the warranty? Fanimation offers a Limited Lifetime Warranty for the original purchaser, covering the motor. Contact Fanimation Tech Support at 1-888-567-2055 for assistance.
Can this fan be used on sloped ceilings? Yes, this downrod version supports sloped ceilings up to 20 degrees. Optional downrods up to 72 inches are available for higher ceilings.
