A flush-mount smart ceiling fan with an integrated LED light kit, designed for covered outdoor and indoor spaces like patios, porches, and living rooms.

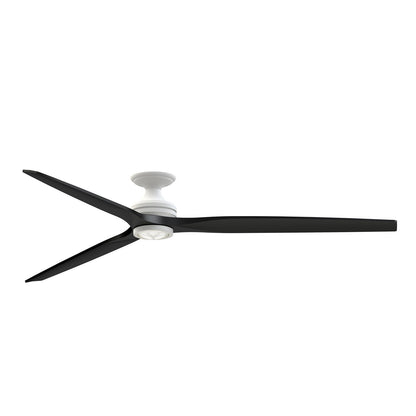

The Spitfire DC Custom combines a sleek Matte White motor with three Black Buttonwood blades, delivering powerful airflow up to 10,688 CFM from its quiet 6-speed DC motor. The integrated 18-watt LED light kit features CCT Select technology, letting you choose from five color temperatures—2700K to 5000K—to match your mood. Control it all with the included TR360 remote or via Wi-Fi with the fanSync app and voice assistants. Damp rated for covered outdoor use, this fan brings smart comfort and flexible lighting to any space.
Best for
- Covered patios and porches, where damp-rated construction handles humidity without direct rain exposure
- Large living rooms and great rooms (15x20 ft or larger) needing high airflow up to 10,688 CFM
- Sunrooms and three-season rooms with low ceilings, thanks to the flush mount design
- Bathrooms and laundry rooms where moisture resistance is a plus
- Smart home setups, with Wi-Fi control via fanSync app and voice assistants
Not ideal for
- Outdoor areas directly exposed to rain or water—this fan is damp rated, not wet rated
- Rooms with ceilings under 8 ft if you prefer a downrod mount, though flush mount works well
- Spaces where you need a light with a single fixed color temperature—CCT Select offers five options
How bright is it?
The integrated LED light kit produces 1600 lumens—comparable to a 100W incandescent bulb—making it suitable for ambient lighting in medium to large rooms. It's bright enough for everyday use but not a replacement for task lighting.
Light color and feel
With CCT Select, you can choose from 2700K (warm white), 3000K (soft white), 3500K (neutral), 4000K (cool white), and 5000K (daylight). This flexibility lets you shift from cozy evenings to bright, energizing light. The high CRI of 90 ensures colors appear natural and vibrant.
Sizing and fit
This 84-inch fan is ideal for large rooms, with an overall height of 11.33 inches when flush-mounted. The canopy is 7.85 inches in diameter, and the housing is 8.07 inches. It's designed for flat ceilings; for sloped ceilings, consider the downrod version.
Specifications
- Primary Finish: Matte White
- Blade Material: Buttonwood
- Blade Finish: Black
- Shade Finish: Fresnel and Frosted
- Collection: Spitfire
- Blade Sweep: 84"
- Number of Blades: 3
- Blade Pitch: 14°
- Motor Type: DC
- Motor Size: 153 X 22
- Motor Reversible: True
- Number of Speeds: 6
- Reverse Switch Location: Control
- Light Kit Included: True
- Cap Included: True
- Included Control: TR360
- Control Type: Handheld
- 1 Bulb(s)
- Bulb Type: LED Module
- Bulb Base: Connector Pin
- Bulb Max Wattage: 18W
- Color Temperature: 2700, 3000, 3500, 4000, 5000K
- CRI: 90
- Lumens: 1600
- Voltage: 120V
- Avg CFM: 7610
- CFM High: 10688
- Avg Energy Use: 20W
- Location Rating: Damp
- Safety Rating: UL Only Listed
- Warranty: Limited Lifetime Warranty
Frequently asked
Is the bulb included? Yes, the integrated LED module is included and cannot be replaced.
Is it dimmable, and what dimmer should I use? Yes, the light is dimmable via the included TR360 remote or the fanSync app. No wall dimmer is needed.
Can I install this in a bathroom or outdoors? This fan is damp rated, so it's suitable for bathrooms and covered outdoor areas, but not for direct rain exposure.
What's the warranty? Fanimation offers a Limited Lifetime Warranty for the original purchaser.
How does the CCT Select technology work? You can cycle through five color temperatures using the remote or app, allowing you to customize the light from warm to cool.
