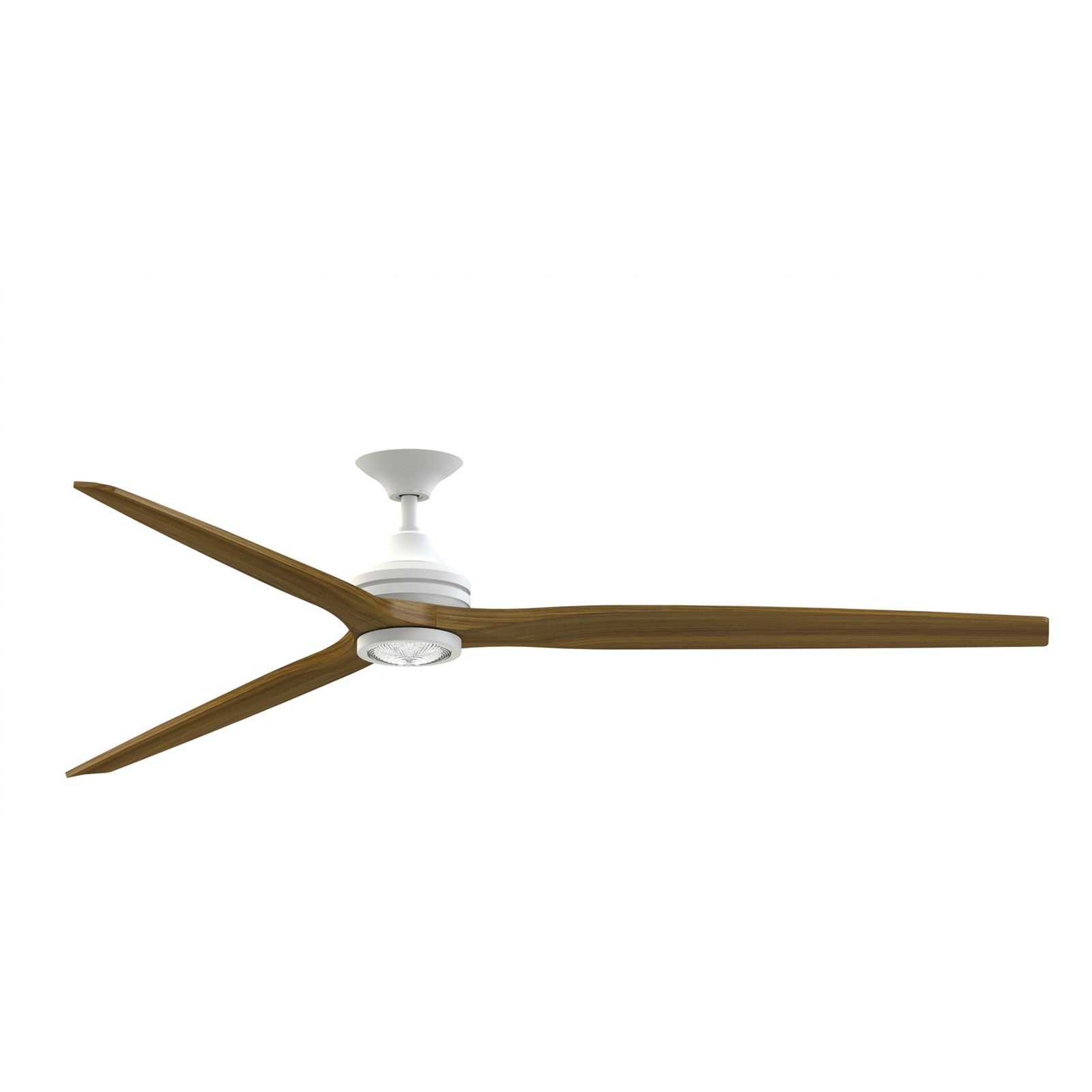

An 84-inch smart ceiling fan with an integrated LED light kit, designed for large covered outdoor and indoor living spaces, finished in matte white with Koa wood blades.
The Spitfire DC Custom pairs a sleek matte white motor with three Koa wood blades to deliver powerful, quiet airflow up to 10,688 CFM. This version includes an integrated LED light kit with CCT Select technology, letting you shift from warm to daylight. With Wi-Fi fanSync, you can control fan speed, light dimming, and color temperature from your smartphone or voice assistant. Damp rated for covered outdoor use, it brings smart comfort to patios, porches, and great rooms.
Best for
- Covered patios and porches, providing powerful airflow and integrated lighting for evening entertaining
- Great rooms and open-plan living areas with ceilings 9 ft or higher
- Sunrooms and three-season rooms where humidity and moisture are a concern
- Large bedrooms or home offices needing both air movement and adjustable lighting
- Outdoor kitchens or covered dining areas, with the included light kit providing versatile illumination
Not ideal for
- Directly exposed outdoor areas without a roof or cover - this fan is damp rated, not wet rated, and should not be exposed to rain
- Rooms with ceilings under 8 ft unless using the flush-mount option (not included with this model)
- Small spaces under 12x12 ft where an 84-inch sweep would be overpowering
How bright is it?
This light kit delivers 1600 lumens - roughly equivalent to a 100W incandescent bulb - making it bright enough to illuminate a large living area or outdoor entertaining space. It's not a replacement for task lighting, but it provides generous ambient light.
Light color and feel
With CCT Select technology, you can choose from five color temperatures: 2700K (warm white), 3000K (soft white), 3500K (neutral), 4000K (cool white), and 5000K (daylight). This lets you go from a cozy, golden glow to crisp, energizing daylight. With a CRI of 90, colors appear vivid and accurate, ideal for spaces where you want to showcase decor or artwork.
Sizing and fit
This fan spans 84 inches (7 ft) and is best for large rooms at least 18x18 ft. It includes 6-inch and 12-inch downrods, and optional downrods up to 72 inches are available to achieve the recommended 7-9 ft hanging height. The overall height with the light kit is 19.42 inches from the ceiling. It fits flat or sloped ceilings up to 20 degrees.
Specifications
- Primary Finish: Matte White
- Blade Material: Wood
- Blade Finish: Koa
- Shade Finish: Fresnel and Frosted
- Collection: Spitfire
- Blade Sweep: 84"
- Number of Blades: 3
- Blade Pitch: 14°
- Motor Type: DC
- Motor Size: 153 X 22
- Motor Reversible: True
- Number of Speeds: 6
- Reverse Switch Location: Control
- Light Kit Included: True
- Cap Included: True
- Included Control: TR360
- Control Type: Handheld
- 1 Bulb(s)
- Bulb Type: LED Module
- Bulb Base: Connector Pin
- Bulb Max Wattage: 18W
- Color Temperature: 2700, 3000, 3500, 4000, 5000K
- CRI: 90
- Lumens: 1600
- Voltage: 120V
- Avg CFM: 7610
- CFM High: 10688
- Avg Energy Use: 20W
- Max Slope: 20°
- Location Rating: Damp
- Safety Rating: UL Only Listed
- Warranty: Limited Lifetime Warranty
Frequently asked
Is the bulb included? Yes, the integrated LED module is included and rated for 18W.
Is it dimmable, and what dimmer should I use? Yes, the light is dimmable via the included TR360 remote or the fanSync app. No wall dimmer is needed.
Can I install this in a bathroom or outdoors? It is damp rated, so it's suitable for covered outdoor areas and bathrooms with adequate ventilation, but not for direct rain exposure.
What's the warranty? Limited Lifetime Warranty for the original purchaser.
What shade options are included? Both fresnel and frosted shades are included, allowing you to choose between a more focused or diffused light distribution.
