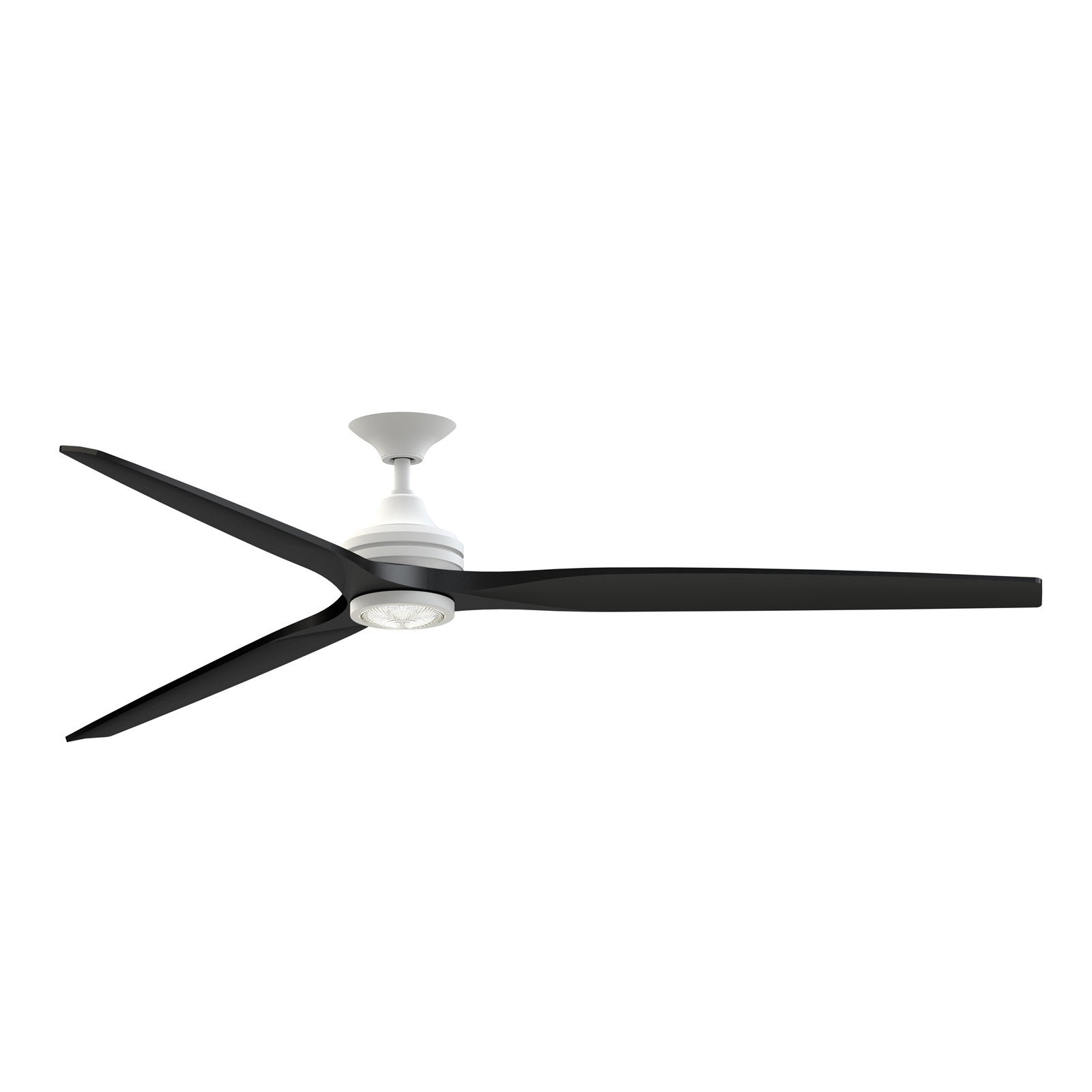

A smart, damp-rated 84-inch ceiling fan with an integrated LED light kit, designed for covered outdoor and large indoor spaces.
The Spitfire DC Custom pairs a sleek Matte White motor with three Black Buttonwood blades, delivering powerful airflow up to 10,688 CFM from its quiet 6-speed DC motor. The integrated LED light kit offers five selectable color temperatures (2700K-5000K) with CCT Select technology, and includes both fresnel and frosted shades for versatile light diffusion. Control everything with the included TR360 remote or via Wi-Fi fanSync app and voice assistants.
Best for
- Covered patios and porches, where damp-rated construction handles humidity
- Large living rooms and great rooms needing high airflow (up to 10,688 CFM)
- Sunrooms and enclosed porches with 8-9 ft ceilings
- Bathrooms and laundry rooms with moisture exposure
- Smart home setups with Wi-Fi control via fanSync app
Not ideal for
- Directly exposed outdoor areas without a roof or cover - this fan is damp-rated, not wet-rated
- Rooms with ceilings under 8 ft if you need the full hanging length
- Small spaces under 100 sq ft where an 84-inch sweep is overpowering
How bright is it?
The integrated LED module produces 1600 lumens - comparable to a 100W incandescent bulb, bright enough for ambient lighting in large rooms. It's dimmable via the remote, so you can adjust from a soft glow to full brightness.
Light color and feel
Five CCT settings (2700K, 3000K, 3500K, 4000K, 5000K) let you choose from warm, cozy light to crisp daylight. With a CRI of 90, colors render accurately, making it suitable for art or task areas. The included fresnel and frosted shades let you choose between a clear or diffused light effect.
Sizing and fit
This 84-inch fan fits large rooms (15x15 ft or larger). It includes 6-inch and 12-inch downrods, with optional downrods up to 72 inches for higher ceilings. The overall height is 19.42 inches with the light kit (using the 6-inch downrod).
Specifications
- Primary Finish: Matte White
- Blade Material: Buttonwood
- Blade Finish: Black
- Shade Finish: Fresnel and Frosted
- Collection: Spitfire
- Blade Sweep: 84"
- Number of Blades: 3
- Blade Pitch: 14°
- Motor Type: DC
- Motor Size: 153 X 22
- Motor Reversible: True
- Number of Speeds: 6
- Reverse Switch Location: Control
- Light Kit Included: True
- Cap Included: True
- Included Control: TR360
- Control Type: Handheld
- 1 Bulb(s)
- Bulb Type: LED Module
- Bulb Base: Connector Pin
- Bulb Max Wattage: 18W
- Color Temperature: 2700, 3000, 3500, 4000, 5000K
- CRI: 90
- Lumens: 1600
- Voltage: 120V
- Avg CFM: 7610
- CFM High: 10688
- Avg Energy Use: 20W
- Max Slope: 20°
- Location Rating: Damp
- Safety Rating: UL Only Listed
- Warranty: Limited Lifetime Warranty
Frequently asked
Is the bulb included? Yes, the LED module is integrated and included.
Is it dimmable, and what dimmer should I use? Yes, it's dimmable via the included TR360 remote or fanSync app. No wall dimmer needed.
Can I install this in a bathroom or outdoors? It's damp-rated, so it's suitable for bathrooms and covered outdoor areas, but not for direct rain exposure.
What's the warranty? Limited Lifetime Warranty for the original purchaser.
What's the difference between the fresnel and frosted shades? The fresnel shade provides a clear, focused light, while the frosted shade diffuses light for a softer glow. Both are included.
