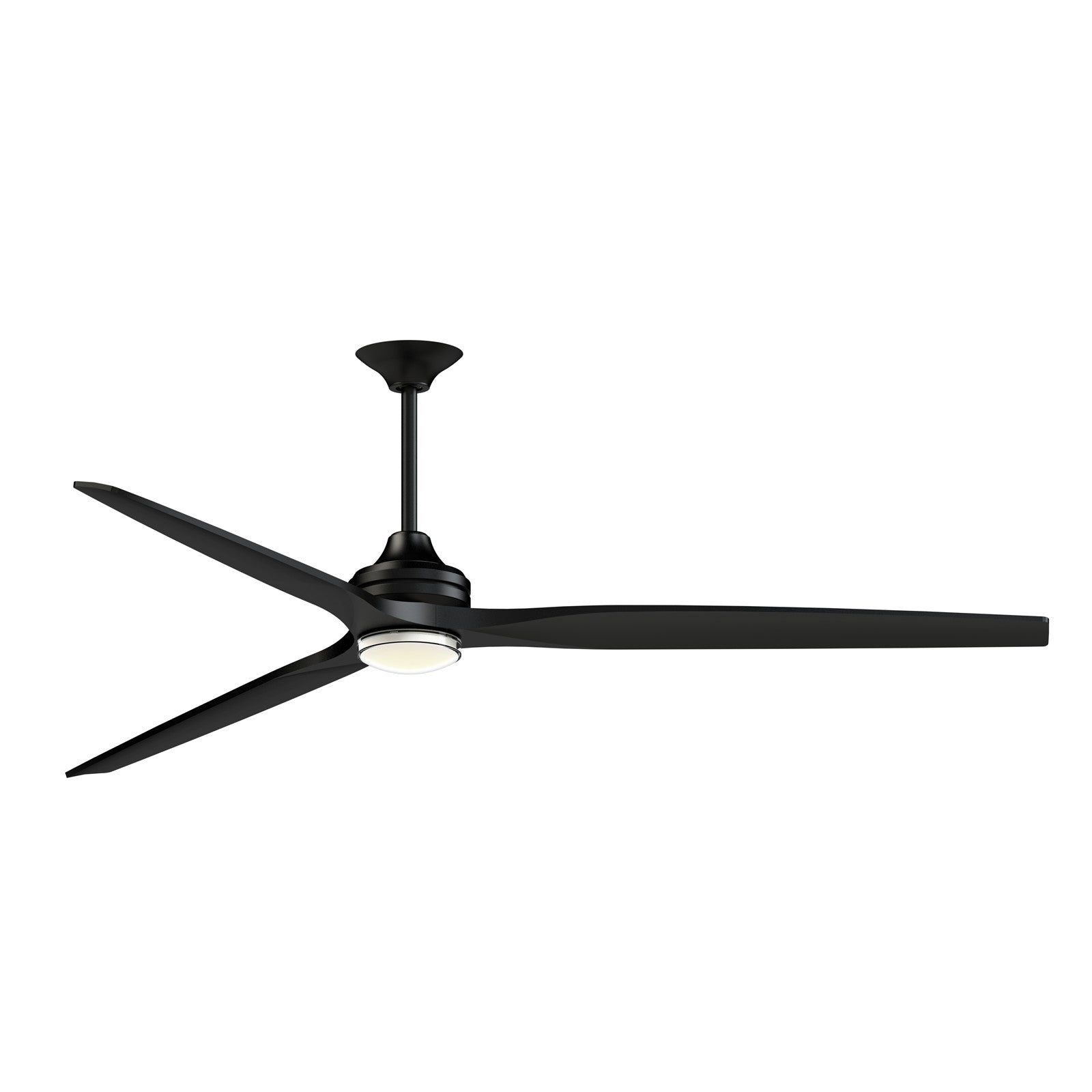

An 84-inch smart ceiling fan with a marine-grade LED light kit, designed for large indoor and covered outdoor spaces.
The Spitfire DC Custom pairs a sleek Black motor with Black Buttonwood blades, delivering powerful yet quiet airflow up to 10,688 CFM. The integrated 24-watt LED light kit features CCT Select technology with five color temperatures (2700K-5000K) and a double-walled glass shade for durability. Control it all with the included TR360 remote or your smart device via Wi-Fi fanSync technology.
Best for
- Covered patios and porches, where the damp-rated motor and moisture-resistant blades handle humidity without direct rain exposure
- Great rooms and open-plan living areas over 400 sq ft, where the 84-inch sweep moves air effectively
- Sunrooms and three-season rooms that need both airflow and adjustable lighting
- Rooms with sloped ceilings up to 20 degrees, thanks to the included downrods
- Smart-home setups, with voice control via Alexa or Google Assistant through fanSync
Not ideal for
- Spaces with ceilings under 8 ft if you need a flush mount - this fan requires downrod installation
- Outdoor areas directly exposed to rain or water spray - this is damp-rated, not wet-rated
- Small rooms under 150 sq ft where an 84-inch fan would be overpowering
How bright is it?
The integrated LED module produces 2000 lumens - roughly equivalent to a 150W incandescent bulb. This is sufficient for ambient lighting in a large room, and you can dim it to your preferred level.
Light color and feel
With CCT Select technology, you can choose from 2700K (warm white), 3000K (soft white), 3500K (neutral), 4000K (cool white), or 5000K (daylight). The 90 CRI ensures colors appear vibrant and accurate. The light is dimmable via the remote or app.
Sizing and fit
This fan measures 84 inches in diameter and hangs 16 or 22 inches from the ceiling depending on the downrod (6 or 12 inches included). It's designed for flat or slightly sloped ceilings (up to 20 degrees) and fits rooms with standard 8-foot ceilings. The 84-inch blade sweep is best for very large spaces (over 400 sq ft).
Specifications
- Primary Finish: Black
- Blade Material: Buttonwood
- Blade Finish: Black
- Shade Finish: Clear
- Collection: Spitfire
- Blade Sweep: 84"
- Number of Blades: 3
- Blade Pitch: 14°
- Motor Type: DC
- Motor Size: 153 X 22
- Motor Reversible: True
- Number of Speeds: 6
- Reverse Switch Location: Control
- Light Kit Included: True
- Cap Included: True
- Included Control: TR360
- Control Type: Handheld
- 1 Bulb(s)
- Bulb Type: LED Module
- Bulb Base: Connector Pin
- Bulb Max Wattage: 24W
- Color Temperature: 2700, 3000, 3500, 4000, 5000K
- CRI: 90
- Lumens: 2000
- Voltage: 120V
- Avg CFM: 7610
- CFM High: 10688
- Avg Energy Use: 20W
- Max Slope: 20°
- Location Rating: Damp
- Safety Rating: UL Only Listed
- Warranty: Limited Lifetime Warranty
- Overall Dimensions: 84"(L)84"(W) x 16, 22"(H)
- Housing Diameter: 8.07"
- Canopy Dimensions: 8.76"(Dia) x 2.52"(H)
- Downrod Length: 6, 12"
- Leadwire Length: 14 motor & 15 light"
- Ceiling to Bottom (No Light Kit): 13.69, 19.69"
- Ceiling to Bottom (With Light Kit): 16, 22"
- Item Weight: 20.97 lbs.
Frequently asked
Is the bulb included? Yes, the integrated LED module is included and cannot be replaced.
Is it dimmable, and what dimmer should I use? Yes, the light is dimmable via the included TR360 remote or the fanSync app. No wall dimmer is needed.
Can I install this in a bathroom or outdoors? This fan is damp-rated, so it's suitable for bathrooms and covered outdoor areas, but not for direct rain exposure.
What's the warranty? Limited Lifetime Warranty for the original purchaser.
Is the light kit marine-grade? Yes, the double-walled glass shade and marine-grade materials make it suitable for outdoor wet locations, though the fan itself is only damp-rated.
