An 84-inch indoor/outdoor smart ceiling fan with an integrated LED light kit, finished in brushed nickel with black blades, for large covered patios, great rooms, and open-plan living areas.

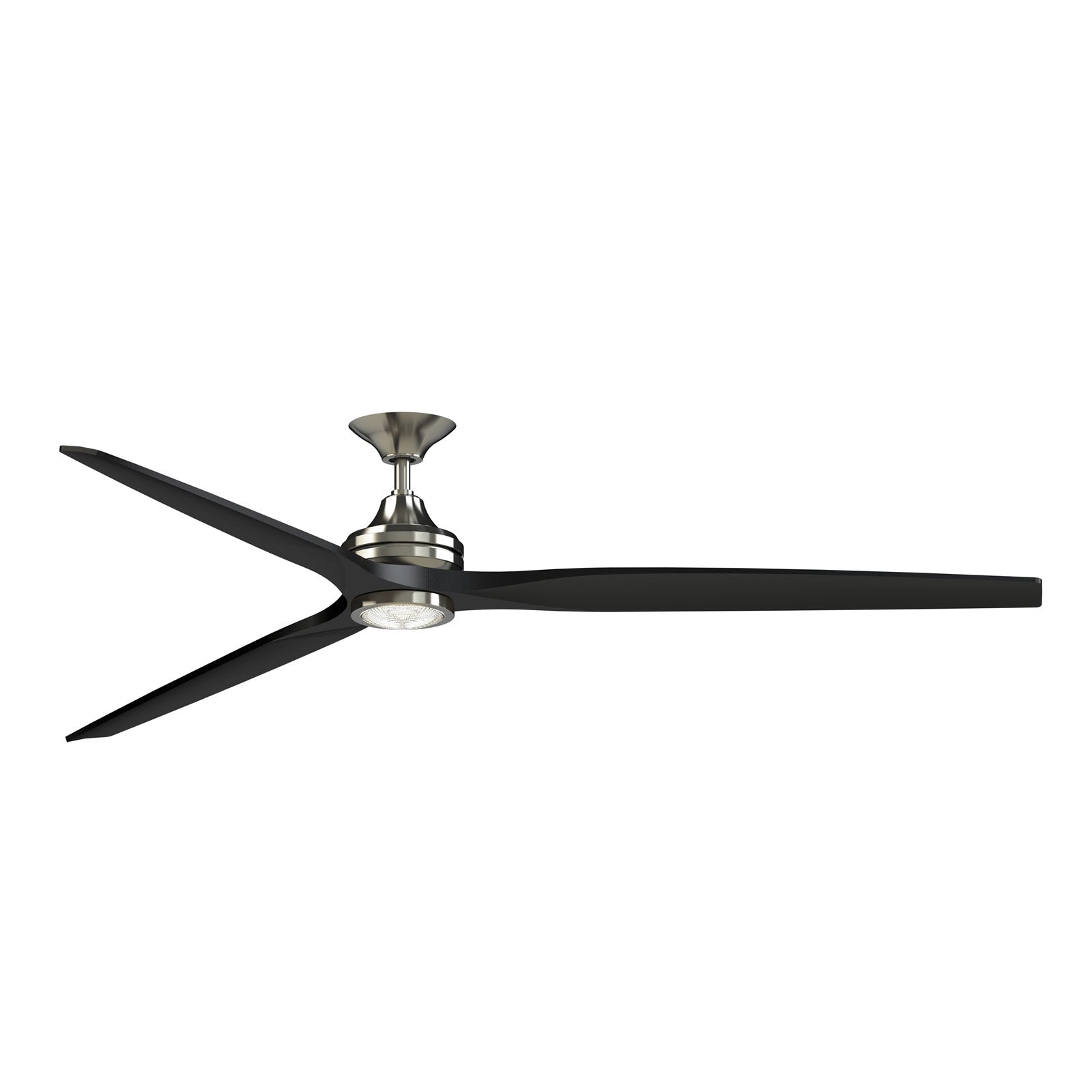

The Spitfire DC Custom pairs a streamlined, modern silhouette with serious airflow. The brushed nickel motor housing and black buttonwood blades give it a clean, contemporary look that suits both coastal and industrial interiors. This version includes an integrated LED light kit with both fresnel and frosted shades, so you can choose the light diffusion that suits your space. With Wi-Fi enabled fanSync technology and a handheld remote, you get smart control over fan speed, light dimming, and color temperature.
Best for
- Covered patios, porches, and sunrooms where damp-rated fixtures are required
- Large living rooms and great rooms (over 18 x 20 ft) needing high-volume airflow
- Bedrooms and home offices where quiet, energy-efficient cooling is a priority
- Spaces with ceilings up to 20° slope, using the included 6-inch or 12-inch downrods
- Smart-home setups - control via the fanSync app, voice assistants, or the included remote
Not ideal for
- Directly exposed outdoor areas - this fan is damp-rated, not wet-rated, so it should not be installed where it will be hit by rain or water spray
- Rooms with ceilings under 8 feet unless you use the flush-mount version, as the downrod adds height
- Small spaces under 12 x 12 ft - the 84-inch sweep is oversized for compact rooms
How bright is it?
The integrated LED module delivers 1600 lumens - roughly equivalent to a 100W incandescent bulb. That's bright enough to serve as the primary light in a large living room or covered patio, and it's fully dimmable for softer ambient moments.
Light color and feel
With CCT Select technology, you can choose from five color temperatures: 2700K (warm white), 3000K (soft white), 3500K (neutral), 4000K (cool white), and 5000K (daylight). This lets you shift from a cozy, golden glow to crisp, energizing light. The 90 CRI rating means colors appear vivid and accurate, ideal for spaces where you want true-to-life illumination. The included fresnel and frosted shades let you control the light diffusion - fresnel for a more focused beam, frosted for softer, more diffuse light.
Sizing and fit

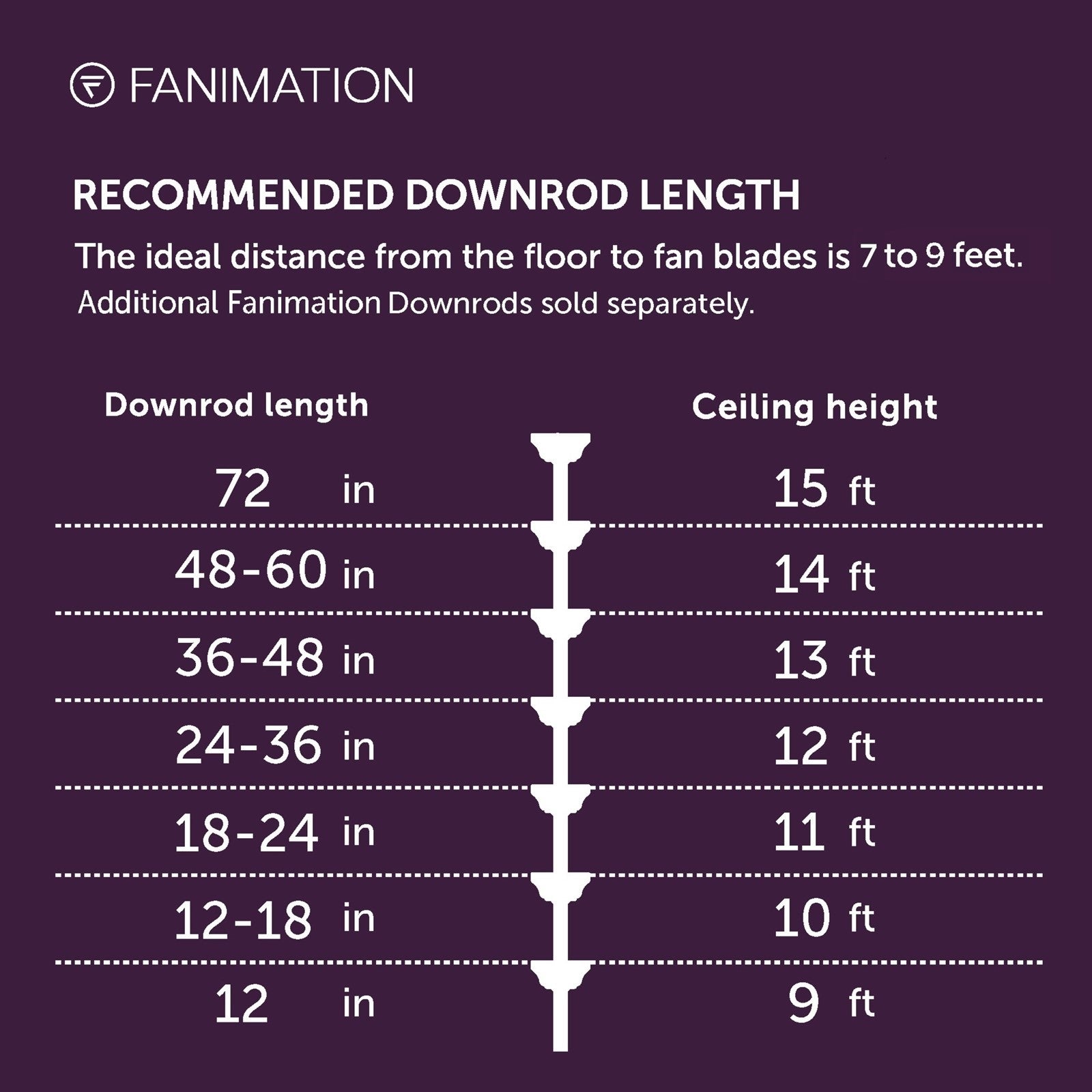

This fan spans 84 inches blade-to-blade, making it best for large rooms. With the included 6-inch and 12-inch downrods, the ceiling-to-bottom height ranges from 15.35 to 21.35 inches (with light kit). For optimal airflow, Fanimation recommends hanging the fan 7 to 9 feet above the floor. Optional downrods up to 72 inches are available for higher ceilings.
Specifications
- Primary Finish: Brushed Nickel
- Blade Material: Buttonwood
- Blade Finish: Black
- Shade Finish: Fresnel and Frosted
- Collection: Spitfire
- Blade Sweep: 84"
- Number of Blades: 3
- Blade Pitch: 14°
- Motor Type: DC
- Motor Size: 153 X 22
- Motor Reversible: True
- Number of Speeds: 6
- Reverse Switch Location: Control
- Light Kit Included: True
- Cap Included: True
- Included Control: TR360
- Control Type: Handheld
- 1 Bulb(s)
- Bulb Type: LED Module
- Bulb Base: Connector Pin
- Bulb Max Wattage: 18W
- Color Temperature: 2700, 3000, 3500, 4000, 5000K
- CRI: 90
- Lumens: 1600
- Voltage: 120V
- Avg CFM: 7610
- CFM High: 10688
- Avg Energy Use: 20W
- Max Slope: 20°
- Location Rating: Damp
- Safety Rating: UL Only Listed
- Warranty: Limited Lifetime Warranty
Frequently asked
Is the bulb included? Yes, the integrated LED module is built in and included.
Is it dimmable, and what dimmer should I use? Yes, the light is fully dimmable via the included TR360 remote or the fanSync app. No separate wall dimmer is needed.
Can I install this in a bathroom or outdoors? This fan is damp-rated, so it's safe for bathrooms, covered patios, and other humid indoor or covered outdoor spaces. It should not be directly exposed to rain or water.
What's the warranty? Fanimation offers a Limited Lifetime Warranty for the original purchaser, covering the motor and providing dependable long-term performance.
What's the difference between the fresnel and frosted shades? The fresnel shade provides a more focused, directional light, while the frosted shade diffuses light for a softer, more ambient glow. Both are included so you can choose based on your preference.
