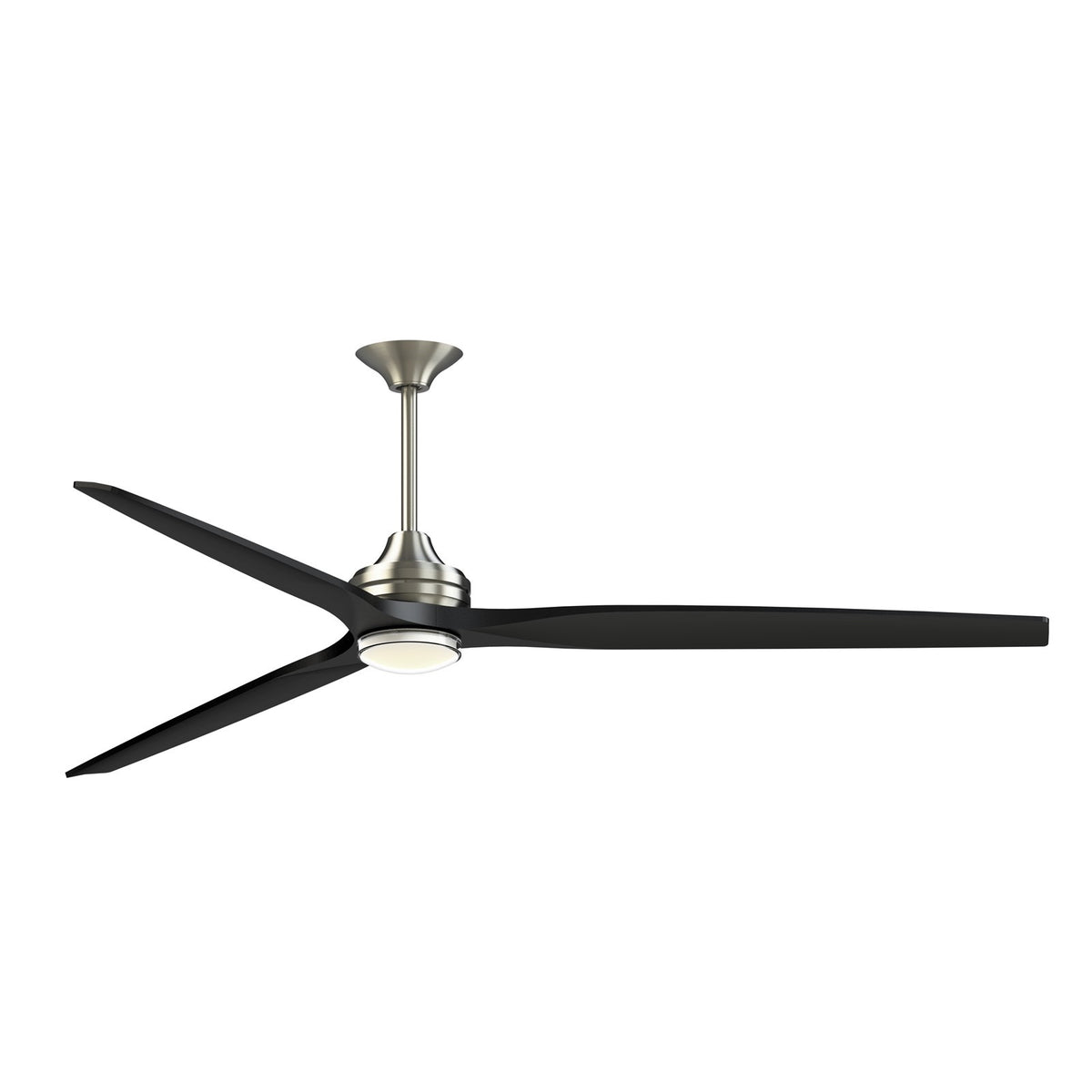

An 84-inch indoor/outdoor smart ceiling fan with an integrated LED light kit, finished in brushed nickel with black blades, for large covered patios, great rooms, and open-plan living areas.
The Spitfire DC Custom pairs a streamlined, modern silhouette with serious airflow. The brushed nickel motor housing and black buttonwood blades give it a clean, contemporary look that suits both coastal and industrial interiors. This version includes a double-walled marine-grade light kit with clear glass, engineered for durability in damp environments. With Wi-Fi enabled fanSync technology and a handheld remote, you get smart control over fan speed, light dimming, and color temperature from your couch or your phone.
Best for
- Covered patios, porches, and sunrooms where damp-rated fixtures are required
- Large living rooms and great rooms (over 18 x 20 ft) needing high-volume airflow
- Bedrooms and home offices where quiet, energy-efficient cooling is a priority
- Spaces with ceilings up to 20° slope, using the included 6-inch or 12-inch downrods
- Smart-home setups - control via the fanSync app, voice assistants, or the included remote
Not ideal for
- Directly exposed outdoor areas - this fan is damp-rated, not wet-rated, so it should not be installed where it will be hit by rain or water spray
- Rooms with ceilings under 8 feet unless you use the flush-mount version, as the downrod adds height
- Small spaces under 12 x 12 ft - the 84-inch sweep is oversized for compact rooms
How bright is it?
The integrated LED module delivers 2000 lumens - roughly equivalent to a 150W incandescent bulb. That's bright enough to serve as the primary light in a large living room or covered patio, and it's fully dimmable for softer ambient moments.
Light color and feel
With CCT Select technology, you can choose from five color temperatures: 2700K (warm white), 3000K (soft white), 3500K (neutral), 4000K (cool white), and 5000K (daylight). This lets you shift from a cozy, golden glow to crisp, energizing light. The 90 CRI rating means colors appear vivid and accurate, ideal for spaces where you want true-to-life illumination.
Sizing and fit
This fan spans 84 inches blade-to-blade, making it best for large rooms. With the included 6-inch and 12-inch downrods, the ceiling-to-bottom height ranges from 16 to 22 inches (with light kit). For optimal airflow, Fanimation recommends hanging the fan 7 to 9 feet above the floor. Optional downrods up to 72 inches are available for higher ceilings.
Specifications
- Primary Finish: Brushed Nickel
- Blade Material: Buttonwood
- Blade Finish: Black
- Shade Finish: Clear
- Collection: Spitfire
- Blade Sweep: 84"
- Number of Blades: 3
- Blade Pitch: 14°
- Motor Type: DC
- Motor Size: 153 X 22
- Motor Reversible: True
- Number of Speeds: 6
- Reverse Switch Location: Control
- Light Kit Included: True
- Cap Included: True
- Included Control: TR360
- Control Type: Handheld
- 1 Bulb(s)
- Bulb Type: LED Module
- Bulb Base: Connector Pin
- Bulb Max Wattage: 24W
- Color Temperature: 2700, 3000, 3500, 4000, 5000K
- CRI: 90
- Lumens: 2000
- Voltage: 120V
- Avg CFM: 7610
- CFM High: 10688
- Avg Energy Use: 20W
- Max Slope: 20°
- Location Rating: Damp
- Safety Rating: UL Only Listed
- Warranty: Limited Lifetime Warranty
Frequently asked
Is the bulb included? Yes, the integrated LED module is built in and included.
Is it dimmable, and what dimmer should I use? Yes, the light is fully dimmable via the included TR360 remote or the fanSync app. No separate wall dimmer is needed.
Can I install this in a bathroom or outdoors? This fan is damp-rated, so it's safe for bathrooms, covered patios, and other humid indoor or covered outdoor spaces. It should not be directly exposed to rain or water.
What's the warranty? Fanimation offers a Limited Lifetime Warranty for the original purchaser, covering the motor and providing dependable long-term performance.
How does the double-walled marine light kit differ from the standard kit? The double-walled construction adds durability and corrosion resistance, making it better suited for damp coastal environments.
