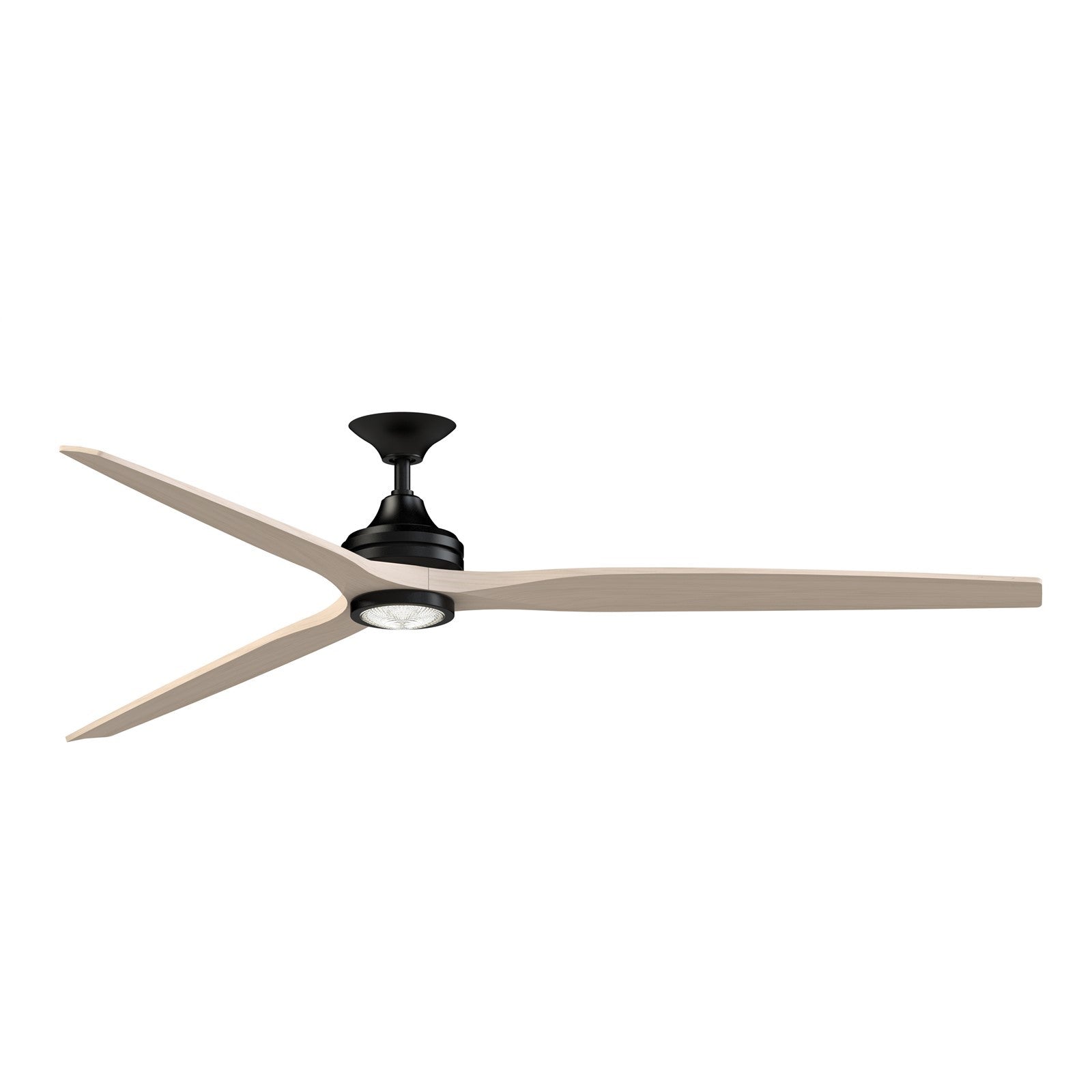

An 84-inch indoor/outdoor smart ceiling fan with an integrated LED light kit, designed for large covered patios, sunrooms, and great rooms.
The Spitfire DC Custom pairs a sleek Black motor with White Washed Buttonwood blades for a modern, coastal-industrial look. Its 6-speed DC motor delivers powerful yet quiet airflow up to 10,688 CFM, while the integrated 18-watt LED light kit with CCT Select technology lets you shift from warm 2700K to bright 5000K. Control it all with the included TR360 remote, your smart device, or voice assistant via fanSync Wi-Fi.
Best for
- Covered patios and porches, rated for damp locations
- Sunrooms and three-season rooms with high ceilings
- Large living areas and great rooms needing high airflow
- Bathrooms and laundry rooms with humidity
- Smart home setups with Wi-Fi and voice control
Not ideal for
- Directly exposed to rain or water - damp rated, not wet rated
- Rooms with ceilings under 8 feet unless using the flush mount option
- Small spaces under 12x12 ft where this 84-inch sweep would overwhelm
How bright is it?
1600 lumens - about as bright as a 100W incandescent bulb, suitable for ambient lighting in large rooms. The light is dimmable, so you can lower it for a cozy evening.
Light color and feel
Five selectable color temperatures from 2700K (warm white) to 5000K (daylight). With a CRI of 90, colors render accurately, ideal for art or task areas. Dimmable for full control.
Sizing and fit
84-inch blade sweep, 84 x 84 x 19.42 inches overall. Includes 6-inch and 12-inch downrods for flat or sloped ceilings up to 20 degrees. Recommended hanging height 7-9 feet.
Specifications
- Primary Finish: Black
- Blade Material: Buttonwood
- Blade Finish: White Washed
- Shade Finish: Fresnel and Frosted
- Collection: Spitfire
- Blade Sweep: 84"
- Number of Blades: 3
- Blade Pitch: 14°
- Motor Type: DC
- Motor Size: 153 X 22
- Motor Reversible: True
- Number of Speeds: 6
- Reverse Switch Location: Control
- Light Kit Included: True
- Cap Included: True
- Included Control: TR360
- Control Type: Handheld
- 1 Bulb(s)
- Bulb Type: LED Module
- Bulb Base: Connector Pin
- Bulb Max Wattage: 18W
- Color Temperature: 2700, 3000, 3500, 4000, 5000K
- CRI: 90
- Lumens: 1600
- Voltage: 120V
- Avg CFM: 7610
- CFM High: 10688
- Avg Energy Use: 20W
- Max Slope: 20°
- Location Rating: Damp
- Safety Rating: UL Only Listed
- Warranty: Limited Lifetime Warranty
Frequently asked
Is the bulb included? Yes, an integrated LED module is included.
Is it dimmable, and what dimmer should I use? Yes, the light is dimmable via the included TR360 remote or the fanSync app.
Can I install this in a bathroom or outdoors? It is damp rated, so it can be used in bathrooms and covered outdoor areas, but not directly exposed to rain.
What's the warranty? Limited Lifetime Warranty for the original purchaser.
Does this fan work with sloped ceilings? Yes, it supports up to a 20-degree slope.
