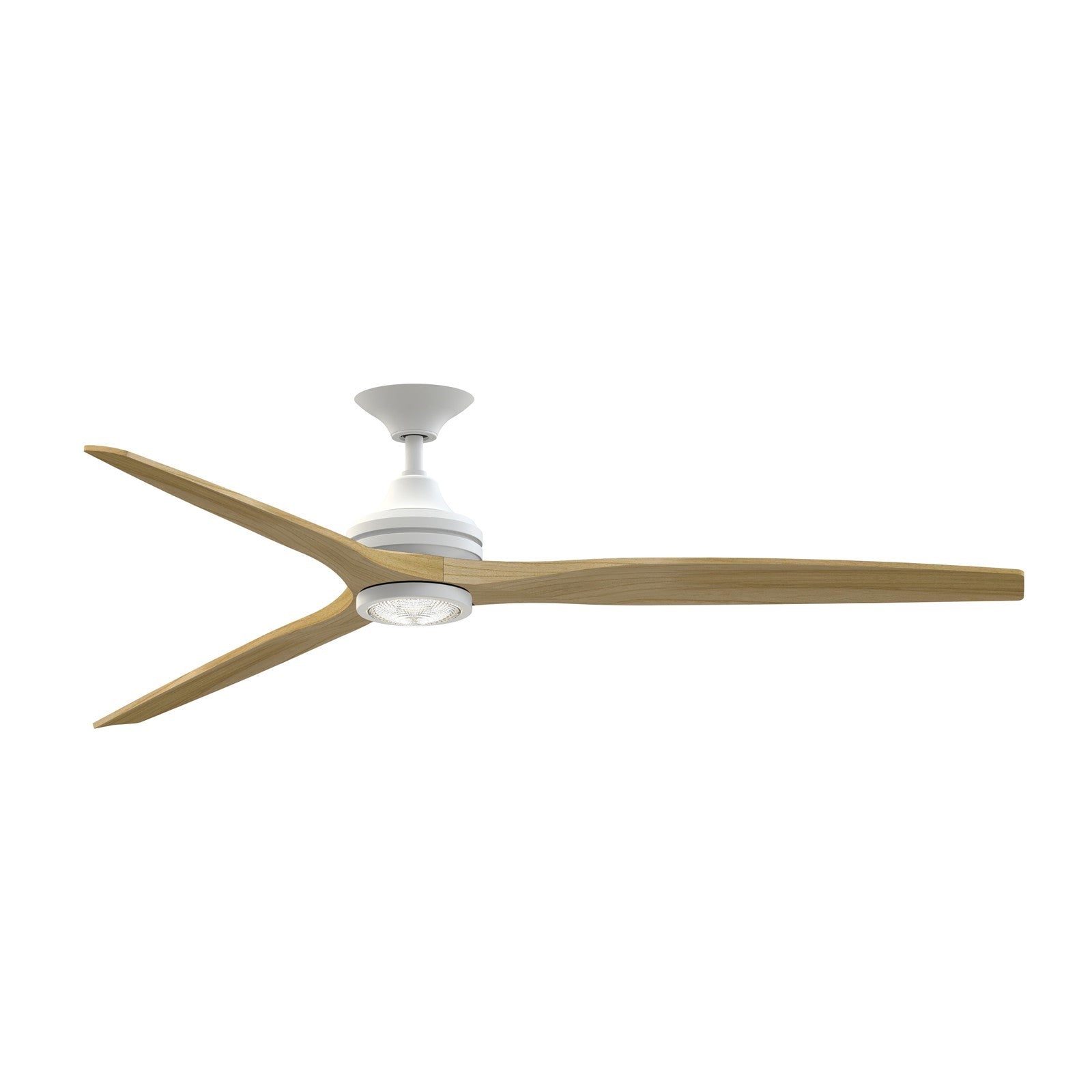

A 72-inch smart ceiling fan with an integrated LED light kit from Fanimation's Spitfire DC Custom collection, finished in matte white with natural buttonwood blades, for covered outdoor and indoor living spaces.
This downrod Spitfire DC Custom pairs a sleek matte white motor with three natural buttonwood blades, delivering powerful yet quiet airflow up to 9,639 CFM from its 6-speed DC motor. It includes an integrated 18-watt LED light kit with CCT Select technology, offering five color temperatures from warm to daylight. The included TR360 handheld remote and Wi-Fi fanSync app give you full control over fan speed, reversing, light dimming, and CCT selection, while Fanimation's KwikWire simplifies installation.
Best for
- Covered patios, porches, and sunrooms where damp-rated fixtures are needed
- Living rooms and great rooms with ceilings at least 8 ft high
- Bedrooms and home offices needing quiet, energy-efficient airflow with integrated lighting
- Rooms with sloped ceilings up to 20 degrees
- Smart home setups with voice assistant or app control
Not ideal for
- Areas directly exposed to rain or water - this fan is damp-rated, not wet-rated
- Rooms with ceilings under 7 ft, as the fan hangs 19.42 inches from the ceiling
- Those who prefer a flush mount - this version uses downrods
How bright is it?
The integrated 18-watt LED light kit provides 1600 lumens - roughly equivalent to a 100W incandescent bulb, suitable for ambient lighting in medium to large rooms.
Light color and feel
With CCT Select technology, you can choose from five color temperatures: 2700K (warm white), 3000K (soft white), 3500K (neutral white), 4000K (cool white), and 5000K (daylight). This lets you shift from cozy warm light to bright daylight. The light is dimmable and has a CRI of 90, ensuring accurate color rendering.
Sizing and fit
With a 72-inch blade sweep and overall dimensions of 72 x 72 x 19.42 inches, this fan is designed for large rooms (over 18 x 18 ft). It includes 6-inch and 12-inch downrods for flat or sloped ceilings up to 20 degrees. Optional downrods up to 72 inches are available to achieve the recommended 7-9 ft hanging height. The canopy is 8.76 inches in diameter, and the fan weighs 20.6 lbs.
Specifications
- Primary Finish: Matte White
- Blade Material: Buttonwood
- Blade Finish: Natural
- Shade Finish: Fresnel and Frosted
- Collection: Spitfire
- Blade Sweep: 72"
- Number of Blades: 3
- Blade Pitch: 14°
- Motor Type: DC
- Motor Size: 153 X 22
- Motor Reversible: True
- Number of Speeds: 6
- Reverse Switch Location: Control
- Light Kit Included: True
- Cap Included: True
- Included Control: TR360
- Control Type: Handheld
- 1 Bulb(s)
- Bulb Type: LED Module
- Bulb Base: Connector Pin
- Bulb Max Wattage: 18W
- Color Temperature: 2700, 3000, 3500, 4000, 5000K
- CRI: 90
- Lumens: 1600
- Voltage: 120V
- Avg CFM: 6237
- CFM High: 9639
- Avg Energy Use: 20W
- Max Slope: 20°
- Location Rating: Damp
- Safety Rating: UL Only Listed
- Warranty: Limited Lifetime Warranty
Frequently asked
Is the bulb included? Yes, the integrated LED light kit is included and the LED module is built-in.
Is it dimmable, and what dimmer should I use? The fan speed and light dimming are controlled via the included TR360 remote. No wall dimmer is required.
Can I install this in a bathroom or outdoors? Yes, this fan is damp-rated, making it suitable for bathrooms, covered patios, and other covered outdoor areas. It should not be directly exposed to rain or water.
What's the warranty? Fanimation offers a Limited Lifetime Warranty for the original purchaser. Contact Fanimation Tech Support at 1-888-567-2055 for assistance.
What is the maximum slope for installation? This fan can be installed on sloped ceilings up to 20 degrees. It includes 6-inch and 12-inch downrods, and optional longer downrods are available.
