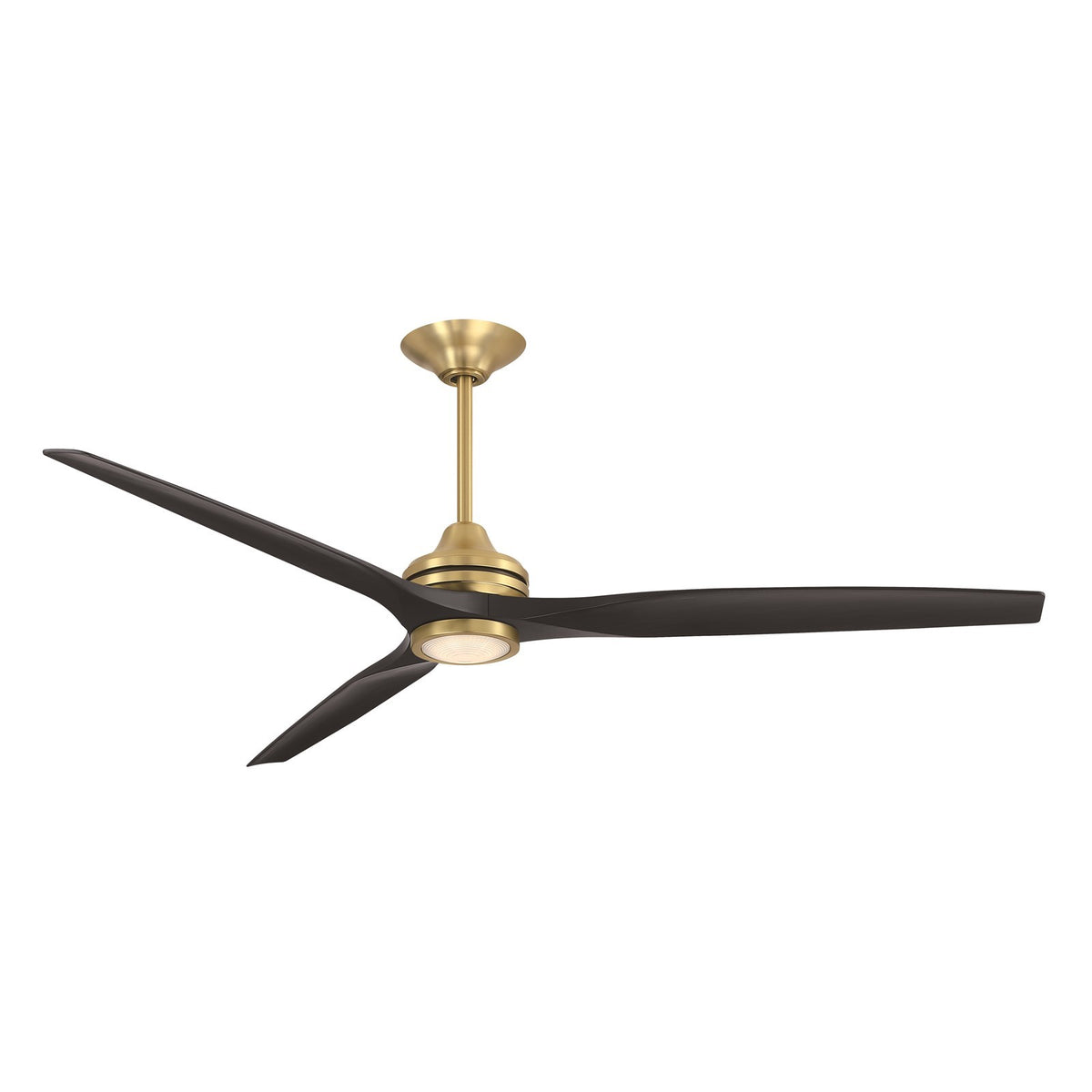

A 72-inch smart ceiling fan with an integrated LED light kit for covered patios and large living rooms, finished in brushed satin brass with black blades.
The Spitfire DC Custom brings together powerful airflow and customizable lighting in a sleek, modern design. The brushed satin brass motor housing and three black buttonwood blades create a streamlined look, while the included 18-watt LED light kit with CCT Select technology lets you shift from warm to daylight with five color temperatures. The 6-speed DC motor delivers up to 9,639 CFM quietly, and the TR360 remote plus Wi-Fi fanSync app provide effortless control. Damp rated for covered outdoor use, it's built for comfort and convenience.
Best for
- Covered patios, porches, and sunrooms where damp-rated durability matters
- Large living rooms and great rooms needing high-volume airflow and ambient light
- Bedrooms and home offices where quiet operation and smart control are valued
- Rooms with standard 8-9 foot ceilings, using the included downrods
Not ideal for
- Spaces with ceilings under 8 feet if you prefer a flush mount for maximum clearance
- Areas directly exposed to rain or water - this fan is damp rated, not wet rated
- Small rooms under 12x12 feet where a 72-inch sweep may be overpowering
How bright is it?
The integrated 18-watt LED light kit delivers 1600 lumens - about as bright as a 100W incandescent bulb, suitable for ambient lighting in medium to large rooms.
Light color and feel
With CCT Select technology, you can choose from five color temperatures - 2700K warm white, 3000K soft white, 3500K neutral, 4000K cool white, or 5000K daylight - to match the mood and function of your space. The high CRI of 90 ensures colors appear vivid and accurate.
Sizing and fit
This downrod-mount fan measures 72 inches in diameter and hangs 19.42 inches from the ceiling with the included 6-inch downrod. It includes both 6-inch and 12-inch downrods, and optional downrods up to 72 inches are available to achieve the recommended 7-9 foot hanging height.
Specifications
- Primary Finish: Brushed Satin Brass
- Blade Material: Buttonwood
- Blade Finish: Black
- Shade Finish: Fresnel and Frosted
- Collection: Spitfire
- Blade Sweep: 72"
- Number of Blades: 3
- Blade Pitch: 14°
- Motor Type: DC
- Motor Size: 153 X 22
- Motor Reversible: True
- Number of Speeds: 6
- Reverse Switch Location: Control
- Light Kit Included: True
- Cap Included: True
- Included Control: TR360
- Control Type: Handheld
- 1 Bulb(s)
- Bulb Type: LED Module
- Bulb Base: Connector Pin
- Bulb Max Wattage: 18W
- Color Temperature: 2700, 3000, 3500, 4000, 5000K
- CRI: 90
- Lumens: 1600
- Voltage: 120V
- Avg CFM: 6237
- CFM High: 9639
- Avg Energy Use: 20W
- Max Slope: 20°
- Location Rating: Damp
- Safety Rating: UL Only Listed
- Warranty: Limited Lifetime Warranty
- Overall Dimensions: 72"(L) x 72"(W) x 19.42"(H)
- Housing Diameter: 8.07"
- Canopy Dimensions: 8.76"(Dia) x 2.52"(H)
- Downrod Length: 6, 12"
- Leadwire Length: 14 motor & 15 light"
- Ceiling to Bottom (No Light Kit): 13.69, 19.69"
- Ceiling to Bottom (With Light Kit): 15.35, 21.35"
- Item Weight: 20.6 lbs.
Frequently asked
Is the bulb included? Yes, the integrated 18-watt LED light kit is included and features CCT Select technology.
Is it dimmable, and what dimmer should I use? The light is dimmable via the included TR360 remote, which offers infinite light dimming. No wall dimmer is required.
Can I install this in a bathroom or outdoors? Yes, this fan is damp rated, making it suitable for covered outdoor areas, bathrooms, and laundry rooms. It should not be directly exposed to rain or water.
What's the warranty? Fanimation offers a Limited Lifetime Warranty for the original purchaser. Contact Fanimation Tech Support at 1-888-567-2055 for assistance.
Can this fan be used on a sloped ceiling? Yes, it supports up to a 20° slope, making it versatile for various ceiling types.
