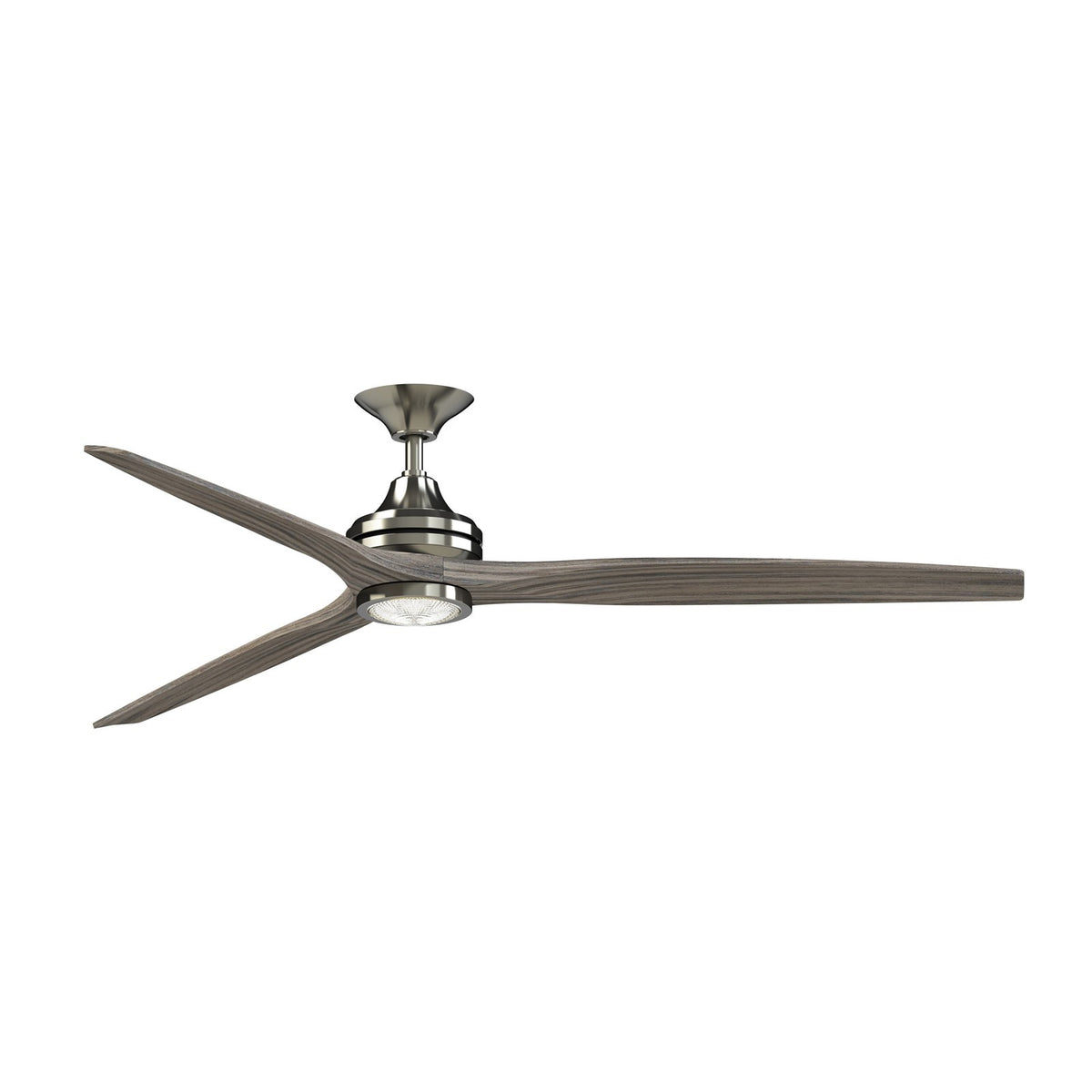

A 72-inch smart ceiling fan with an integrated LED light kit for covered patios, porches, and large living areas, finished in brushed nickel with weathered wood blades.
The Spitfire DC Custom combines a sleek, low-profile design with powerful performance. Its 6-speed DC motor delivers up to 9,639 CFM of airflow while operating quietly and efficiently. The brushed nickel finish and weathered wood blades bring a natural, modern look to any space. This version includes an integrated 18-watt LED light kit with CCT Select technology, allowing you to choose from five color temperatures. With Wi-Fi enabled fanSync technology, you can control the fan and light from your smartphone, voice assistant, or the included TR360 remote. The fan is damp rated for indoor and covered outdoor use, making it a versatile choice for many rooms.
Best for
- Covered patios and porches where a downrod mount is needed for optimal airflow
- Large living rooms and great rooms up to 20x20 ft, providing strong airflow and ambient light
- Sunrooms and enclosed porches with humidity exposure
- Bedrooms and home offices needing quiet, energy-efficient air circulation with adjustable lighting
- Spaces with ceilings up to 9 ft, using the included 6-inch or 12-inch downrod
Not ideal for
- Outdoor areas directly exposed to rain or water - this fan is damp rated, not wet rated
- Rooms with ceilings lower than 8 ft if you use the 12-inch downrod, as the fan may hang too low
- Small rooms under 10x10 ft where a 72-inch fan may be overpowering
How bright is it?
The integrated LED light kit provides 1600 lumens - about as bright as a 100W incandescent bulb, suitable for ambient lighting in medium to large rooms. It is dimmable via the remote or app.
Light color and feel
With CCT Select technology, you can choose from five color temperatures (2700K, 3000K, 3500K, 4000K, 5000K) to shift from warm, cozy light to bright daylight. With a CRI of 90, colors appear accurate and vibrant.
Sizing and fit
This downrod-mount fan has a blade sweep of 72 inches and an overall height of 19.42 inches with the included 6-inch downrod. It fits flat or slightly sloped ceilings (up to 20°). Optional downrods up to 72 inches are available for higher ceilings.
Specifications
- Primary Finish: Brushed Nickel
- Blade Material: Buttonwood
- Blade Finish: Weathered Wood
- Shade Finish: Fresnel and Frosted
- Collection: Spitfire
- Blade Sweep: 72"
- Number of Blades: 3
- Blade Pitch: 14°
- Motor Type: DC
- Motor Size: 153 X 22
- Motor Reversible: True
- Number of Speeds: 6
- Reverse Switch Location: Control
- Light Kit Included: True
- Cap Included: True
- Included Control: TR360
- Control Type: Handheld
- 1 Bulb(s)
- Bulb Type: LED Module
- Bulb Base: Connector Pin
- Bulb Max Wattage: 18W
- Color Temperature: 2700, 3000, 3500, 4000, 5000K
- CRI: 90
- Lumens: 1600
- Voltage: 120V
- Avg CFM: 6237
- CFM High: 9639
- Avg Energy Use: 20W
- Max Slope: 20°
- Location Rating: Damp
- Safety Rating: UL Only Listed
- Warranty: Limited Lifetime Warranty
- Overall Dimensions: 72"(L) x 72"(W) x 19.42"(H)
- Housing Diameter: 8.07"
- Canopy Dimensions: 8.76"(Dia) x 2.52"(H)
- Downrod Length: 6, 12"
- Leadwire Length: 14 motor & 15 light"
- Ceiling to Bottom (No Light Kit): 13.69, 19.69"
- Ceiling to Bottom (With Light Kit): 15.35, 21.35"
- Item Weight: 20.6 lbs.
Frequently asked
Is the bulb included? Yes, the LED module is integrated and included.
Is it dimmable, and what dimmer should I use? The light is dimmable via the remote or app, not a wall dimmer.
Can I install this in a bathroom or outdoors? This fan is damp rated, so it can be installed in bathrooms, covered patios, and other humid indoor/covered outdoor areas, but not in direct rain.
What's the warranty? Limited Lifetime Warranty for the original purchaser.
Does this fan work with voice assistants? Yes, it is compatible with Alexa and Google Assistant via the fanSync app.
