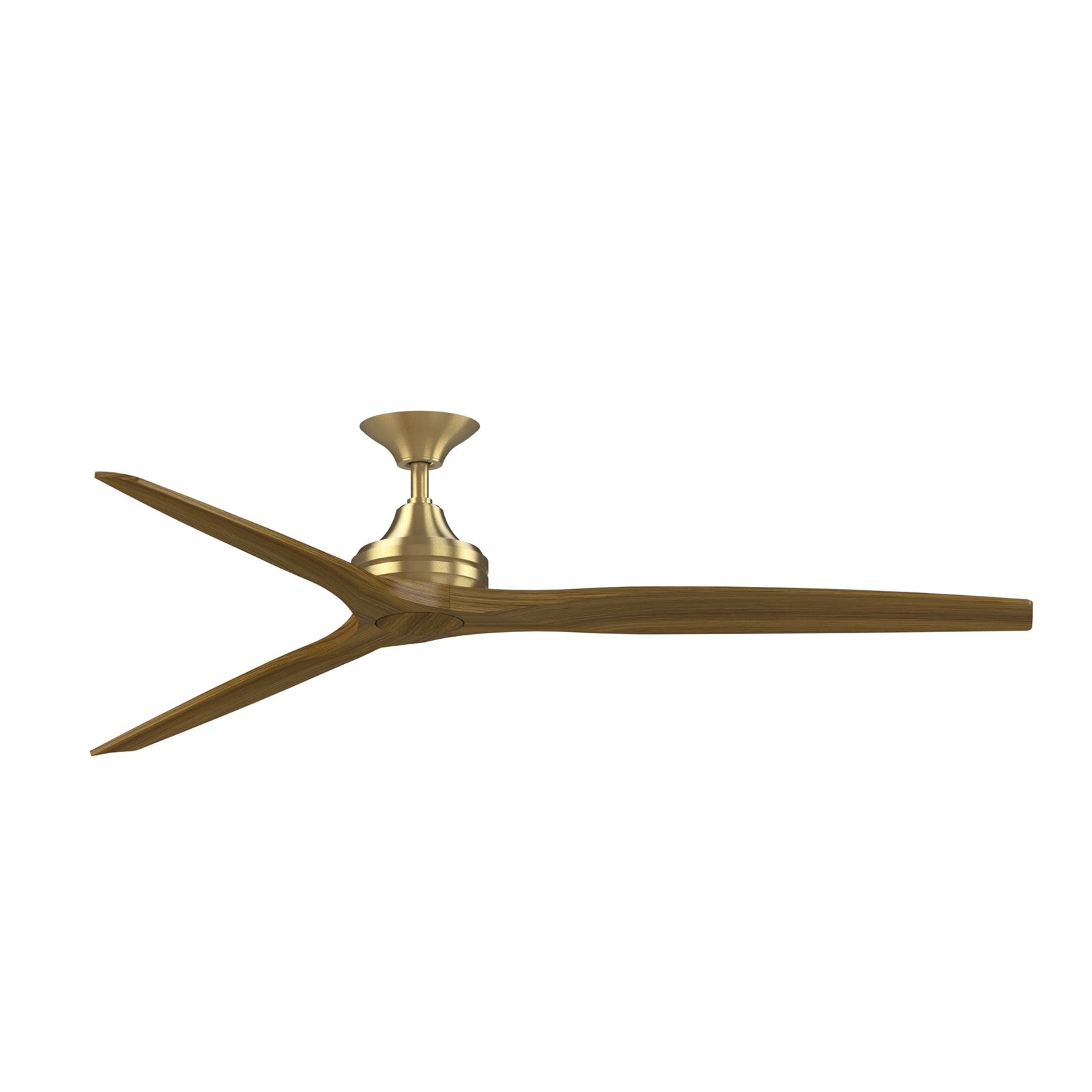

A 72-inch smart ceiling fan for covered patios and large living rooms, finished in brushed satin brass with koa wood blades.
The Spitfire DC Custom pairs a sleek, modern design with natural warmth. The brushed satin brass motor housing and three koa wood blades create a distinctive look that suits contemporary and transitional spaces. Its 6-speed DC motor moves up to 9,639 CFM quietly and efficiently, while the included TR360 remote and Wi-Fi fanSync app put full control at your fingertips. Damp rated for covered outdoor use, it brings smart comfort to a wide range of rooms.
Best for
- Covered patios, porches, and sunrooms where damp-rated durability matters
- Large living rooms and great rooms needing high-volume airflow
- Bedrooms and home offices where quiet operation and smart control are valued
- Rooms with standard 8-9 foot ceilings, using the included downrods
Not ideal for
- Spaces with ceilings under 8 feet if you prefer a flush mount for maximum clearance
- Areas directly exposed to rain or water - this fan is damp rated, not wet rated
- Small rooms under 12x12 feet where a 72-inch sweep may be overpowering
How bright is it?
This fan is compatible with an optional 18-watt LED light kit (sold separately) that delivers 1600 lumens - about as bright as a 100W incandescent bulb, suitable for ambient lighting in medium to large rooms.
Light color and feel
With the optional CCT Select light kit, you can choose from five color temperatures - 2700K warm white, 3000K soft white, 3500K neutral, 4000K cool white, or 5000K daylight - to match the mood and function of your space. The high CRI of 90 ensures colors appear vivid and accurate.
Sizing and fit
This downrod-mount fan measures 72 inches in diameter and hangs 19.69 inches from the ceiling with the included 6-inch downrod. It includes both 6-inch and 12-inch downrods, and optional downrods up to 72 inches are available to achieve the recommended 7-9 foot hanging height.
Specifications
- Primary Finish: Brushed Satin Brass
- Blade Material: Wood
- Blade Finish: Koa
- Collection: Spitfire
- Blade Sweep: 72"
- Number of Blades: 3
- Blade Pitch: 14°
- Motor Type: DC
- Motor Size: 153 X 22
- Motor Reversible: True
- Number of Speeds: 6
- Reverse Switch Location: Control
- Cap Included: True
- Included Control: TR360
- Control Type: Handheld
- Voltage: 120V
- Avg CFM: 6237
- CFM High: 9639
- Avg Energy Use: 20W
- Max Slope: 20°
- Location Rating: Damp
- Safety Rating: UL Only Listed
- Warranty: Limited Lifetime Warranty
- Overall Dimensions: 72"(L) x 72"(W) x 19.69"(H)
- Housing Diameter: 8.07"
- Canopy Dimensions: 8.76"(Dia) x 2.52"(H)
- Downrod Length: 6, 12"
- Leadwire Length: 14 motor & 15 light"
- Ceiling to Bottom (No Light Kit): 13.69, 19.69"
- Item Weight: 19.3 lbs.
Frequently asked
Is the bulb included? No, the light kit is sold separately. This fan is compatible with Fanimation's integrated 18-watt LED light kit.
Is it dimmable, and what dimmer should I use? The optional light kit is dimmable via the included TR360 remote, which offers infinite light dimming. No wall dimmer is required.
Can I install this in a bathroom or outdoors? Yes, this fan is damp rated, making it suitable for covered outdoor areas, bathrooms, and laundry rooms. It should not be directly exposed to rain or water.
What's the warranty? Fanimation offers a Limited Lifetime Warranty for the original purchaser. Contact Fanimation Tech Support at 1-888-567-2055 for assistance.
Can this fan be used on a sloped ceiling? Yes, it supports up to a 20° slope, making it versatile for various ceiling types.
