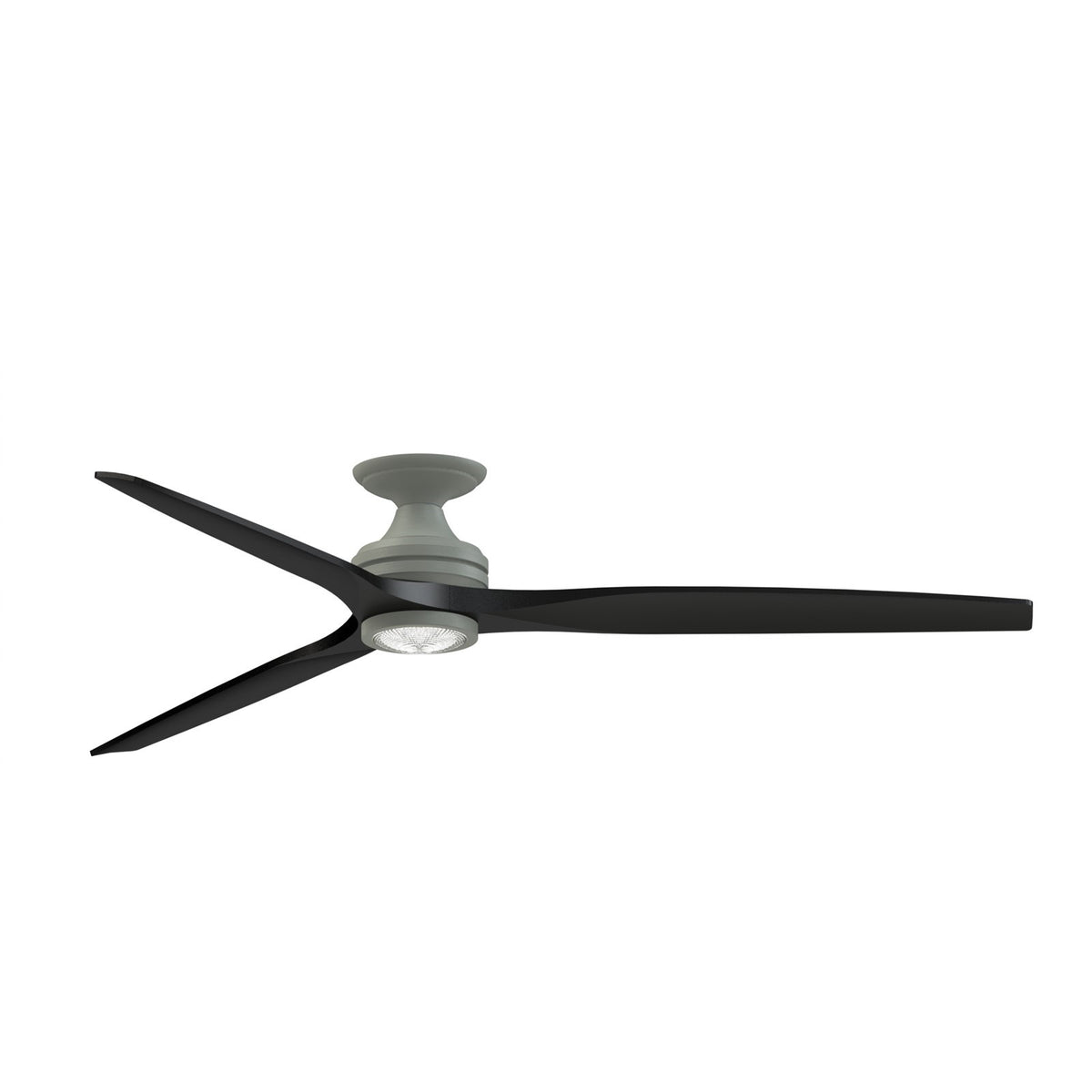

A 72-inch flush-mount smart ceiling fan from Fanimation's Spitfire DC Custom collection, finished in antique graphite with black blades, featuring an integrated LED light kit with CCT Select technology.
The Spitfire DC Custom is a powerful and versatile ceiling fan designed for large indoor and covered outdoor spaces. Its antique graphite motor housing and three black blades create a sleek, modern aesthetic that complements a variety of décor styles. The integrated 18-watt LED light kit offers five selectable color temperatures—from warm 2700K to cool 5000K—so you can tailor the lighting to any activity or mood. With a 6-speed DC motor delivering up to 9,639 CFM of airflow, this fan keeps large rooms comfortable while using minimal energy. The included TR360 remote and Wi-Fi fanSync technology provide convenient control from anywhere.
Best for
- Covered patios, porches, and sunrooms where damp-rated fixtures are required
- Large living rooms and great rooms with ceilings 9 feet or higher
- Bedrooms and home offices needing quiet, energy-efficient air circulation with integrated lighting
- Bathrooms and laundry rooms with high humidity (damp-rated)
- Low-ceiling rooms where a flush mount is necessary
Not ideal for
- Outdoor areas directly exposed to rain or water (damp-rated, not wet-rated)
- Small rooms under 12x12 feet where a 72-inch sweep may be overpowering
- Spaces with sloped ceilings greater than 20 degrees without an adapter
How bright is it?
The integrated LED light kit delivers 1600 lumens—about as bright as a 100W incandescent bulb—suitable for ambient lighting in medium to large rooms. It is dimmable via the included remote.
Light color and feel
With CCT Select technology, you can choose from five color temperatures: 2700K (warm white), 3000K (soft white), 3500K (neutral white), 4000K (cool white), and 5000K (daylight). This flexibility lets you match the lighting to your mood and décor, from cozy evenings to bright task lighting. The high CRI of 90 ensures colors appear vivid and accurate.
Sizing and fit
With a 72-inch blade sweep and a low-profile flush mount, this fan hangs only 11.33 inches from the ceiling, making it ideal for rooms with 8-foot ceilings. The overall dimensions are 72 inches wide by 72 inches deep by 11.33 inches high, and it weighs 22.36 pounds. It mounts flush to a flat ceiling using the included bracket.
Specifications
- Primary Finish: Antique Graphite
- Blade Material: Buttonwood
- Blade Finish: Black
- Shade Finish: Fresnel and Frosted
- Collection: Spitfire
- Blade Sweep: 72"
- Number of Blades: 3
- Blade Pitch: 14°
- Motor Type: DC
- Motor Size: 153 X 22
- Motor Reversible: True
- Number of Speeds: 6
- Reverse Switch Location: Control
- Light Kit Included: True
- Cap Included: True
- Included Control: TR360
- Control Type: Handheld
- 1 Bulb(s)
- Bulb Type: LED Module
- Bulb Base: Connector Pin
- Bulb Max Wattage: 18W
- Color Temperature: 2700, 3000, 3500, 4000, 5000K
- CRI: 90
- Lumens: 1600
- Voltage: 120V
- Avg CFM: 6237
- CFM High: 9639
- Avg Energy Use: 20W
- Location Rating: Damp
- Safety Rating: UL Only Listed
- Warranty: Limited Lifetime Warranty
- Overall Dimensions: 72"(L) x 72"(W) x 11.33"(H)
- Housing Diameter: 8.07"
- Canopy Dimensions: 7.85"(Dia) x 5.02"(H)
- Leadwire Length: 14 motor & 15 light"
- Ceiling to Bottom (No Light Kit): 9.65"
- Ceiling to Bottom (With Light Kit): 11.33"
- Item Weight: 22.36 lbs.
Frequently asked
Is the bulb included? Yes, the integrated LED light kit is included and features a non-replaceable LED module.
Is it dimmable, and what dimmer should I use? The fan speed and light dimming are controlled via the included TR360 remote. No separate wall dimmer is required.
Can I install this in a bathroom or outdoors? Yes, this fan is damp-rated, making it suitable for bathrooms, covered patios, and other covered outdoor areas. It should not be directly exposed to rain or water.
What's the warranty? Fanimation offers a Limited Lifetime Warranty for the original purchaser.
Does this fan work with smart home systems? Yes, it features Wi-Fi enabled fanSync technology, allowing control via the fanSync app, compatible smart devices, and voice assistants.
