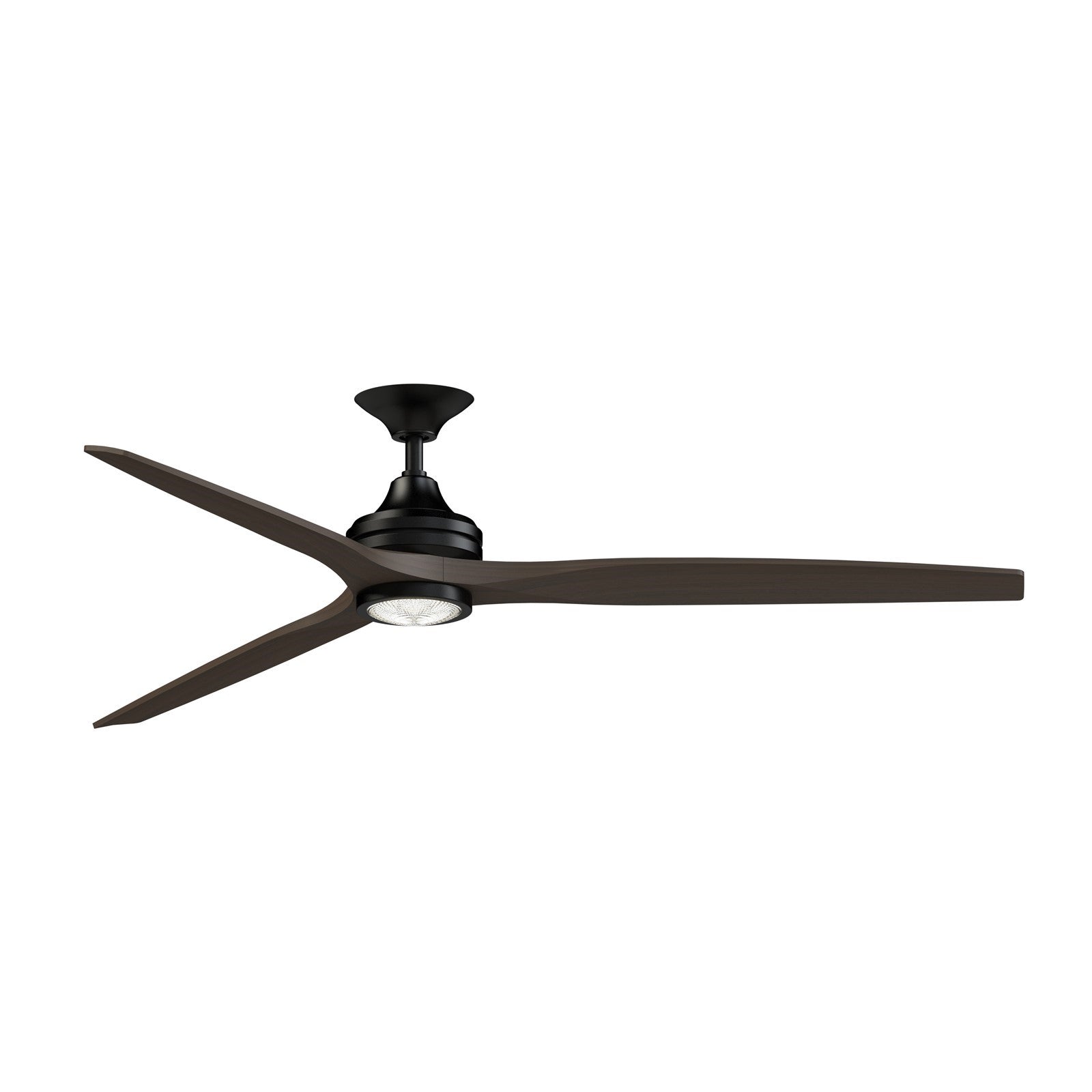

A 72-inch smart ceiling fan with an integrated LED light kit for large covered outdoor and indoor living spaces, finished in black with dark walnut blades.
The Spitfire DC Custom combines a sleek black motor housing with three dark walnut blades and an integrated 18-watt LED light kit, offering both powerful airflow and customizable lighting. The included CCT Select technology lets you shift from warm white to daylight, while the Wi-Fi enabled fanSync system and handheld remote put full control at your fingertips. Damp-rated for covered outdoor use, this fan is a versatile choice for patios, great rooms, and more.
Best for
- Covered patios and porches, where the damp-rated construction stands up to humidity without direct rain exposure
- Great rooms and open-plan living areas with ceilings of 8 feet or higher, thanks to the downrod mount
- Sunrooms and three-season rooms that need powerful air movement and smart control
- Large bedrooms and home offices where quiet, energy-efficient cooling is a priority
- Spaces that benefit from integrated lighting with adjustable color temperature
Not ideal for
- Outdoor areas directly exposed to rain or water - this fan is damp-rated, not wet-rated
- Small rooms under 12 x 12 feet, where the 72-inch blade sweep may feel oversized
- Low ceilings under 8 feet, as the downrod adds height
How bright is it?
The integrated 18-watt LED light kit delivers 1600 lumens - comparable to a 100-watt incandescent bulb - providing ample ambient light for most rooms. It's dimmable, so you can adjust brightness to suit the mood.
Light color and feel
With CCT Select technology, you can choose from five color temperatures: 2700K (warm white), 3000K (soft white), 3500K (neutral), 4000K (cool white), and 5000K (daylight). This flexibility lets you create the perfect atmosphere, from cozy evenings to bright task lighting. The high CRI of 90 ensures colors appear natural and vibrant.
Sizing and fit
With a 72-inch blade sweep and downrod mount, this fan is best for rooms at least 15 x 15 feet. It includes 6-inch and 12-inch downrods, allowing you to adjust the hanging height from 15.35 to 21.35 inches (with light kit). Optional downrods up to 72 inches are available for higher ceilings. The fan weighs 20.6 pounds.
Specifications
- Primary Finish: Black
- Blade Material: Buttonwood
- Blade Finish: Dark Walnut
- Shade Finish: Fresnel and Frosted
- Collection: Spitfire
- Blade Sweep: 72"
- Number of Blades: 3
- Blade Pitch: 14°
- Motor Type: DC
- Motor Size: 153 X 22
- Motor Reversible: True
- Number of Speeds: 6
- Reverse Switch Location: Control
- Light Kit Included: True
- Cap Included: True
- Included Control: TR360
- Control Type: Handheld
- 1 Bulb(s)
- Bulb Type: LED Module
- Bulb Base: Connector Pin
- Bulb Max Wattage: 18W
- Color Temperature: 2700, 3000, 3500, 4000, 5000K
- CRI: 90
- Lumens: 1600
- Voltage: 120V
- Avg CFM: 6237
- CFM High: 9639
- Avg Energy Use: 20W
- Max Slope: 20°
- Location Rating: Damp
- Safety Rating: UL Only Listed
- Warranty: Limited Lifetime Warranty
Frequently asked
Is the bulb included? Yes, the integrated LED light kit is included and features CCT Select technology.
Is it dimmable, and what dimmer should I use? Yes, the LED light is dimmable, and the included TR360 remote provides infinite light dimming. No wall dimmer is required.
Can I install this in a bathroom or outdoors? Yes, this fan is damp-rated, making it suitable for bathrooms and covered outdoor areas like patios and porches. It should not be directly exposed to rain or water.
What's the warranty? Fanimation offers a Limited Lifetime Warranty for the original purchaser, covering the motor. Contact Fanimation Tech Support at 1-888-567-2055 for assistance.
How do I control the fan and light? The included TR360 handheld remote controls 6 fan speeds, reversing, light dimming, and CCT selection. The fan also features Wi-Fi fanSync technology, allowing control via the fanSync app or voice assistants.
