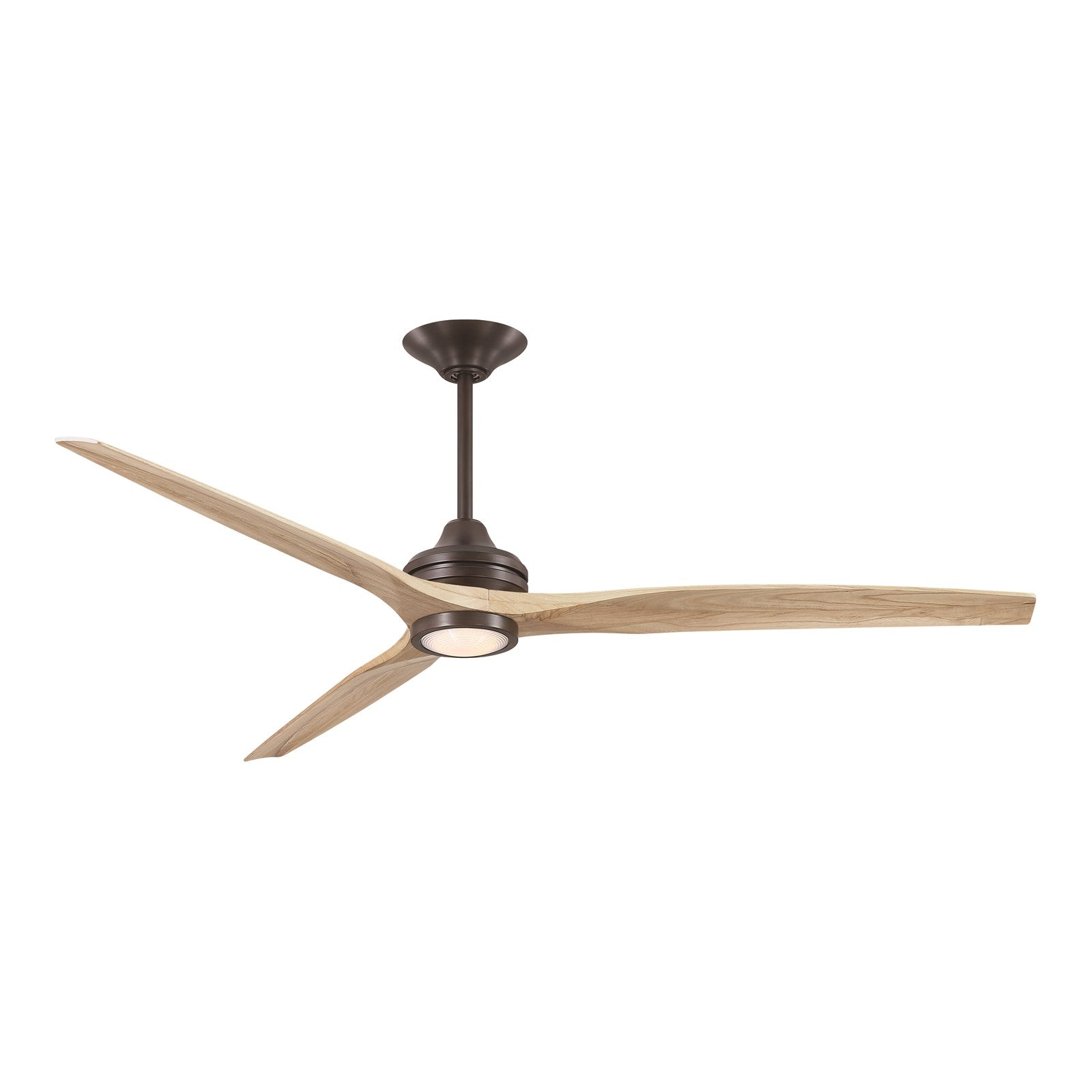

A 72-inch downrod smart ceiling fan for large covered patios and living rooms, finished in dark bronze with natural buttonwood blades and an integrated LED light kit.
The Spitfire DC Custom pairs a sleek dark bronze motor housing with three natural buttonwood blades for a warm, organic look that suits both indoor and covered outdoor spaces. Its 6-speed DC motor delivers powerful yet quiet airflow up to 9,639 CFM, while the included LED light kit offers five color temperatures from warm to daylight. With Wi-Fi fanSync control, a handheld remote, and a damp-rated design, this fan brings smart comfort and flexible lighting to any large room.
Best for
- Covered patios and porches, providing powerful airflow and ambient light in damp-rated outdoor spaces
- Large living rooms and great rooms, where a 72-inch sweep moves air effectively
- Sunrooms and enclosed porches, adding comfort and style in humid environments
- Bedrooms and home offices, with quiet DC motor operation for low-noise comfort
- Rooms with standard or slightly sloped ceilings, thanks to included 6-inch and 12-inch downrods
Not ideal for
- Spaces with ceilings under 8 feet, as the downrod adds height and may reduce headroom
- Outdoor areas directly exposed to rain or water, as it is damp-rated, not wet-rated
- Small rooms under 12x12 feet, where a 72-inch fan may be overpowering
How bright is it?
The integrated LED light kit produces 1,600 lumens - roughly equivalent to a 100W incandescent bulb - making it bright enough to illuminate a large living area or covered patio. It is dimmable, so you can adjust the light level to suit the mood.
Light color and feel
With CCT Select technology, you can choose from five color temperatures: 2700K (warm white), 3000K (soft white), 3500K (neutral), 4000K (cool white), and 5000K (daylight). This flexibility lets you shift from a cozy, warm glow to crisp, bright light. With a CRI of 90, colors appear vivid and accurate, ideal for spaces where you want true-to-life illumination.
Sizing and fit
This fan measures 72 inches in diameter and hangs 19.42 inches from the ceiling with the included 6-inch downrod. The 72-inch blade sweep is best suited for large rooms of at least 18x18 feet. The included 6-inch and 12-inch downrods allow for flexible installation on flat or slightly sloped ceilings (up to 20 degrees).
Specifications
- Primary Finish: Dark Bronze
- Blade Material: Buttonwood
- Blade Finish: Natural
- Shade Finish: Fresnel and Frosted
- Collection: Spitfire
- Blade Sweep: 72"
- Number of Blades: 3
- Blade Pitch: 14°
- Motor Type: DC
- Motor Size: 153 X 22
- Motor Reversible: True
- Number of Speeds: 6
- Reverse Switch Location: Control
- Light Kit Included: True
- Cap Included: True
- Included Control: TR360
- Control Type: Handheld
- 1 Bulb(s)
- Bulb Type: LED Module
- Bulb Base: Connector Pin
- Bulb Max Wattage: 18W
- Color Temperature: 2700, 3000, 3500, 4000, 5000K
- CRI: 90
- Lumens: 1600
- Voltage: 120V
- Avg CFM: 6237
- CFM High: 9639
- Avg Energy Use: 20W
- Max Slope: 20°
- Location Rating: Damp
- Safety Rating: UL Only Listed
- Warranty: Limited Lifetime Warranty
Frequently asked
Is the bulb included? Yes, the fan includes an integrated LED module, so no additional bulb is needed.
Is it dimmable, and what dimmer should I use? Yes, the light is dimmable via the included TR360 remote or the fanSync app. No separate wall dimmer is required.
Can I install this in a bathroom or outdoors? This fan is damp-rated, so it is suitable for bathrooms and covered outdoor areas like patios and porches, but it should not be directly exposed to rain or water.
What's the warranty? Fanimation offers a Limited Lifetime Warranty for the original purchaser.
What is the maximum slope for installation? This fan can be installed on ceilings with a slope up to 20 degrees, using the included downrods.
