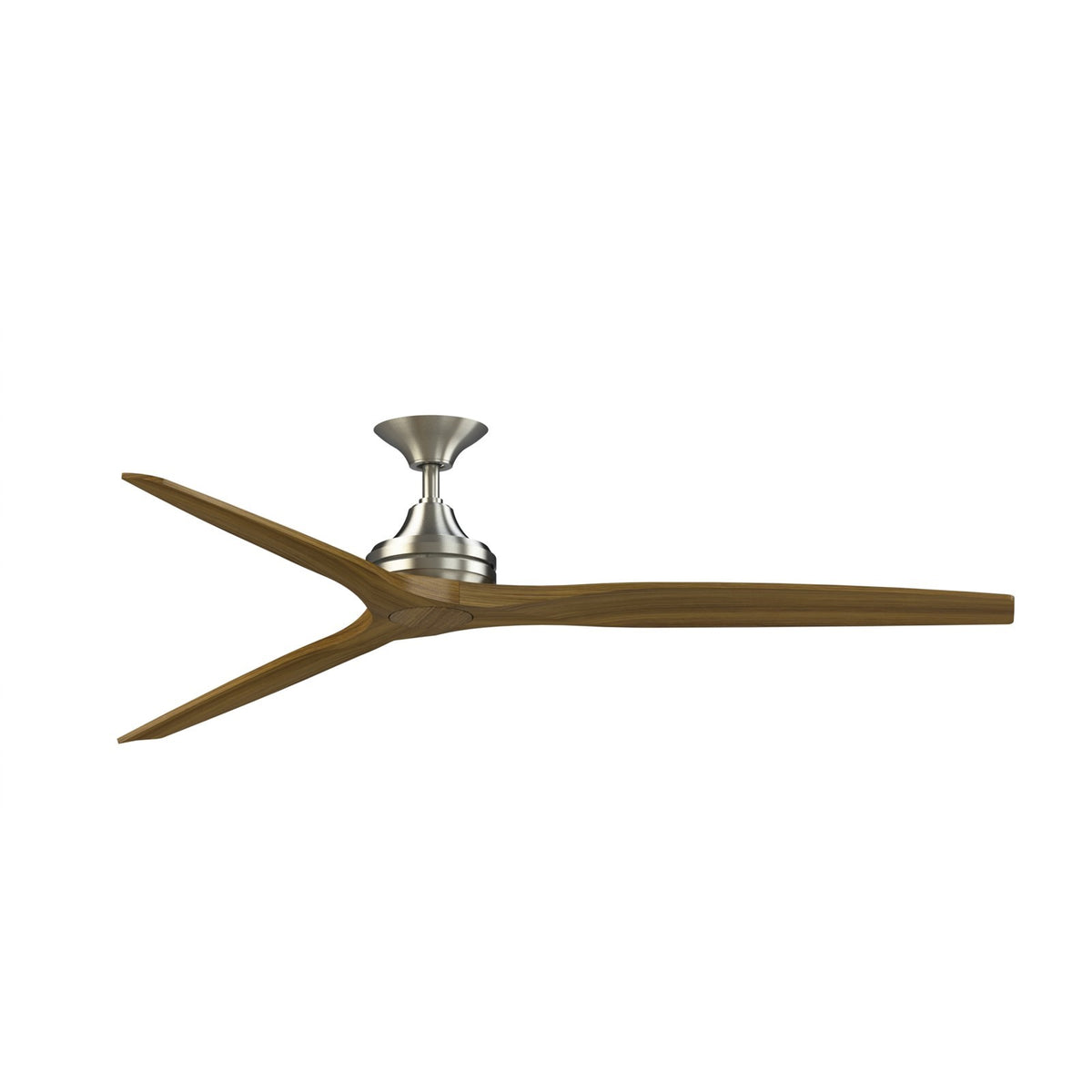

A 72-inch downrod smart ceiling fan from Fanimation's Spitfire DC Custom collection, finished in brushed nickel with koa blades, for large covered outdoor and indoor living spaces.
The Spitfire DC Custom pairs a streamlined brushed nickel motor housing with three koa blades to create a modern, low-profile silhouette that suits contemporary and transitional interiors. Its 6-speed DC motor delivers powerful yet quiet airflow up to 9,639 CFM, while the included TR360 handheld remote and Wi-Fi fanSync app give you full control from anywhere. Damp rated for covered outdoor use, this fan is built to handle humid environments without direct rain exposure.
Best for
- Covered patios and porches 15x15 ft or larger, where its 72-inch sweep moves air across the whole seating area
- Great rooms and open-plan living areas with high ceilings, using the included downrods to achieve optimal hanging height
- Sunrooms and three-season rooms that get humid in summer and need reliable, moisture-resistant airflow
- Bedrooms and home offices where quiet, energy-efficient operation matters more than maximum airflow
- Rooms with standard 8-10 ft ceilings, using the 6-inch or 12-inch downrod to position the fan 7-9 ft from the floor
Not ideal for
- Outdoor areas exposed directly to rain or water - this fan is damp rated, not wet rated
- Small rooms under 12x12 ft where a 72-inch fan would overwhelm the space
- Low ceilings under 8 ft where the downrod would make the fan hang too low
How bright is it?
This fan is compatible with an optional integrated 18-watt LED light kit (sold separately) that delivers 1,600 lumens - roughly equivalent to a 100W incandescent bulb, bright enough to illuminate a large living area or covered patio. The light kit is dimmable for adjustable ambiance.
Light color and feel
When paired with the optional light kit, you can choose from five color temperatures: 2700K (warm white), 3000K (soft white), 3500K (neutral white), 4000K (cool white), and 5000K (daylight). This CCT Select technology lets you shift from cozy, warm light to crisp, energizing daylight to match the mood and time of day. With a CRI of 90, colors appear vivid and accurate.
Sizing and fit
This fan measures 72 inches in diameter and hangs 19.69 inches from the ceiling with the included 12-inch downrod (or 13.69 inches with the 6-inch downrod). The downrod design allows for flexible installation on flat or slightly sloped ceilings (up to 20°). For best airflow, install in rooms at least 15x15 ft.
Specifications
- Primary Finish: Brushed Nickel
- Blade Material: Wood
- Blade Finish: Koa
- Collection: Spitfire
- Blade Sweep: 72"
- Number of Blades: 3
- Blade Pitch: 14°
- Motor Type: DC
- Motor Size: 153 X 22
- Motor Reversible: True
- Number of Speeds: 6
- Reverse Switch Location: Control
- Cap Included: True
- Included Control: TR360
- Control Type: Handheld
- Voltage: 120V
- Avg CFM: 6237
- CFM High: 9639
- Avg Energy Use: 20W
- Max Slope: 20°
- Location Rating: Damp
- Safety Rating: UL Only Listed
- Warranty: Limited Lifetime Warranty
Frequently asked
Is the bulb included? No, the light kit is sold separately. This fan is compatible with Fanimation's integrated 18-watt LED light kit.
Is it dimmable, and what dimmer should I use? Yes, the light kit is dimmable via the included TR360 remote or the fanSync app. No separate wall dimmer is needed.
Can I install this in a bathroom or outdoors? This fan is damp rated, so it's suitable for bathrooms, covered patios, porches, and sunrooms, but it should not be directly exposed to rain or water.
What's the warranty? Fanimation offers a Limited Lifetime Warranty for the original purchaser on the motor.
Does this fan work with voice assistants? Yes, via Wi-Fi fanSync technology, you can control the fan with compatible smart devices and voice assistants like Amazon Alexa or Google Assistant.
