A 72-inch downrod smart ceiling fan with an integrated marine-grade LED light kit, designed for covered outdoor and indoor spaces that need powerful, quiet airflow.

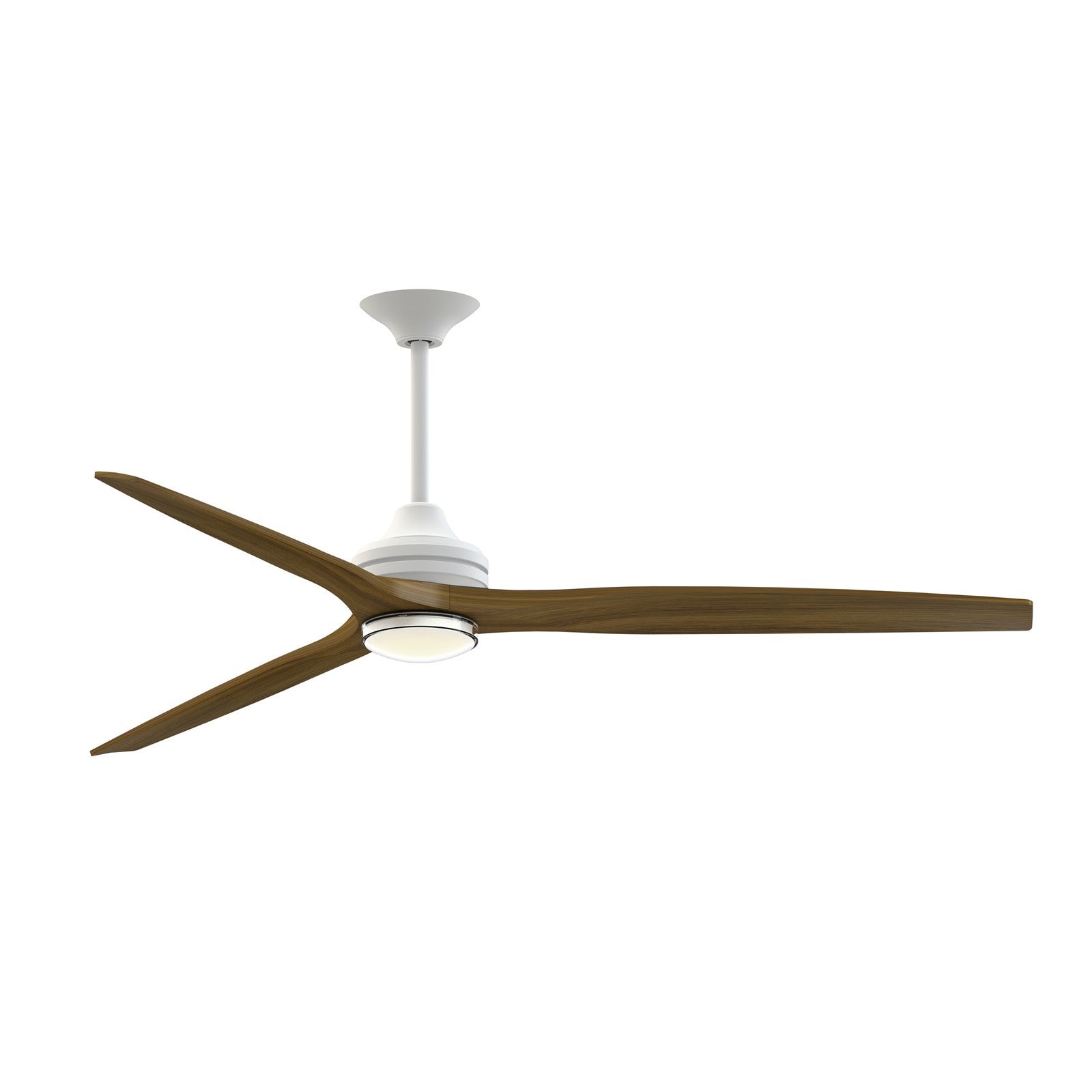

The Spitfire DC Custom pairs a sleek Matte White motor housing with three Koa blades, creating a warm, natural contrast that suits contemporary and transitional interiors. Its DC motor delivers up to 9,639 CFM of airflow on six speeds, while the integrated 24-watt LED light kit offers five color temperatures from warm to daylight. With Wi-Fi fanSync technology and the included TR360 remote, you get full control from your smartphone, voice assistant, or handheld remote. The double-walled glass shade is marine-grade, making it suitable for outdoor wet locations.
Best for
- Covered patios and porches, where damp-rated construction handles humidity without direct rain exposure
- Sunrooms and three-season rooms needing year-round comfort
- Bathrooms and laundry rooms with high moisture levels
- Living rooms and great rooms with ceilings at least 8 feet high
- Rooms with slightly sloped ceilings (up to 20°)
Not ideal for
- Outdoor areas directly exposed to rain or water - this fan is damp-rated, not wet-rated
- Rooms with ceilings under 7 feet, as the fan hangs 16 inches from the ceiling
- Spaces needing a light kit with higher than 2000 lumens output
How bright is it?
The integrated LED module produces 2000 lumens - roughly equivalent to a 150-watt incandescent bulb. This is sufficient for ambient lighting in larger rooms, but not as a primary task light for detailed work.
Light color and feel
Choose from five color temperatures - 2700K (warm white) to 5000K (daylight) - to match your mood and decor. With a CRI of 90, colors appear vivid and accurate. The light is dimmable via the remote, allowing you to set the perfect ambiance.
Sizing and fit
With a 72-inch blade sweep and an overall height of 16 inches (using the included 6-inch downrod), this fan is best for rooms at least 12 x 12 feet. The included 6-inch and 12-inch downrods allow for flexible installation on flat or slightly sloped ceilings.
Specifications
- Primary Finish: Matte White
- Blade Material: Wood
- Blade Finish: Koa
- Shade Finish: Clear
- Collection: Spitfire
- Blade Sweep: 72"
- Number of Blades: 3
- Blade Pitch: 14°
- Motor Type: DC
- Motor Size: 153 X 22
- Motor Reversible: True
- Number of Speeds: 6
- Reverse Switch Location: Control
- Light Kit Included: True
- Cap Included: True
- Included Control: TR360
- Control Type: Handheld
- 1 Bulb(s)
- Bulb Type: LED Module
- Bulb Base: Connector Pin
- Bulb Max Wattage: 24W
- Color Temperature: 2700, 3000, 3500, 4000, 5000K
- CRI: 90
- Lumens: 2000
- Voltage: 120V
- Avg CFM: 6237
- CFM High: 9639
- Avg Energy Use: 20W
- Max Slope: 20°
- Location Rating: Damp
- Safety Rating: UL Only Listed
- Warranty: Limited Lifetime Warranty
- Overall Dimensions: 72"(L)72"(W) x 16, 22"(H)
- Housing Diameter: 8.07"
- Canopy Dimensions: 8.76"(Dia) x 2.52"(H)
- Downrod Length: 6, 12"
- Leadwire Length: 14 motor & 15 light"
- Ceiling to Bottom (No Light Kit): 13.69, 19.69"
- Ceiling to Bottom (With Light Kit): 16, 22"
- Item Weight: 19.3 lbs.
Frequently asked
Is the bulb included? Yes, an integrated LED module is included.
Is it dimmable, and what dimmer should I use? Yes, the light is dimmable via the included TR360 remote or the fanSync app. No wall dimmer is needed.
Can I install this in a bathroom or outdoors? This fan is damp-rated, so it can be installed in bathrooms and covered outdoor areas. The marine-grade light kit is suitable for outdoor wet locations, but the fan itself should not be directly exposed to rain.
What's the warranty? Fanimation offers a Limited Lifetime Warranty for the original purchaser.
Does this fan work with voice assistants? Yes, the fanSync Wi-Fi technology allows control via compatible smart devices and voice assistants like Amazon Alexa and Google Assistant.
