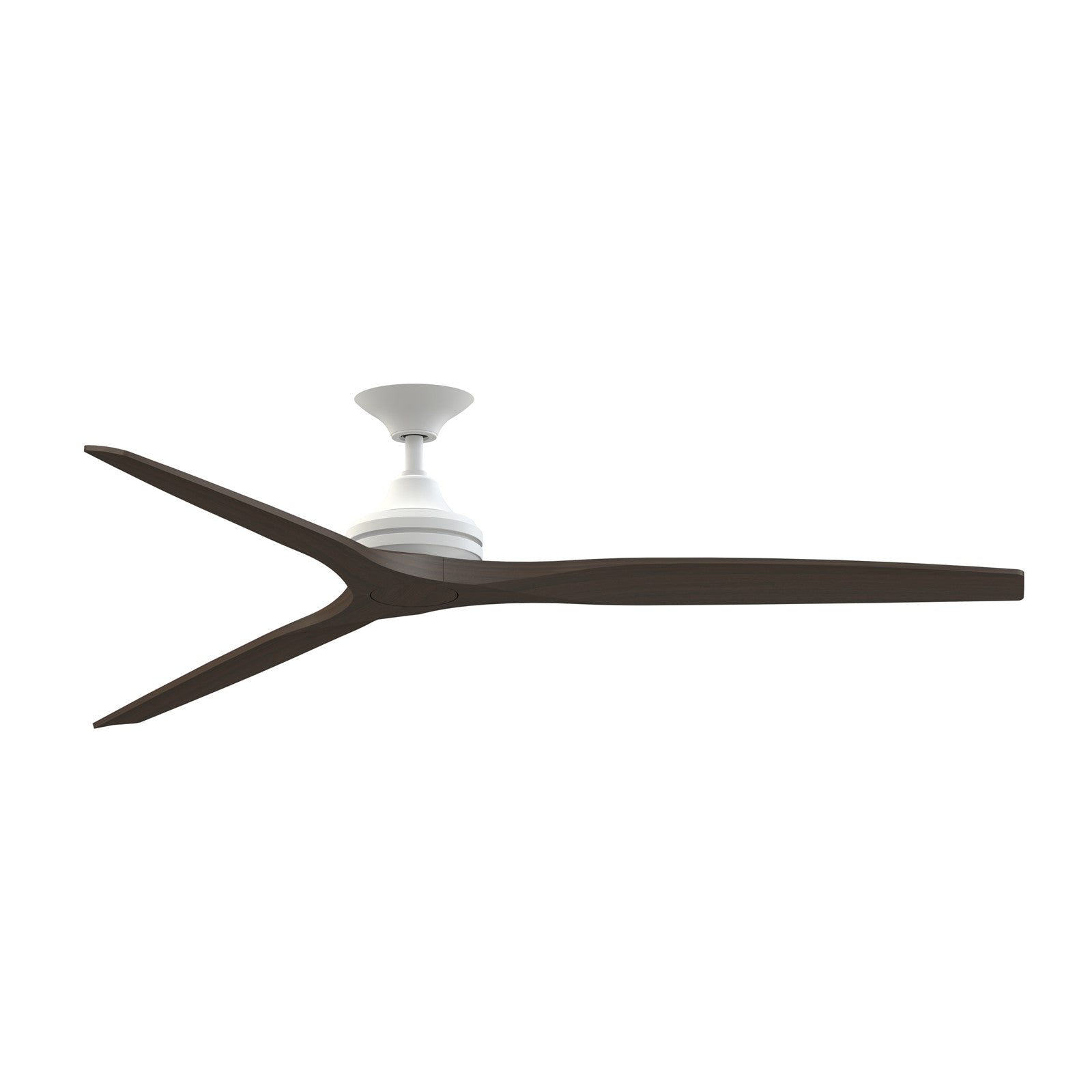

A 72-inch downrod smart ceiling fan from Fanimation's Spitfire DC Custom collection, finished in matte white with dark walnut blades, for large covered outdoor and indoor spaces.
The Spitfire DC Custom pairs a streamlined matte white motor housing with three dark walnut buttonwood blades, creating a modern, warm look that suits contemporary covered patios, sunrooms, and great rooms. Its powerful 6-speed DC motor delivers up to 9,639 CFM of airflow while staying quiet and energy-efficient, and the included TR360 remote plus Wi-Fi fanSync app control make it easy to adjust from anywhere. This downrod version includes a 6-inch and 12-inch downrod for flexible installation, and it's damp rated for covered outdoor use.
Best for
- Covered patios and porches, where its damp rating and moisture-resistant blades handle humidity without direct rain exposure
- Sunrooms and three-season rooms needing powerful, quiet airflow
- Large living rooms and great rooms with ceilings 8 feet or higher, using the included downrods to achieve optimal hanging height
- Bathrooms and laundry rooms where damp-rated fixtures are required
- Smart-home setups, thanks to Wi-Fi fanSync compatibility with voice assistants and the fanSync app
Not ideal for
- Spaces with ceilings under 8 feet, as the downrod adds height; consider the flush-mount version
- Outdoor areas exposed directly to rain or water, since it is damp rated, not wet rated
- Small rooms under 12x12 feet, where a 72-inch blade sweep may feel overpowering
How bright is it?
This fan does not include a light kit, but it is compatible with an optional integrated 18-watt LED light kit (sold separately) that outputs 1,600 lumens—about as bright as a 100W incandescent bulb—suitable for ambient lighting in medium to large rooms.
Light color and feel
When paired with the optional light kit, you can select from five color temperatures—2700K, 3000K, 3500K, 4000K, and 5000K—ranging from warm, cozy light to bright daylight. With a CRI of 90, colors appear vibrant and accurate, ideal for living spaces and kitchens.
Sizing and fit
This fan measures 72 inches in blade sweep and 19.69 inches from ceiling to bottom with the included 12-inch downrod. It includes both 6-inch and 12-inch downrods, and optional downrods up to 72 inches are available. The canopy is 8.76 inches in diameter, and it weighs 19.3 pounds.
Specifications
- Primary Finish: Matte White
- Blade Material: Buttonwood
- Blade Finish: Dark Walnut
- Collection: Spitfire
- Blade Sweep: 72"
- Number of Blades: 3
- Blade Pitch: 14°
- Motor Type: DC
- Motor Size: 153 X 22
- Motor Reversible: True
- Number of Speeds: 6
- Reverse Switch Location: Control
- Cap Included: True
- Included Control: TR360
- Control Type: Handheld
- Voltage: 120V
- Avg CFM: 6237
- CFM High: 9639
- Avg Energy Use: 20W
- Max Slope: 20°
- Location Rating: Damp
- Safety Rating: UL Only Listed
- Warranty: Limited Lifetime Warranty
- Overall Dimensions: 72"(L) x 72"(W) x 19.69"(H)
- Housing Diameter: 8.07"
- Canopy Dimensions: 8.76"(Dia) x 2.52"(H)
- Downrod Length: 6, 12"
- Leadwire Length: 14 motor & 15 light"
- Ceiling to Bottom (No Light Kit): 13.69, 19.69"
- Item Weight: 19.3 lbs.
Frequently asked
Is the bulb included? No, this fan does not include a light kit; it is compatible with an optional integrated LED light kit sold separately.
Is it dimmable, and what dimmer should I use? The fan speed is adjustable via the included remote, and the optional light kit is dimmable. Use the remote or fanSync app for dimming; no wall dimmer is required.
Can I install this in a bathroom or outdoors? Yes, it is damp rated for covered outdoor areas, bathrooms, and laundry rooms, but should not be directly exposed to rain or water.
What's the warranty? Limited Lifetime Warranty for the original purchaser, covering the motor. Contact Fanimation Tech Support at 1-888-567-2055.
Does this fan work with sloped ceilings? Yes, it supports slopes up to 20 degrees, and optional downrods up to 72 inches are available for higher ceilings.
