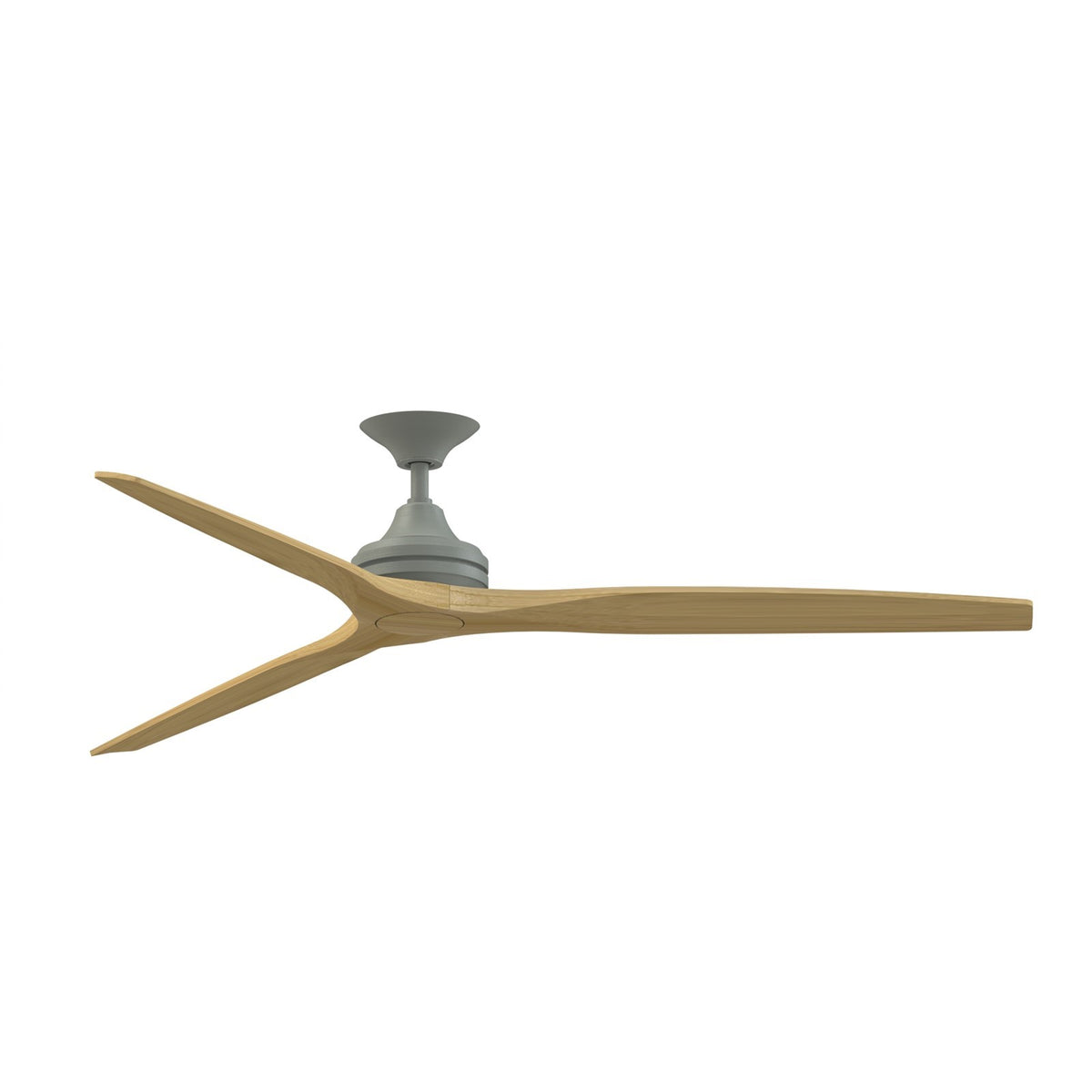

A 72-inch smart ceiling fan for covered patios, porches, and large living spaces, finished in antique graphite with natural buttonwood blades.
The Spitfire DC Custom pairs a streamlined antique graphite motor with three natural buttonwood blades, delivering powerful yet quiet airflow up to 9,639 CFM from its 6-speed DC motor. With Wi-Fi enabled fanSync technology, you can control the fan from your smartphone, voice assistant, or the fanSync app. The included TR360 handheld remote manages speed, reversing, and optional light dimming, while Fanimation's KwikWire technology simplifies installation.
Best for
- Covered patios and porches where damp-rated fixtures are required
- Great rooms and open-plan living areas with high ceilings
- Sunrooms and three-season rooms needing year-round comfort
- Bedrooms and home offices where quiet operation matters
Not ideal for
- Spaces with ceilings under 8 feet if you need a flush mount (this version uses downrods)
- Areas directly exposed to rain or water - damp rated, not wet rated
- Small rooms under 12x12 feet where a 72-inch sweep may be overpowering
How bright is it?
This fan is compatible with an optional integrated 18-watt LED light kit (sold separately) that delivers 1600 lumens - roughly equivalent to a 100-watt incandescent bulb, suitable for ambient lighting in medium to large rooms.
Light color and feel
When the optional light kit is added, CCT Select technology lets you choose from five color temperatures - 2700K (warm white) to 5000K (daylight) - so you can tailor the ambiance from cozy to crisp. With a CRI of 90, colors appear vibrant and accurate.
Sizing and fit
With a 72-inch blade sweep and included 6-inch and 12-inch downrods, this fan hangs 19.69 inches from the ceiling. The overall dimensions are 72 inches wide by 72 inches deep by 19.69 inches high. Optional downrods up to 72 inches are available for higher ceilings.
Specifications
- Primary Finish: Antique Graphite
- Blade Material: Buttonwood
- Blade Finish: Natural
- Collection: Spitfire
- Blade Sweep: 72"
- Number of Blades: 3
- Blade Pitch: 14°
- Motor Type: DC
- Motor Size: 153 X 22
- Motor Reversible: True
- Number of Speeds: 6
- Reverse Switch Location: Control
- Cap Included: True
- Included Control: TR360
- Control Type: Handheld
- Voltage: 120V
- Avg CFM: 6237
- CFM High: 9639
- Avg Energy Use: 20W
- Max Slope: 20°
- Location Rating: Damp
- Safety Rating: UL Only Listed
- Warranty: Limited Lifetime Warranty
Frequently asked
Is the bulb included? No, the light kit is sold separately. This fan is compatible with Fanimation's integrated 18-watt LED light kit with CCT Select technology.
Is it dimmable, and what dimmer should I use? The optional light kit is dimmable via the included TR360 remote, which offers infinite light dimming. No wall dimmer is required.
Can I install this in a bathroom or outdoors? Yes, it is damp rated for indoor and covered outdoor spaces, including bathrooms, but should not be directly exposed to rain or water.
What's the warranty? Fanimation offers a Limited Lifetime Warranty for the original purchaser. Contact Fanimation Tech Support at 1-888-567-2055 for assistance.
Does this fan work with sloped ceilings? Yes, it is designed for flat or slightly sloped ceilings up to 20 degrees. Optional downrods are available for higher ceilings.
