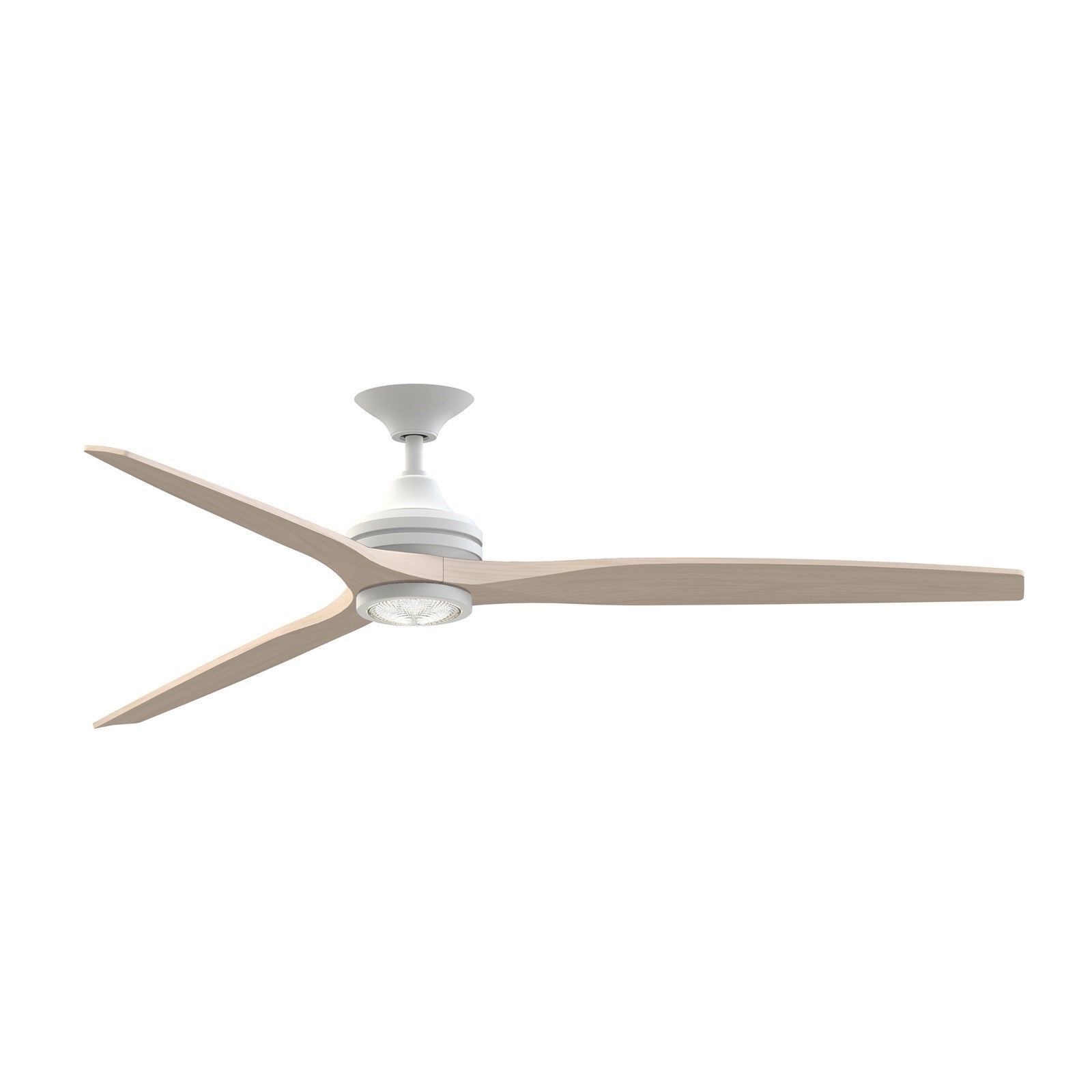

A 72-inch smart ceiling fan with an integrated LED light kit for large covered patios, porches, and great rooms, finished in matte white with white washed blades.
The Spitfire DC Custom pairs a streamlined matte white motor with three white washed buttonwood blades for a clean, contemporary look that suits both indoor and covered outdoor spaces. Its 6-speed DC motor delivers powerful yet quiet airflow up to 9,639 CFM, and the included TR360 remote plus Wi-Fi fanSync app control make it easy to adjust from anywhere. This version includes an 18-watt LED light kit with CCT Select technology, letting you choose from five color temperatures. Damp rated for covered outdoor use, this fan is built to handle humidity while keeping your space comfortable year-round.
Best for
- Covered patios and porches, providing strong airflow and ambient lighting for large seating areas
- Great rooms and open-plan living areas with ceilings at least 8 feet high
- Sunrooms and screened porches where moisture resistance matters
- Bedrooms and home offices needing quiet, energy-efficient air movement and adjustable lighting
- Rooms with standard 8-9 foot ceilings using the included downrods
Not ideal for
- Spaces with ceilings under 8 feet if you prefer a flush mount for extra clearance
- Areas directly exposed to rain or water - this fan is damp rated, not wet rated
- Small rooms under 12x12 feet where a 72-inch sweep may be overpowering
How bright is it?
The integrated 18-watt LED light kit provides 1,600 lumens - roughly equivalent to a 100-watt incandescent bulb, suitable for ambient lighting in a large room.
Light color and feel
The light kit features CCT Select technology with five color temperatures - 2700K (warm white) to 5000K (daylight) - so you can shift from cozy to bright. It is dimmable and has a CRI of 90 for accurate color rendering.
Sizing and fit
This downrod fan has a blade sweep of 72 inches and an overall height of 19.42 inches with the included 6-inch downrod (12-inch also included). The canopy is 8.76 inches in diameter, and the fan weighs 20.6 lbs. It is designed for flat or slightly sloped ceilings (up to 20°).
Specifications
- Primary Finish: Matte White
- Blade Material: Buttonwood
- Blade Finish: White Washed
- Shade Finish: Fresnel and Frosted
- Collection: Spitfire
- Blade Sweep: 72"
- Number of Blades: 3
- Blade Pitch: 14°
- Motor Type: DC
- Motor Size: 153 X 22
- Motor Reversible: True
- Number of Speeds: 6
- Reverse Switch Location: Control
- Light Kit Included: True
- Cap Included: True
- Included Control: TR360
- Control Type: Handheld
- 1 Bulb(s)
- Bulb Type: LED Module
- Bulb Base: Connector Pin
- Bulb Max Wattage: 18W
- Color Temperature: 2700, 3000, 3500, 4000, 5000K
- CRI: 90
- Lumens: 1600
- Voltage: 120V
- Avg CFM: 6237
- CFM High: 9639
- Avg Energy Use: 20W
- Max Slope: 20°
- Location Rating: Damp
- Safety Rating: UL Only Listed
- Warranty: Limited Lifetime Warranty
- Overall Dimensions: 72"(L) x 72"(W) x 19.42"(H)
- Housing Diameter: 8.07"
- Canopy Dimensions: 8.76"(Dia) x 2.52"(H)
- Downrod Length: 6, 12"
- Leadwire Length: 14 motor & 15 light"
- Ceiling to Bottom (No Light Kit): 13.69, 19.69"
- Ceiling to Bottom (With Light Kit): 15.35, 21.35"
- Item Weight: 20.6 lbs.
Frequently asked
Is the bulb included? Yes, the integrated LED light kit is included and the LED module is built in.
Is it dimmable, and what dimmer should I use? Yes, the light is dimmable via the included TR360 remote or the fanSync app.
Can I install this in a bathroom or outdoors? Yes, this fan is damp rated for covered outdoor areas and humid indoor spaces like bathrooms and laundry rooms, but it should not be directly exposed to rain or water.
What's the warranty? Fanimation offers a Limited Lifetime Warranty for the original purchaser.
Does this fan work with sloped ceilings? Yes, it is designed for flat or slightly sloped ceilings up to 20°.
