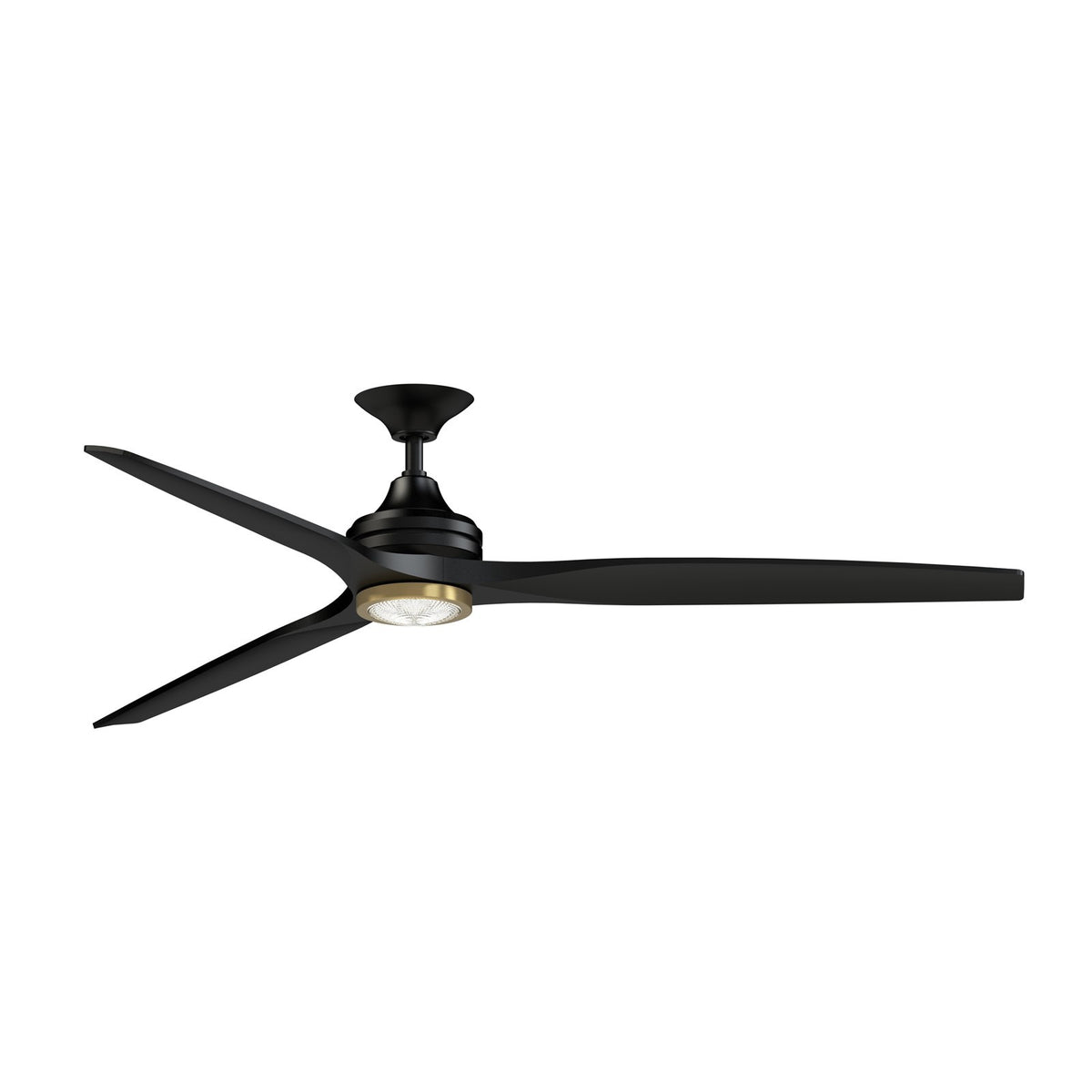

A 72-inch smart ceiling fan with an integrated LED light kit, finished in black and brushed satin brass with black blades, for covered outdoor and large indoor spaces.
The Spitfire DC Custom pairs a powerful 6-speed DC motor with a versatile 18-watt LED light kit featuring CCT Select technology. You can choose from five color temperatures, from warm white to daylight, and control everything via the included TR360 remote or the fanSync app. Its damp-rated construction makes it suitable for covered patios and sunrooms.
Best for
- Covered patios and porches, where damp-rated construction handles humidity
- Great rooms and open-plan living areas needing high airflow and light
- Sunrooms and three-season rooms with low ceilings
- Bedrooms and home offices where quiet operation matters
- Spaces with 8-foot ceilings, thanks to the included downrods
Not ideal for
- Outdoor areas directly exposed to rain or water
- Rooms smaller than 12x12 ft, where a 72-inch sweep may be overpowering
- Sloped ceilings beyond 20 degrees
How bright is it?
The integrated 18-watt LED light kit produces 1,600 lumens - roughly equivalent to a 100-watt incandescent bulb, bright enough for ambient lighting in most rooms.
Light color and feel
With CCT Select technology, you can choose from five color temperatures - 2700K warm white to 5000K daylight - so you can shift from cozy evenings to bright, energizing light. The high CRI of 90 ensures colors appear natural and accurate.
Sizing and fit
The fan measures 72 inches in diameter and hangs 19.42 inches from the ceiling with the included 6-inch downrod. It includes both 6-inch and 12-inch downrods for flexible installation, and optional downrods up to 72 inches are available.
Specifications
- Primary Finish: Black/Brushed Satin Brass
- Blade Material: Buttonwood
- Blade Finish: Black
- Shade Finish: Fresnel and Frosted
- Collection: Spitfire
- Blade Sweep: 72"
- Number of Blades: 3
- Blade Pitch: 14°
- Motor Type: DC
- Motor Size: 153 X 22
- Motor Reversible: True
- Number of Speeds: 6
- Reverse Switch Location: Control
- Light Kit Included: True
- Cap Included: True
- Included Control: TR360
- Control Type: Handheld
- 1 Bulb(s)
- Bulb Type: LED Module
- Bulb Base: Connector Pin
- Bulb Max Wattage: 18W
- Color Temperature: 2700, 3000, 3500, 4000, 5000K
- CRI: 90
- Lumens: 1600
- Voltage: 120V
- Avg CFM: 6237
- CFM High: 9639
- Avg Energy Use: 20W
- Max Slope: 20°
- Location Rating: Damp
- Safety Rating: UL Only Listed
- Warranty: Limited Lifetime Warranty
- Overall Dimensions: 72"(L) x 72"(W) x 19.42"(H)
- Housing Diameter: 8.07"
- Canopy Dimensions: 8.76"(Dia) x 2.52"(H)
- Downrod Length: 6, 12"
- Leadwire Length: 14 motor & 15 light"
- Ceiling to Bottom (No Light Kit): 13.69, 19.69"
- Ceiling to Bottom (With Light Kit): 15.35, 21.35"
- Item Weight: 20.6 lbs.
Frequently asked
Is the bulb included? Yes, the integrated LED light kit is included.
Is it dimmable, and what dimmer should I use? The light is dimmable via the included remote.
Can I install this in a bathroom or outdoors? Yes, it is damp rated for covered outdoor areas and bathrooms, but should not be directly exposed to rain or water.
What's the warranty? Limited Lifetime Warranty for the original purchaser.
Does it work with smart home systems? Yes, it is Wi-Fi enabled and works with the fanSync app and voice assistants.
