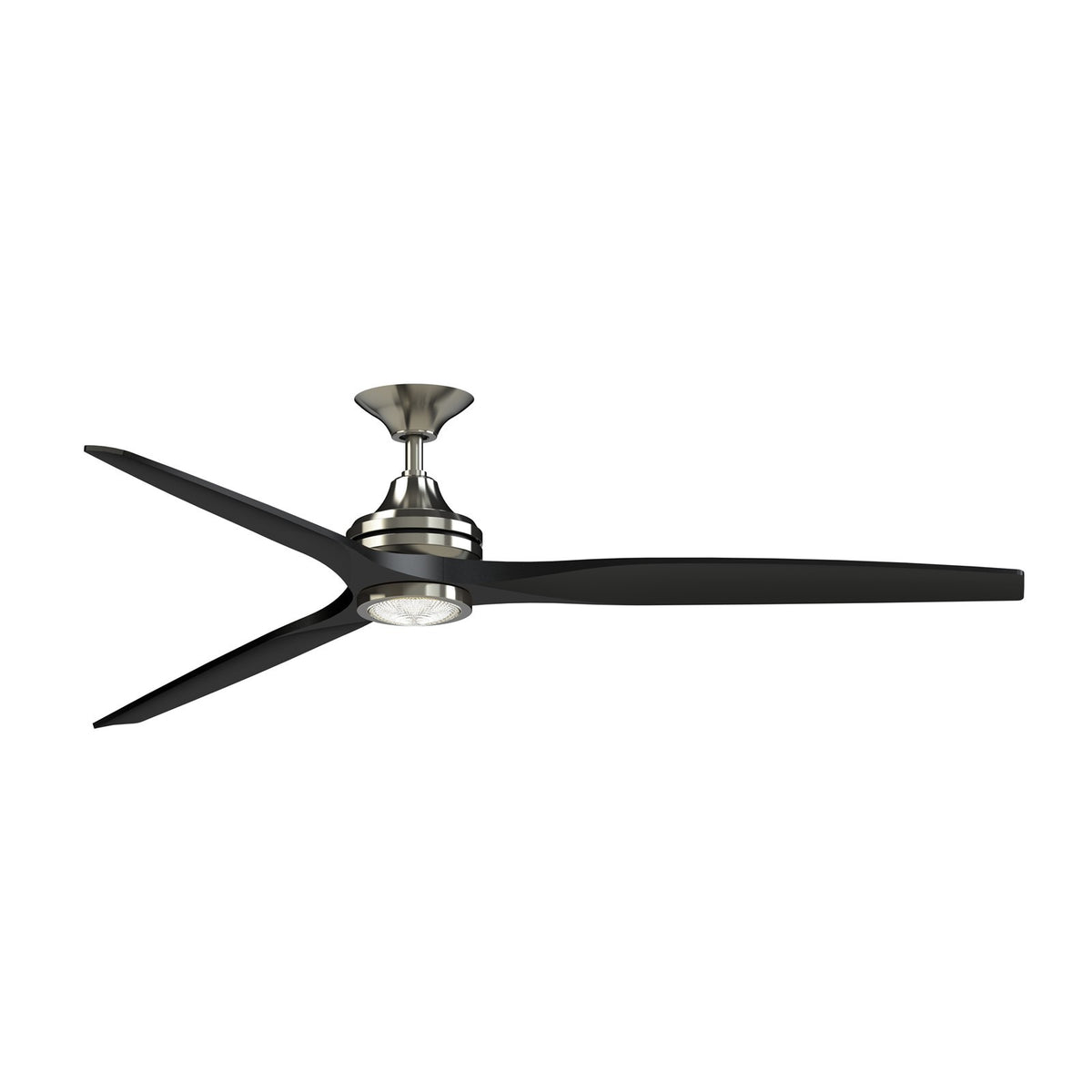

A 72-inch smart ceiling fan with integrated LED light kit for covered outdoor and indoor spaces, finished in brushed nickel with black blades.
The Spitfire DC Custom combines powerful airflow with customizable lighting. Its 6-speed DC motor moves up to 9,639 CFM, while the integrated 18-watt LED light kit offers five color temperatures from warm to daylight. The brushed nickel motor housing pairs with three black buttonwood blades for a modern look. Wi-Fi enabled fanSync technology and the included TR360 remote give you full control over fan speed, light dimming, and color temperature.
Best for
- Covered patios and porches, where damp-rated construction stands up to humidity
- Sunrooms and large living areas needing both airflow and light
- Bedrooms and home offices, with quiet operation and adjustable light color
- Rooms with standard or slightly sloped ceilings (up to 20°)
Not ideal for
- Areas directly exposed to rain or water, as this fan is damp-rated, not wet-rated
- Small rooms under 10x10 ft, where a 72-inch sweep may be overpowering
- Very low ceilings under 7 ft, as the downrod adds height
How bright is it?
The integrated LED light kit delivers 1600 lumens—comparable to a 100-watt incandescent bulb—enough to illuminate a large living area or covered patio.
Light color and feel
Choose from five color temperatures—2700K (warm white) to 5000K (daylight)—to match your mood and decor. The high CRI of 90 ensures colors appear vibrant and true. The light is dimmable via the remote.
Sizing and fit
This fan measures 72 inches in diameter and hangs 19.42 inches from the ceiling with the included 6-inch downrod. It includes a 12-inch downrod for higher ceilings, and optional downrods up to 72 inches are available. Designed for flat or sloped ceilings up to 20°.
Specifications
- Primary Finish: Brushed Nickel
- Blade Material: Buttonwood
- Blade Finish: Black
- Shade Finish: Fresnel and Frosted
- Collection: Spitfire
- Blade Sweep: 72"
- Number of Blades: 3
- Blade Pitch: 14°
- Motor Type: DC
- Motor Size: 153 X 22
- Motor Reversible: True
- Number of Speeds: 6
- Reverse Switch Location: Control
- Light Kit Included: True
- Cap Included: True
- Included Control: TR360
- Control Type: Handheld
- 1 Bulb(s)
- Bulb Type: LED Module
- Bulb Base: Connector Pin
- Bulb Max Wattage: 18W
- Color Temperature: 2700, 3000, 3500, 4000, 5000K
- CRI: 90
- Lumens: 1600
- Voltage: 120V
- Avg CFM: 6237
- CFM High: 9639
- Avg Energy Use: 20W
- Max Slope: 20°
- Location Rating: Damp
- Safety Rating: UL Only Listed
- Warranty: Limited Lifetime Warranty
Frequently asked
Is the bulb included? Yes, the integrated LED light kit is included and features CCT Select technology.
Is it dimmable, and what dimmer should I use? Yes, the light is dimmable via the included TR360 remote. No additional dimmer is needed.
Can I install this in a bathroom or outdoors? Yes, this fan is damp-rated, making it suitable for covered outdoor areas, bathrooms, and laundry rooms. However, it should not be directly exposed to rain or water.
What's the warranty? Fanimation offers a Limited Lifetime Warranty for the original purchaser.
Does this fan work with voice assistants? Yes, with the Wi-Fi enabled fanSync technology, you can control the fan and light via compatible smart devices and voice assistants.
