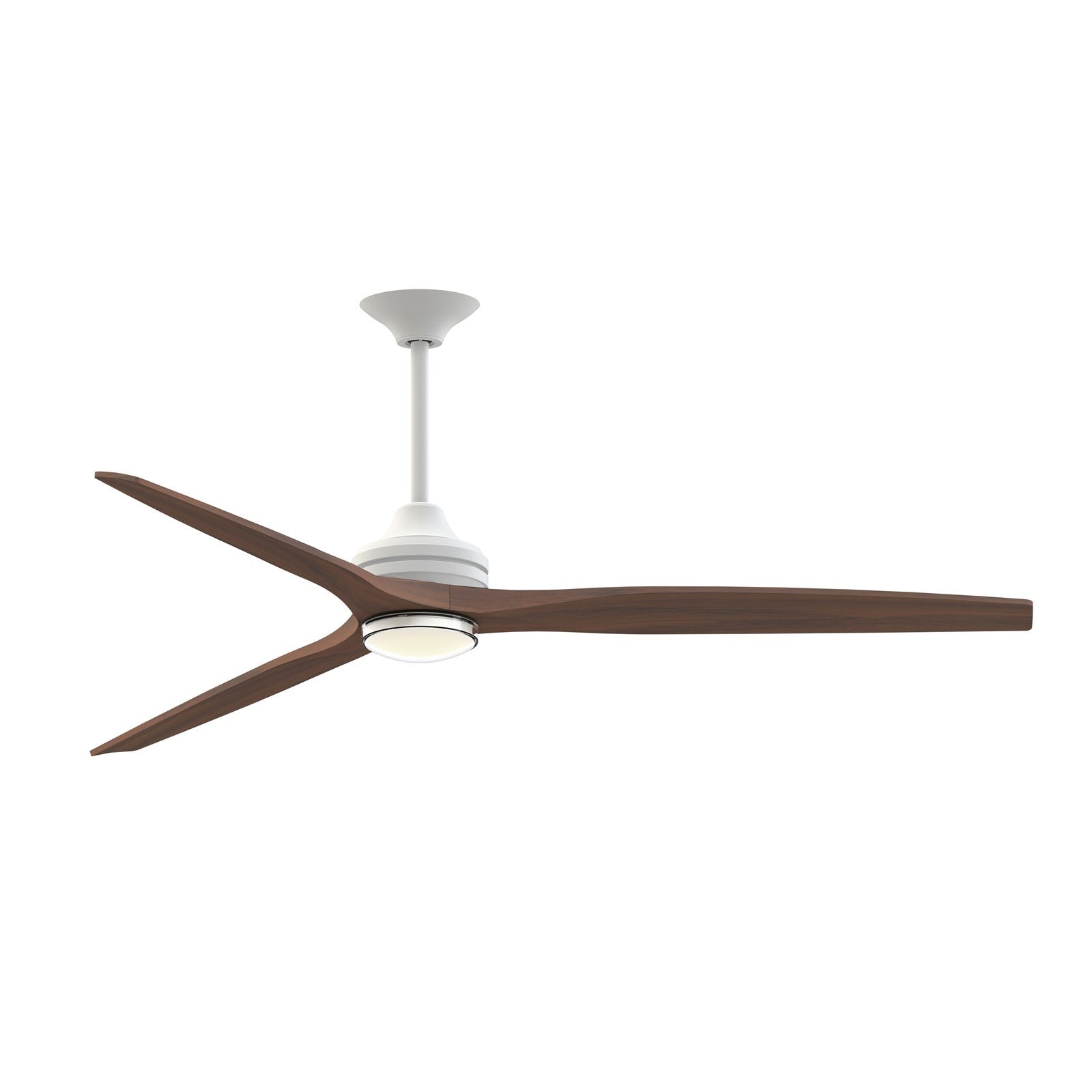

A 72-inch smart ceiling fan with an integrated LED light kit, designed for large covered outdoor and indoor spaces, finished in matte white with whiskey wood blades.
The Spitfire DC Custom from Fanimation pairs a sleek matte white motor with three whiskey wood blades for a modern, organic look. Its 6-speed DC motor delivers powerful airflow up to 9,639 CFM while staying quiet and energy-efficient. The included LED light kit features CCT Select technology, letting you choose from five color temperatures, and the fan is controlled via the included TR360 remote or the fanSync app with voice assistant compatibility.
Best for
- Covered patios and porches, where the damp-rated construction handles humidity and moisture
- Sunrooms and large living areas with ceilings 8 ft or higher, using the included downrods
- Bedrooms and home offices needing quiet, energy-efficient airflow with customizable light
- Outdoor kitchens and pergolas, providing both breeze and illumination for evening gatherings
- Smart home setups, with Wi-Fi control via fanSync and voice assistants
Not ideal for
- Directly exposed outdoor areas without a roof or cover - this fan is damp-rated, not wet-rated, and should not be exposed to rain
- Rooms with ceilings under 7 ft, as the fan requires a minimum hanging height for safe operation
- Small spaces under 12x12 ft, where the 72-inch blade sweep may be overpowering
How bright is it?
The integrated LED module produces 2000 lumens - roughly equivalent to a 150W incandescent bulb. This is bright enough to serve as the primary light in a large living area or covered patio, and it's dimmable for softer ambient lighting.
Light color and feel
With CCT Select technology, you can choose from 2700K (warm white), 3000K (soft white), 3500K (neutral), 4000K (cool white), or 5000K (daylight). This flexibility lets you shift from a cozy, warm glow to crisp, bright light. The 90 CRI ensures colors appear vivid and accurate.
Sizing and fit
This fan has a 72-inch blade sweep and an overall height of 16 inches with the light kit (using the 6-inch downrod) or 22 inches (with the 12-inch downrod). It's designed for flat or slightly sloped ceilings up to 20 degrees. The included downrods allow for a hanging height of 7 to 9 feet, ideal for most rooms.
Specifications
- Primary Finish: Matte White
- Blade Material: Buttonwood
- Blade Finish: Whiskey Wood
- Shade Finish: Clear
- Collection: Spitfire
- Blade Sweep: 72"
- Number of Blades: 3
- Blade Pitch: 14°
- Motor Type: DC
- Motor Size: 153 X 22
- Motor Reversible: True
- Number of Speeds: 6
- Reverse Switch Location: Control
- Light Kit Included: True
- Cap Included: True
- Included Control: TR360
- Control Type: Handheld
- 1 Bulb(s)
- Bulb Type: LED Module
- Bulb Base: Connector Pin
- Bulb Max Wattage: 24W
- Color Temperature: 2700, 3000, 3500, 4000, 5000K
- CRI: 90
- Lumens: 2000
- Voltage: 120V
- Avg CFM: 6237
- CFM High: 9639
- Avg Energy Use: 20W
- Max Slope: 20°
- Location Rating: Damp
- Safety Rating: UL Only Listed
- Warranty: Limited Lifetime Warranty
Frequently asked
Is the bulb included? Yes, the LED module is integrated and included.
Is it dimmable, and what dimmer should I use? Yes, it is dimmable via the included TR360 remote or the fanSync app. No wall dimmer is required.
Can I install this in a bathroom or outdoors? It is damp-rated, so it can be used in bathrooms and covered outdoor areas, but not in direct rain.
What's the warranty? Limited Lifetime Warranty for the original purchaser.
Does it work with voice assistants? Yes, via Wi-Fi and the fanSync app, it works with Amazon Alexa and Google Assistant.
