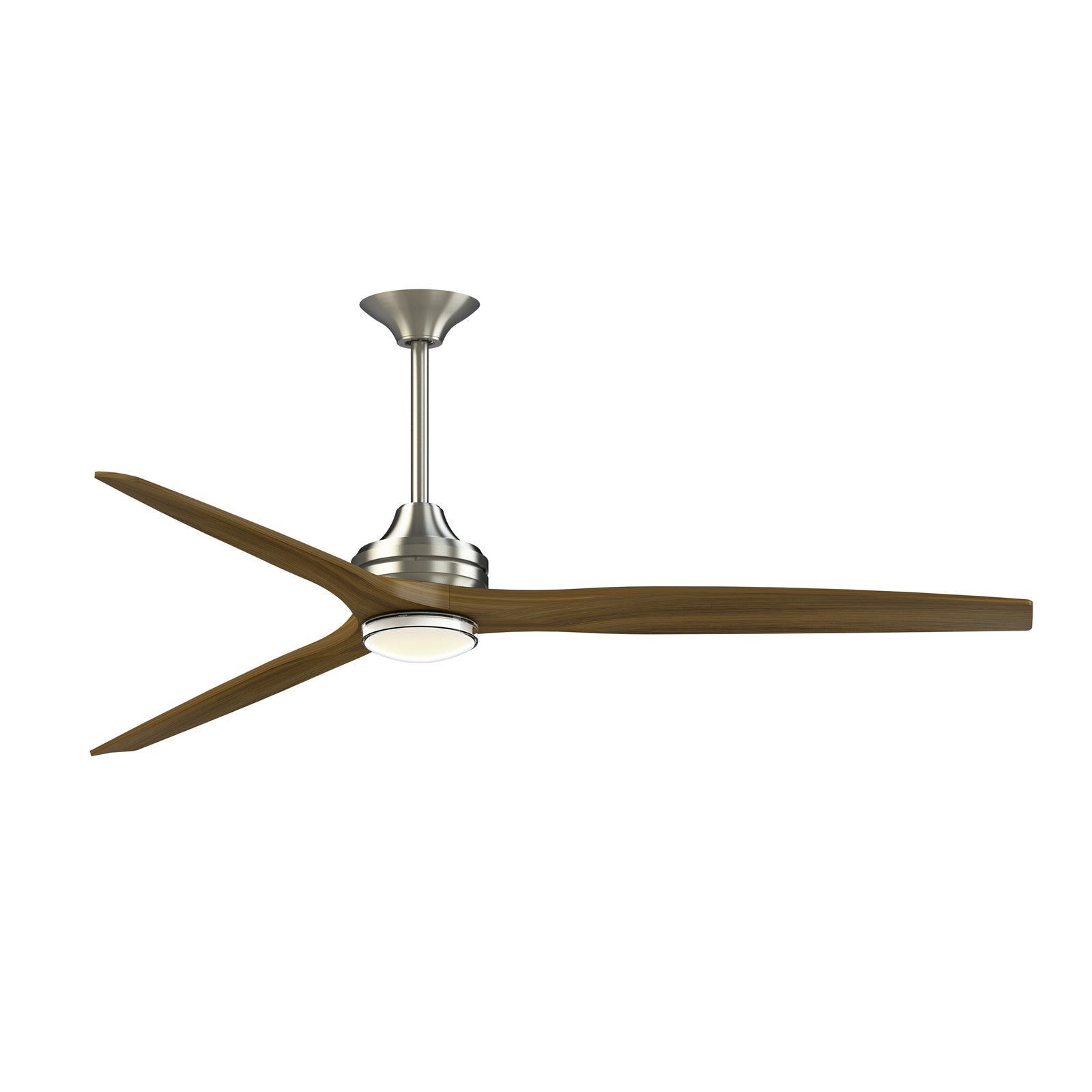

A 72-inch smart ceiling fan with an integrated LED light kit, designed for large covered outdoor and indoor spaces, finished in brushed nickel with Koa wood blades.
The Spitfire DC Custom pairs a sleek brushed nickel motor with three Koa wood blades for a warm, modern look that suits contemporary and transitional homes. Its powerful DC motor moves up to 9,639 CFM of air quietly, while the integrated double-walled marine-grade light kit delivers bright, adjustable light. With Wi-Fi fanSync, you can control the fan and light from your smartphone or voice assistant, and the included handheld remote puts all functions at your fingertips.
Best for
- Covered patios, porches, and sunrooms where damp-rated fixtures are required
- Great rooms and open-plan living areas with ceilings 8 feet or higher
- Bedrooms and home offices needing quiet, energy-efficient airflow
- Spaces where you want both cooling and adjustable lighting from one fixture
- Smart-home setups with voice control via Alexa or Google Assistant
Not ideal for
- Areas directly exposed to rain or water - this fan is damp-rated, not wet-rated
- Rooms with ceilings under 7 feet, as the downrod adds height
- Small rooms under 12x12 feet where a 72-inch sweep is overpowering
How bright is it?
This light kit outputs 2000 lumens - roughly equivalent to a 150W incandescent bulb - making it bright enough to illuminate a large living area or covered patio. It's ideal as a primary light source for most rooms.
Light color and feel
With CCT Select technology, you can choose from five color temperatures: 2700K (warm white), 3000K (soft white), 3500K (neutral), 4000K (cool white), and 5000K (daylight). This lets you shift from a cozy, warm glow to crisp, energizing daylight. With a CRI of 90, colors appear vivid and accurate, perfect for spaces where you want true-to-life lighting.
Sizing and fit
This fan has a 72-inch blade sweep and comes with 6-inch and 12-inch downrods, allowing you to adjust the hanging height. The overall height with the light kit ranges from 16 to 22 inches, depending on the downrod used. It's designed for flat or sloped ceilings up to 20 degrees. For optimal airflow, the fan should hang 7 to 9 feet above the floor.
Specifications
- Primary Finish: Brushed Nickel
- Blade Material: Wood
- Blade Finish: Koa
- Shade Finish: Clear
- Collection: Spitfire
- Blade Sweep: 72"
- Number of Blades: 3
- Blade Pitch: 14°
- Motor Type: DC
- Motor Size: 153 X 22
- Motor Reversible: True
- Number of Speeds: 6
- Reverse Switch Location: Control
- Light Kit Included: True
- Cap Included: True
- Included Control: TR360
- Control Type: Handheld
- 1 Bulb(s)
- Bulb Type: LED Module
- Bulb Base: Connector Pin
- Bulb Max Wattage: 24W
- Color Temperature: 2700, 3000, 3500, 4000, 5000K
- CRI: 90
- Lumens: 2000
- Voltage: 120V
- Avg CFM: 6237
- CFM High: 9639
- Avg Energy Use: 20W
- Max Slope: 20°
- Location Rating: Damp
- Safety Rating: UL Only Listed
- Warranty: Limited Lifetime Warranty
Frequently asked
Is the bulb included? Yes, the integrated LED module is included and rated for 24W.
Is it dimmable, and what dimmer should I use? Yes, the light is dimmable via the included remote or the fanSync app. No wall dimmer is required.
Can I install this in a bathroom or outdoors? This fan is damp-rated, so it's suitable for bathrooms and covered outdoor areas, but not for direct rain exposure.
What's the warranty? Fanimation offers a Limited Lifetime Warranty for the original purchaser.
Does it work with voice assistants? Yes, via Wi-Fi fanSync technology, it works with Alexa and Google Assistant.
