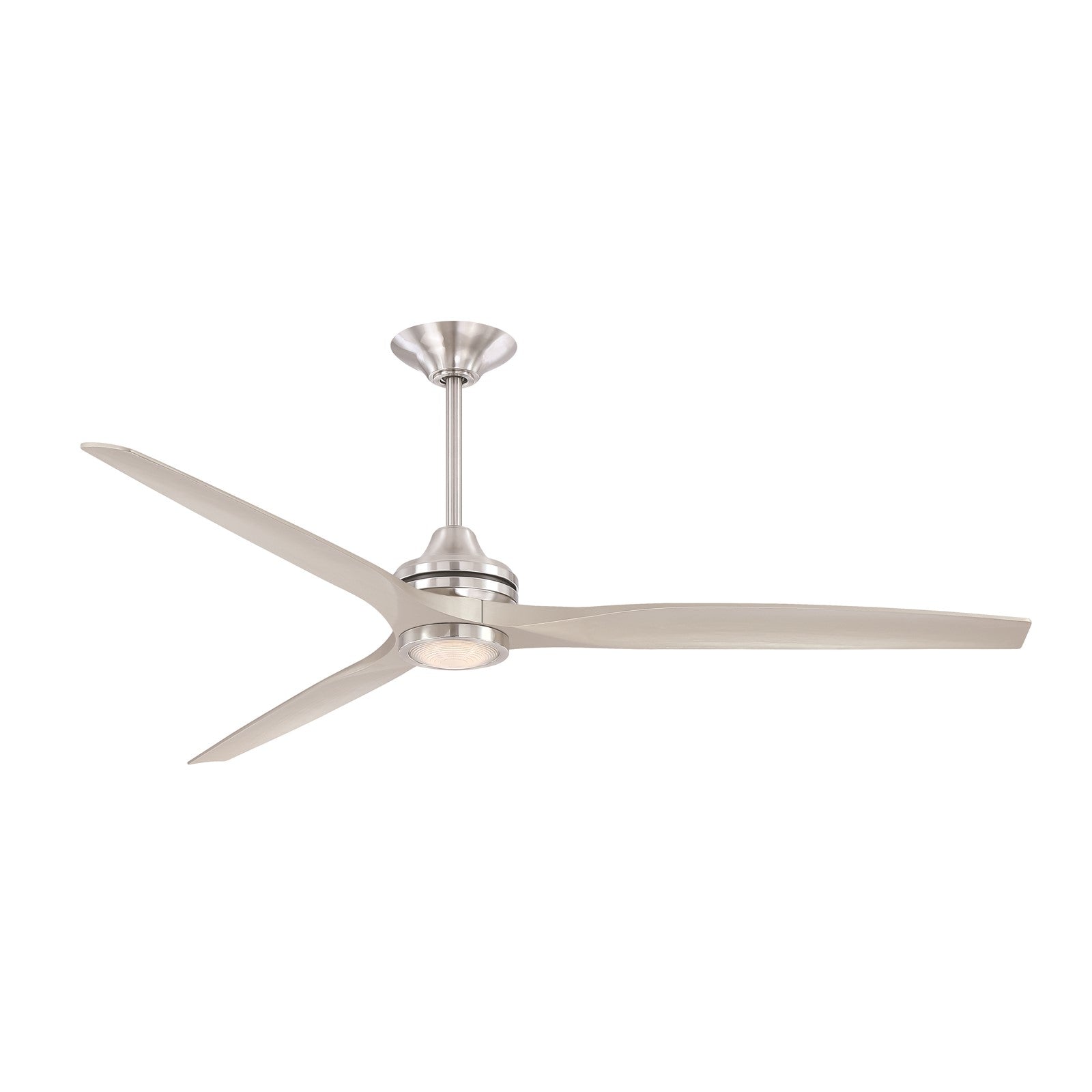

A 72-inch smart ceiling fan with an integrated LED light kit, designed for large indoor and covered outdoor spaces like patios and great rooms.
The Spitfire DC Custom pairs a sleek Brushed Nickel motor with three Brushed Nickel blades, delivering powerful airflow up to 9,639 CFM from its quiet 6-speed DC motor. The integrated 18-watt LED light kit features CCT Select technology, letting you shift from warm 2700K to bright 5000K to match your mood. With Wi-Fi fanSync, you can control the fan and light from your smartphone or voice assistant, and the included TR360 remote puts all functions at your fingertips.
Best for
- Covered patios and porches, where the damp-rated motor and marine-grade construction stand up to humidity
- Large living rooms and great rooms (up to 20x20 ft) needing high-velocity air movement
- Sunrooms and enclosed porches that benefit from both airflow and adjustable lighting
- Bedrooms and home offices where quiet operation and smart control are valued
- Spaces with ceilings up to 20° slope, using the included 6-inch or 12-inch downrods
Not ideal for
- Directly exposed outdoor areas without a roof or cover - this fan is damp-rated, not wet-rated
- Rooms with ceilings under 8 ft if you need maximum hanging height - use the flush mount version instead
- Small rooms under 100 sq ft where a 72-inch fan would overpower the space
How bright is it?
The integrated LED module produces 1600 lumens - about as bright as a 100W incandescent bulb, suitable for ambient lighting in a large room. It's dimmable, so you can lower the light for a cozy evening.
Light color and feel
With CCT Select, you can choose from 2700K (warm white), 3000K, 3500K, 4000K, and 5000K (daylight). This flexibility lets you create a warm, inviting glow for entertaining or a crisp, bright light for tasks. The high CRI of 90 ensures colors appear natural and vibrant.
Sizing and fit
This fan has a 72-inch blade sweep and a 14° blade pitch, ideal for large rooms. It includes 6-inch and 12-inch downrods, with optional downrods up to 72 inches for higher ceilings. The overall height is 19.42 inches with the light kit, and the canopy fits standard ceiling boxes.
Specifications
- Primary Finish: Brushed Nickel
- Blade Material: Buttonwood
- Blade Finish: Brushed Nickel
- Shade Finish: Fresnel and Frosted
- Collection: Spitfire
- Blade Sweep: 72"
- Number of Blades: 3
- Blade Pitch: 14°
- Motor Type: DC
- Motor Size: 153 X 22
- Motor Reversible: True
- Number of Speeds: 6
- Reverse Switch Location: Control
- Light Kit Included: True
- Cap Included: True
- Included Control: TR360
- Control Type: Handheld
- 1 Bulb(s)
- Bulb Type: LED Module
- Bulb Base: Connector Pin
- Bulb Max Wattage: 18W
- Color Temperature: 2700, 3000, 3500, 4000, 5000K
- CRI: 90
- Lumens: 1600
- Voltage: 120V
- Avg CFM: 6237
- CFM High: 9639
- Avg Energy Use: 20W
- Max Slope: 20°
- Location Rating: Damp
- Safety Rating: UL Only Listed
- Warranty: Limited Lifetime Warranty
Frequently asked
Is the bulb included? Yes, the LED module is integrated and included.
Is it dimmable, and what dimmer should I use? Yes, the light is dimmable via the included TR360 remote or the fanSync app. No wall dimmer is needed.
Can I install this in a bathroom or outdoors? This fan is damp-rated, so it's suitable for bathrooms and covered outdoor areas, but not for direct rain exposure.
What's the warranty? Fanimation offers a Limited Lifetime Warranty on the motor.
What shades are included? The light kit includes both Fresnel and Frosted glass shades, so you can choose your preferred light diffusion.
