A 72-inch indoor/outdoor smart ceiling fan with an integrated LED light kit, designed for large covered patios, porches, and great rooms.

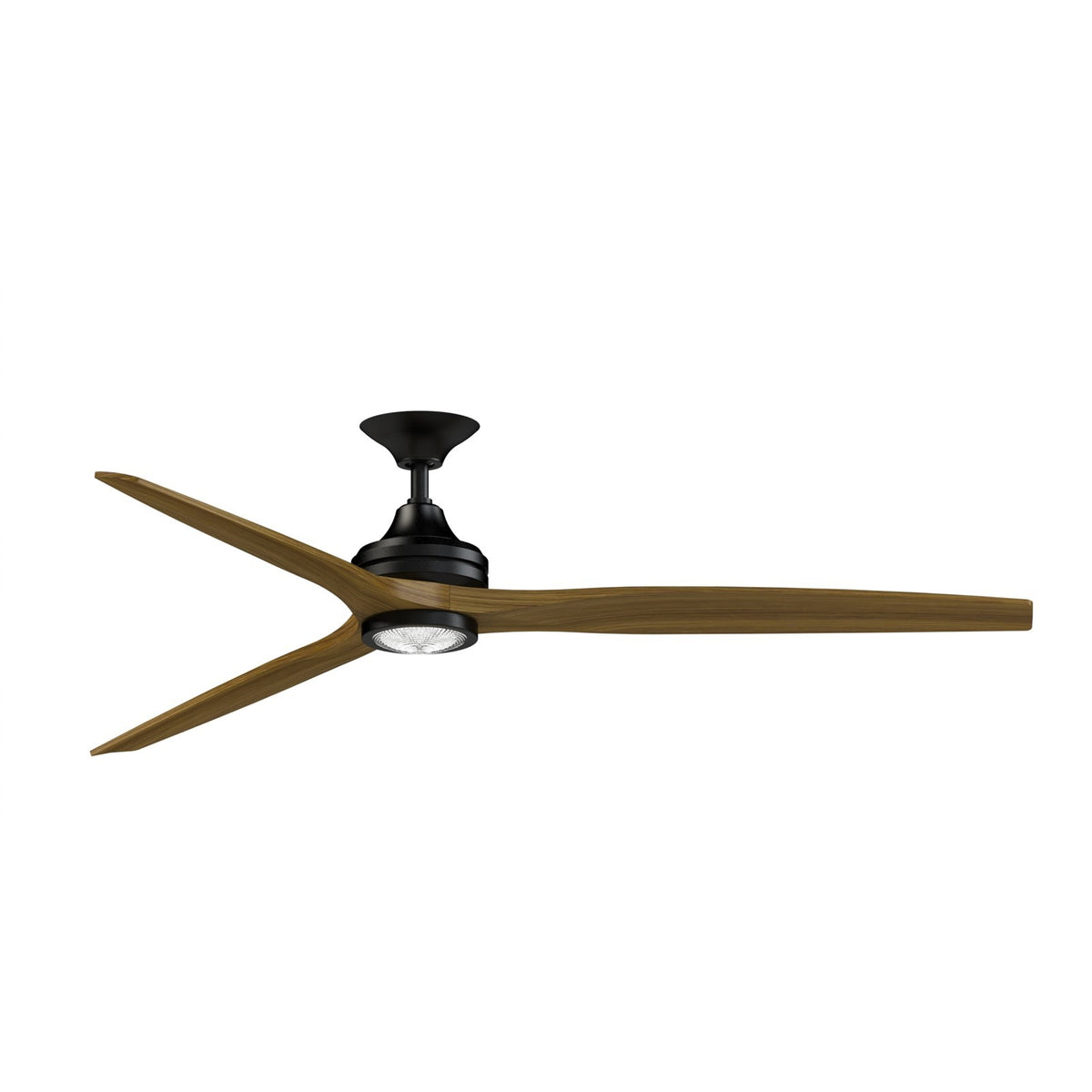

The Spitfire DC Custom pairs a sleek Black motor with three Koa wood blades, delivering powerful airflow up to 9,639 CFM from its quiet 6-speed DC motor. This version includes an integrated LED light kit with CCT Select technology, letting you shift from warm to daylight with five color temperatures. Control it all with the included TR360 remote or your smart device via Wi-Fi fanSync.
Best for
- Covered patios and porches, rated for damp locations
- Large living rooms and great rooms with high ceilings
- Sunrooms and enclosed porches needing year-round comfort
- Bedrooms and home offices where quiet operation matters
- Spaces with sloped ceilings up to 20 degrees
Not ideal for
- Directly exposed outdoor areas without overhead cover - this fan is damp rated, not wet rated
- Rooms with ceilings under 8 feet when using longer downrods
- Small spaces under 12x12 feet where a 72-inch sweep may be overpowering
How bright is it?
1600 lumens - about as bright as a 100W incandescent bulb, suitable for ambient lighting in large rooms. The integrated LED module is dimmable for adjustable mood lighting.
Light color and feel
Five selectable color temperatures from 2700K warm white to 5000K daylight, with a high CRI of 90 for accurate color rendering. Choose a cozy warm glow for evenings or bright daylight for tasks.
Sizing and fit
72-inch blade sweep with a 14-degree pitch, ideal for rooms over 15x15 feet. Includes 6-inch and 12-inch downrods; optional downrods up to 72 inches for ceiling heights up to 12 feet. Ceiling-to-bottom height with light kit is 15.35 or 21.35 inches.
Specifications
- Primary Finish: Black
- Blade Material: Wood
- Blade Finish: Koa
- Shade Finish: Fresnel and Frosted
- Collection: Spitfire
- Blade Sweep: 72"
- Number of Blades: 3
- Blade Pitch: 14°
- Motor Type: DC
- Motor Size: 153 X 22
- Motor Reversible: True
- Number of Speeds: 6
- Reverse Switch Location: Control
- Light Kit Included: True
- Cap Included: True
- Included Control: TR360
- Control Type: Handheld
- 1 Bulb(s)
- Bulb Type: LED Module
- Bulb Base: Connector Pin
- Bulb Max Wattage: 18W
- Color Temperature: 2700, 3000, 3500, 4000, 5000K
- CRI: 90
- Lumens: 1600
- Voltage: 120V
- Avg CFM: 6237
- CFM High: 9639
- Avg Energy Use: 20W
- Max Slope: 20°
- Location Rating: Damp
- Safety Rating: UL Only Listed
- Warranty: Limited Lifetime Warranty
Frequently asked
Is the bulb included? Yes, an integrated LED module is included.
Is it dimmable, and what dimmer should I use? Yes, the light is dimmable via the included remote or fanSync app.
Can I install this in a bathroom or outdoors? This fan is damp rated, suitable for bathrooms and covered outdoor areas, but not directly exposed to rain.
What's the warranty? Limited Lifetime Warranty for the original purchaser.
What shade options are included? Both fresnel and frosted shades are included, allowing you to choose the light diffusion you prefer.
