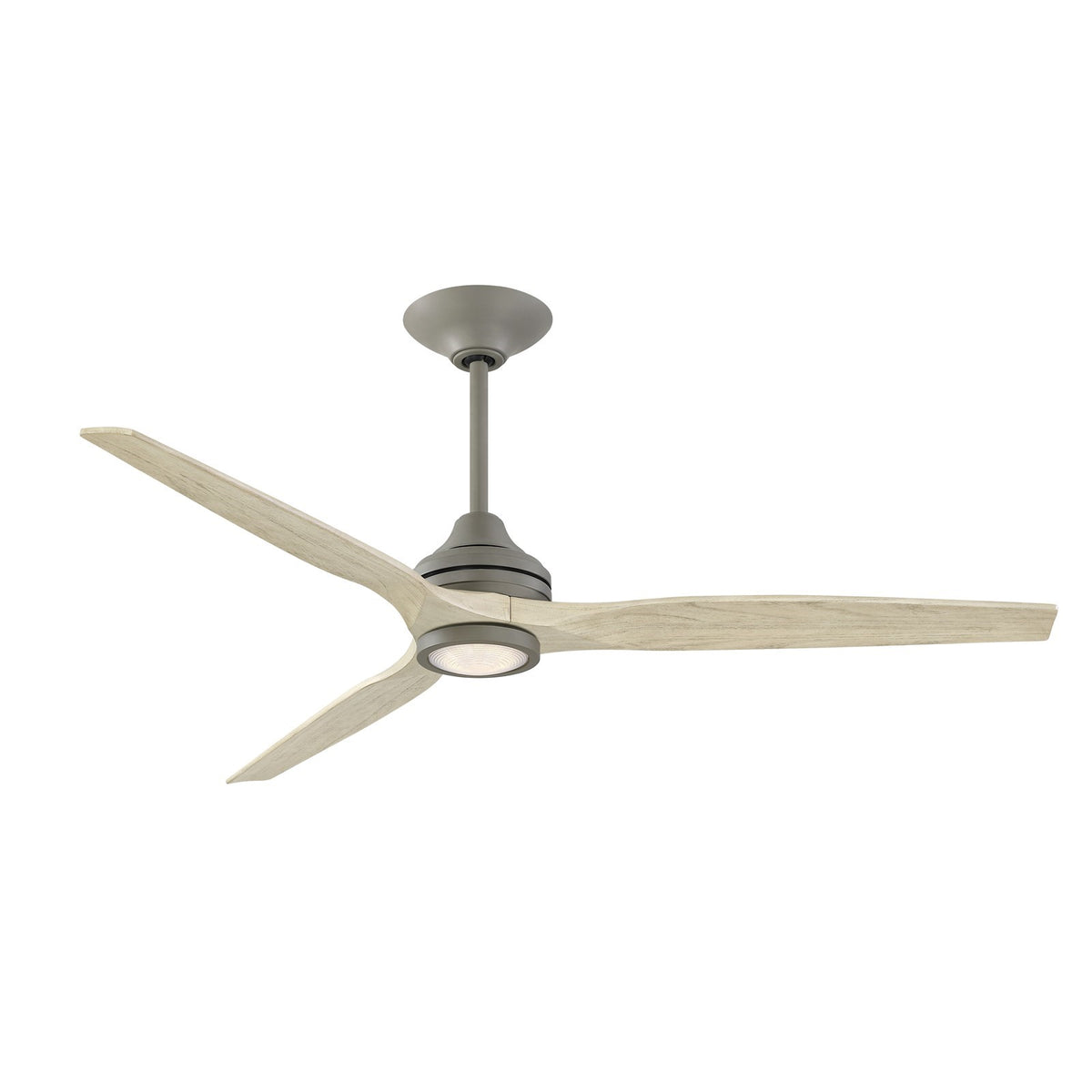

A 64-inch smart ceiling fan with an integrated LED light kit for covered patios, porches, and large bedrooms, finished in antique graphite with light oak blades.
The Spitfire DC Custom combines a sleek antique graphite motor housing with three light oak buttonwood blades, delivering powerful airflow up to 8,754 CFM from its quiet 6-speed DC motor. This version includes an integrated 18-watt LED light kit with CCT Select technology, offering five color temperatures from warm to daylight. The included TR360 handheld remote and Wi-Fi fanSync app provide convenient control of fan speed, light dimming, and color temperature.
Best for
- Covered patios and porches where damp-rated fixtures are needed
- Bedrooms and living rooms with standard 8-9 ft ceilings, using the included downrods
- Sunrooms and laundry rooms that experience humidity
- Large open-concept spaces up to 20x20 ft that need powerful air movement
- Smart home setups with voice assistants or the fanSync app
Not ideal for
- Outdoor areas directly exposed to rain or water - this fan is damp-rated, not wet-rated
- Rooms with ceilings lower than 8 ft if you use the 12-inch downrod
- Those seeking a fan without a light kit - this version includes one
How bright is it?
The integrated 18-watt LED module outputs 1600 lumens - comparable to a 100W incandescent bulb - suitable for ambient lighting in medium to large rooms.
Light color and feel
Choose from five color temperatures (2700K to 5000K) to shift from warm, cozy light to bright daylight. The high CRI of 90 ensures colors appear natural and vibrant.
Sizing and fit
This 64-inch fan has a blade sweep of 64 inches and an overall height of 19.42 inches with the included 6-inch downrod. It works well in rooms with 8-9 ft ceilings; optional downrods up to 72 inches are available for higher ceilings.
Specifications
- Primary Finish: Antique Graphite
- Blade Material: Buttonwood
- Blade Finish: Light Oak
- Shade Finish: Fresnel and Frosted
- Collection: Spitfire
- Blade Sweep: 64"
- Number of Blades: 3
- Blade Pitch: 14°
- Motor Type: DC
- Motor Size: 153 X 22
- Motor Reversible: True
- Number of Speeds: 6
- Reverse Switch Location: Control
- Light Kit Included: True
- Cap Included: True
- Included Control: TR360
- Control Type: Handheld
- 1 Bulb(s)
- Bulb Type: LED Module
- Bulb Base: Connector Pin
- Bulb Max Wattage: 18W
- Color Temperature: 2700, 3000, 3500, 4000, 5000K
- CRI: 90
- Lumens: 1600
- Voltage: 120V
- Avg CFM: 5473
- CFM High: 8754
- Avg Energy Use: 20W
- Max Slope: 20°
- Location Rating: Damp
- Safety Rating: UL Only Listed
- Warranty: Limited Lifetime Warranty
- Overall Dimensions: 64"(L)64"(W) x 19.42"(H)
- Housing Diameter: 8.07"
- Canopy Dimensions: 8.76"(Dia) x 2.52"(H)
- Downrod Length: 6, 12"
- Leadwire Length: 14 motor & 15 light"
- Ceiling to Bottom (No Light Kit): 13.69, 19.69"
- Ceiling to Bottom (With Light Kit): 15.35, 21.35"
- Item Weight: 20.24 lbs.
Frequently asked
Is the bulb included? Yes, the integrated LED module is included and not replaceable.
Is it dimmable, and what dimmer should I use? The light is dimmable via the included remote, no separate dimmer needed.
Can I install this in a bathroom or outdoors? Yes, it is damp-rated for covered outdoor areas and bathrooms with humidity, but not for direct rain exposure.
What's the warranty? Limited Lifetime Warranty for the original purchaser.
Does this fan work with sloped ceilings? Yes, it supports slopes up to 20 degrees.
