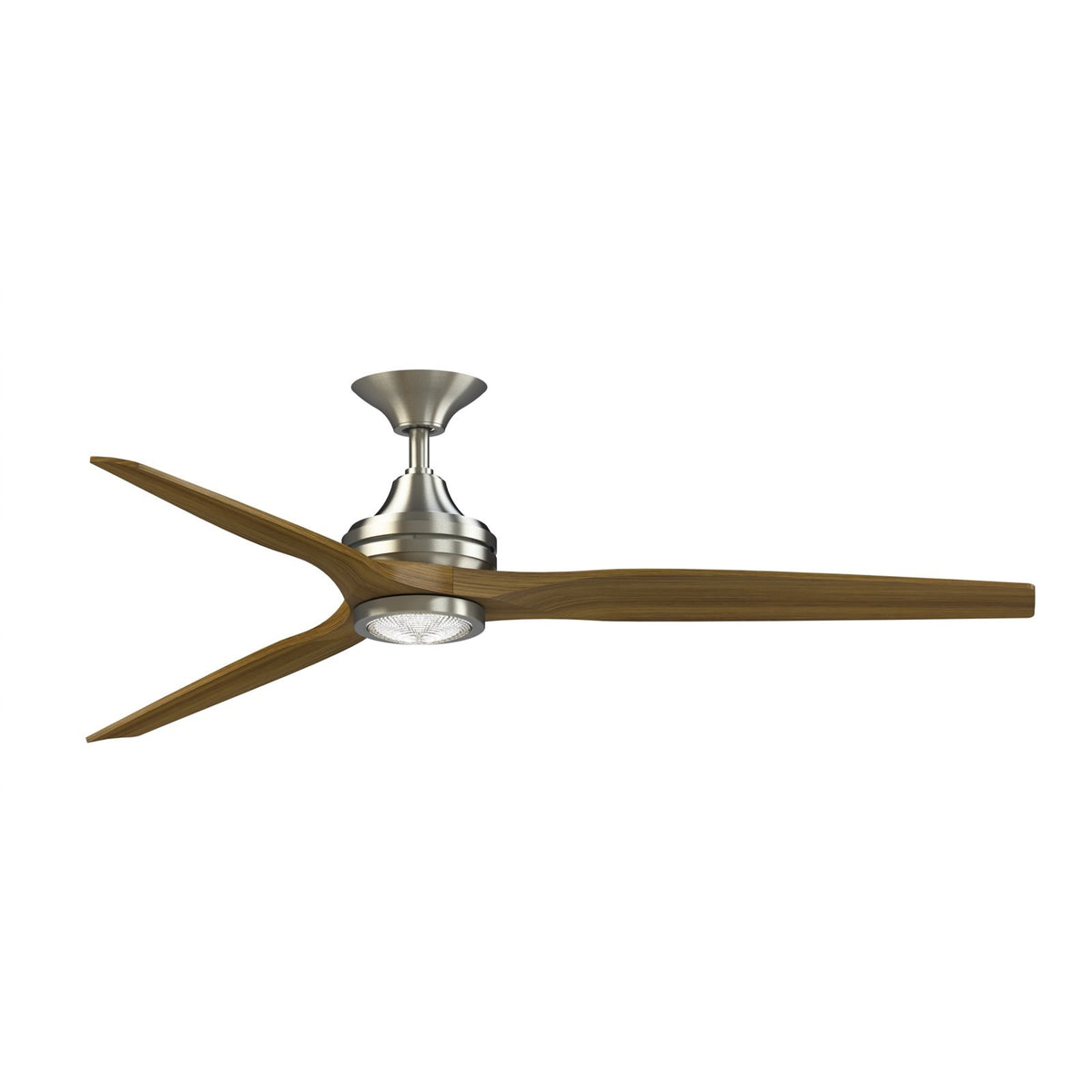

A 64-inch smart ceiling fan with integrated LED light kit from Fanimation's Spitfire DC Custom collection, finished in brushed nickel with Koa wood blades, for covered outdoor and indoor living spaces.
The Spitfire DC Custom pairs a streamlined brushed nickel motor housing with three Koa wood blades for a warm, natural look that suits coastal and contemporary interiors. Its 6-speed DC motor delivers powerful yet quiet airflow up to 8,754 CFM, and the included TR360 remote plus Wi-Fi fanSync technology put full control at your fingertips. This version includes an 18-watt LED light kit with CCT Select technology, offering five color temperatures from warm to daylight. Damp rated for covered outdoor use, this downrod version includes 6-inch and 12-inch downrods for flexible installation.
Best for
- Covered patios, porches, and sunrooms where damp-rated fixtures are needed
- Bedrooms and living rooms with standard 8-9 ft ceilings (downrod included)
- Large rooms up to 20x20 ft needing high airflow (up to 8,754 CFM)
- Smart-home setups with voice assistant or app control via fanSync
- Year-round comfort with reversible motor and dimmable, color-tunable light
Not ideal for
- Spaces directly exposed to rain or water - damp rated, not wet rated
- Rooms with low ceilings under 8 ft - downrod adds height
- Those who prefer a pull-chain control - this fan is remote-only
How bright is it?
The integrated 18-watt LED light kit delivers 1600 lumens - roughly equivalent to a 100W incandescent bulb, suitable for ambient lighting in a bedroom or covered patio. It is dimmable via the remote.
Light color and feel
CCT Select technology lets you choose from five color temperatures - 2700K warm white, 3000K soft white, 3500K neutral, 4000K cool white, or 5000K daylight - so you can match the mood from cozy to crisp. With a CRI of 90, colors appear vibrant and accurate.
Sizing and fit
This 64-inch fan has an overall dimension of 64 x 64 x 19.42 inches (with included 12-inch downrod). It includes 6-inch and 12-inch downrods, and optional downrods up to 72 inches are available for higher ceilings. The canopy is 8.76 inches in diameter, and the housing is 8.07 inches. Ideal for large living areas, covered patios, and primary bedrooms.
Specifications
- Primary Finish: Brushed Nickel
- Blade Material: Wood
- Blade Finish: Koa
- Shade Finish: Fresnel and Frosted
- Collection: Spitfire
- Blade Sweep: 64"
- Number of Blades: 3
- Blade Pitch: 14°
- Motor Type: DC
- Motor Size: 153 X 22
- Motor Reversible: True
- Number of Speeds: 6
- Reverse Switch Location: Control
- Light Kit Included: True
- Cap Included: True
- Included Control: TR360
- Control Type: Handheld
- 1 Bulb(s)
- Bulb Type: LED Module
- Bulb Base: Connector Pin
- Bulb Max Wattage: 18W
- Color Temperature: 2700, 3000, 3500, 4000, 5000K
- CRI: 90
- Lumens: 1600
- Voltage: 120V
- Avg CFM: 5473
- CFM High: 8754
- Avg Energy Use: 20W
- Max Slope: 20°
- Location Rating: Damp
- Safety Rating: UL Only Listed
- Warranty: Limited Lifetime Warranty
- Overall Dimensions: 64"(L)64"(W) x 19.42"(H)
- Housing Diameter: 8.07"
- Canopy Dimensions: 8.76"(Dia) x 2.52"(H)
- Downrod Length: 6, 12"
- Leadwire Length: 14 motor & 15 light"
- Ceiling to Bottom (No Light Kit): 13.69, 19.69"
- Ceiling to Bottom (With Light Kit): 15.35, 21.35"
- Item Weight: 20.24 lbs.
Frequently asked
Is the bulb included? Yes, the integrated LED light kit is included and features CCT Select technology with five color temperatures.
Is it dimmable, and what dimmer should I use? Yes, the light is dimmable via the included TR360 remote. No wall dimmer is needed.
Can I install this in a bathroom or outdoors? Yes, this fan is damp rated, making it suitable for bathrooms, covered patios, porches, and sunrooms. It should not be directly exposed to rain or water.
What's the warranty? Fanimation offers a Limited Lifetime Warranty for the original purchaser, covering the motor. Contact Fanimation Tech Support at 1-888-567-2055 for assistance.
Can I use this on a sloped ceiling? Yes, this fan is rated for slopes up to 20 degrees, and the included downrods help achieve proper hanging height.
