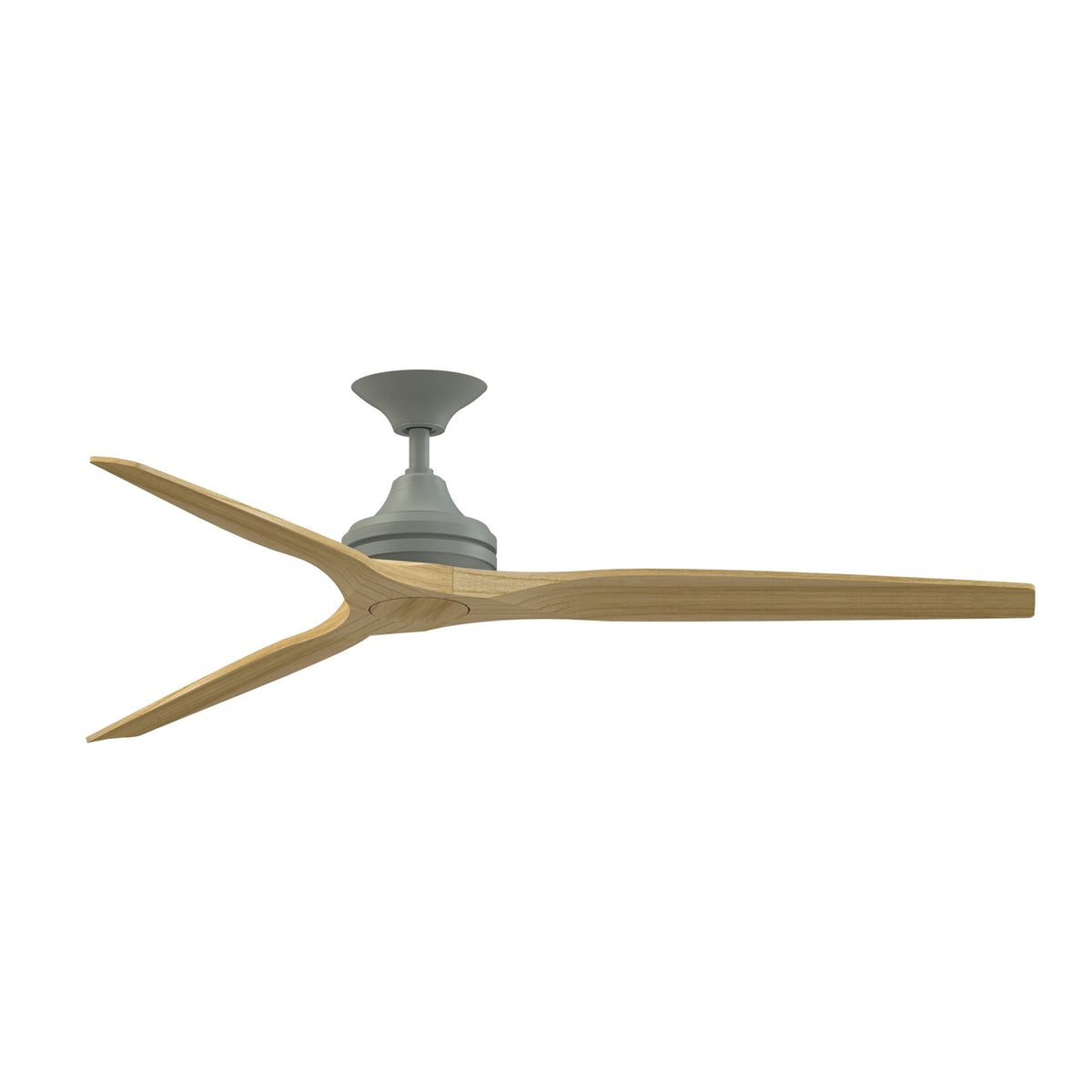

A 64-inch smart ceiling fan for covered patios, porches, and large bedrooms, finished in antique graphite with natural blades.
The Spitfire DC Custom combines a sleek antique graphite motor housing with three natural buttonwood blades for a warm, organic look that suits both indoor and covered outdoor spaces. Its 6-speed DC motor delivers powerful yet quiet airflow up to 8,754 CFM, while the included TR360 handheld remote and Wi-Fi fanSync technology put full control at your fingertips. Compatible with an optional integrated 18-watt LED light kit (sold separately) featuring CCT Select technology for five color temperatures.
Best for
- Covered patios and porches where damp-rated fixtures are needed
- Bedrooms and living rooms with standard 8-9 ft ceilings, using the included downrods
- Sunrooms and laundry rooms that experience humidity
- Large open-concept spaces up to 20x20 ft that need powerful air movement
- Smart home setups with voice assistants or the fanSync app
Not ideal for
- Outdoor areas directly exposed to rain or water - this fan is damp-rated, not wet-rated
- Rooms with ceilings lower than 8 ft if you use the 12-inch downrod
- Those seeking a fan with an integrated light kit - this version requires a separate purchase
How bright is it?
This fan does not include a light kit. When paired with the optional 18-watt LED module, it outputs 1600 lumens - comparable to a 100W incandescent bulb - suitable for ambient lighting in medium rooms.
Light color and feel
With the optional light kit, you can select from five color temperatures (2700K to 5000K), ranging from warm, cozy light to bright daylight. The high CRI of 90 ensures colors appear natural and vibrant.
Sizing and fit
This 64-inch fan has a blade sweep of 64 inches and an overall height of 19.69 inches with the included 6-inch downrod. It works well in rooms with 8-9 ft ceilings; optional downrods up to 72 inches are available for higher ceilings.
Specifications
- Primary Finish: Antique Graphite
- Blade Material: Buttonwood
- Blade Finish: Natural
- Collection: Spitfire
- Blade Sweep: 64"
- Number of Blades: 3
- Blade Pitch: 14°
- Motor Type: DC
- Motor Size: 153 X 22
- Motor Reversible: True
- Number of Speeds: 6
- Reverse Switch Location: Control
- Cap Included: True
- Included Control: TR360
- Control Type: Handheld
- Voltage: 120V
- Avg CFM: 5473
- CFM High: 8754
- Avg Energy Use: 20W
- Max Slope: 20°
- Location Rating: Damp
- Safety Rating: UL Only Listed
- Warranty: Limited Lifetime Warranty
- Overall Dimensions: 64"(L)64"(W) x 19.69"(H)
- Housing Diameter: 8.07"
- Canopy Dimensions: 8.76"(Dia) x 2.52"(H)
- Downrod Length: 6, 12"
- Leadwire Length: 14 motor & 15 light"
- Ceiling to Bottom (No Light Kit): 13.69, 19.69"
- Item Weight: 18.94 lbs.
Frequently asked
Is the bulb included? No, this fan does not include a light kit. The optional 18-watt LED module is sold separately.
Is it dimmable, and what dimmer should I use? The fan speed is adjustable via the remote. The optional light kit is dimmable and controlled via the remote, no separate dimmer needed.
Can I install this in a bathroom or outdoors? Yes, it is damp-rated for covered outdoor areas and bathrooms with humidity, but not for direct rain exposure.
What's the warranty? Limited Lifetime Warranty for the original purchaser.
Does this fan work with sloped ceilings? Yes, it supports slopes up to 20 degrees.
