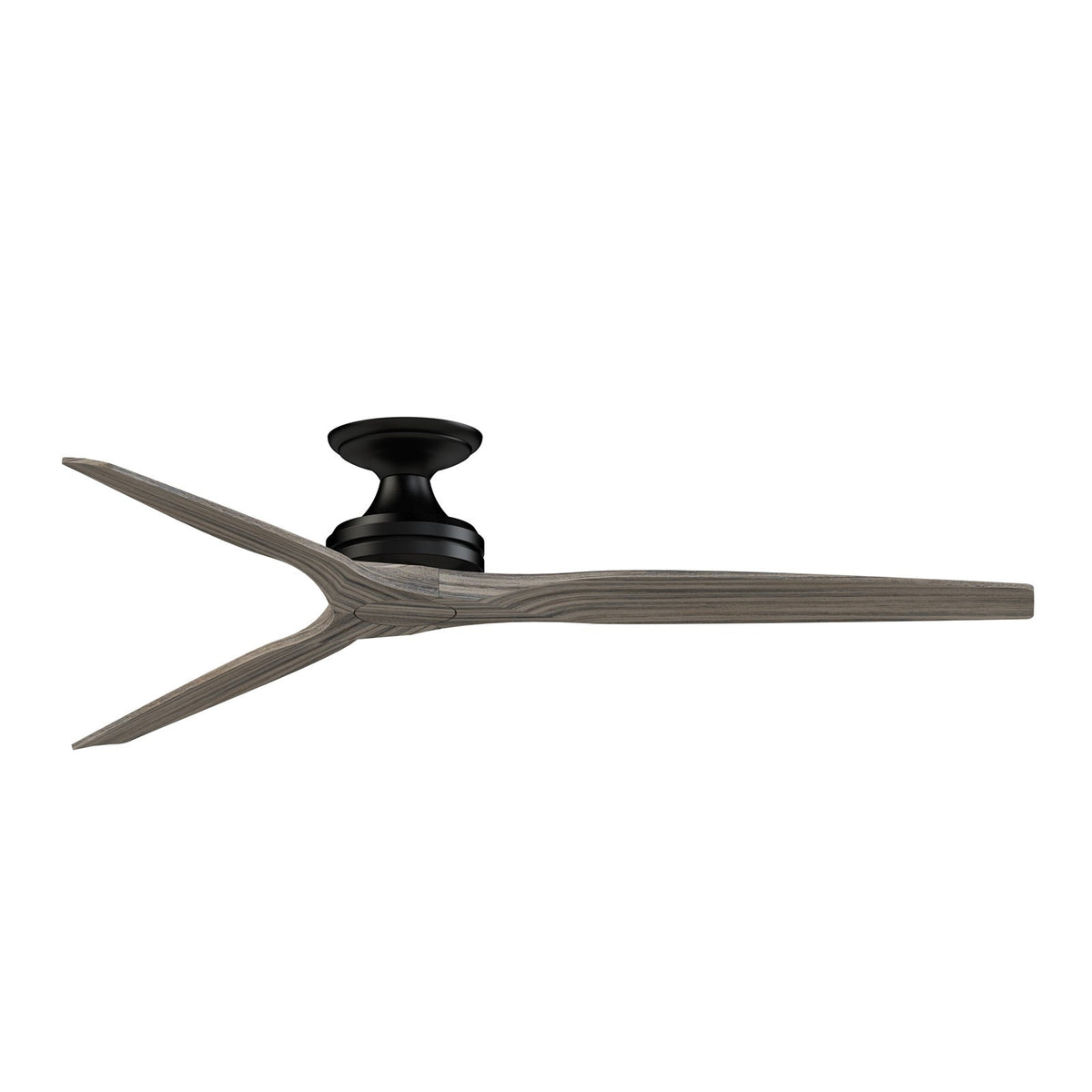

A 64-inch flush-mount smart ceiling fan with a black motor and weathered wood blades, designed for covered outdoor and indoor spaces, with optional LED light kit compatibility.
The Spitfire DC Custom combines a sleek black finish with three weathered wood blades for a modern, organic aesthetic. Its powerful DC motor delivers up to 8,754 CFM of airflow while operating quietly. This version is compatible with an integrated 18-watt LED light kit (sold separately) and includes a handheld remote and Wi-Fi fanSync technology for smart control.
Best for
- Covered patios and porches where damp-rated fixtures are required
- Sunrooms and three-season rooms needing both airflow and light
- Living rooms and great rooms with ceilings at least 8 feet high
- Bedrooms and home offices where quiet operation is a priority
- Low-ceiling rooms that need a flush mount to maximize headroom
Not ideal for
- Outdoor areas directly exposed to rain or water - this fan is damp-rated, not wet-rated
- Rooms with ceilings under 7 feet - the fan hangs 9.65 inches from the ceiling
- Spaces where you prefer a traditional pull-chain control - this fan uses a remote only
How bright is it?
This fan does not include a light kit, but it is compatible with Fanimation's integrated 18-watt LED light kit, which produces 1600 lumens - roughly equivalent to a 100-watt incandescent bulb. The light kit is sold separately.
Light color and feel
If you add the optional light kit, you can choose from five color temperatures: 2700K (warm white), 3000K (soft white), 3500K (neutral), 4000K (cool white), and 5000K (daylight). With a CRI of 90, colors appear vivid and accurate. The light is dimmable via the remote.
Sizing and fit
This fan has a 64-inch blade sweep and measures 64 inches wide by 64 inches deep by 9.65 inches high. It mounts flush to the ceiling, making it ideal for rooms with low ceilings. The canopy is 7.85 inches in diameter and 5.02 inches high. It weighs 20.7 pounds and requires a ceiling that can support its weight.
Specifications
- Primary Finish: Black
- Blade Material: Buttonwood
- Blade Finish: Weathered Wood
- Collection: Spitfire
- Blade Sweep: 64"
- Number of Blades: 3
- Blade Pitch: 14°
- Motor Type: DC
- Motor Size: 153 X 22
- Motor Reversible: True
- Number of Speeds: 6
- Reverse Switch Location: Control
- Cap Included: True
- Included Control: TR360
- Control Type: Handheld
- Voltage: 120V
- Avg CFM: 5473
- CFM High: 8754
- Avg Energy Use: 20W
- Location Rating: Damp
- Safety Rating: UL Only Listed
- Warranty: Limited Lifetime Warranty
- Overall Dimensions: 64"(L)64"(W) x 9.65"(H)
- Housing Diameter: 8.07"
- Canopy Dimensions: 7.85"(Dia) x 5.02"(H)
- Leadwire Length: 14 motor & 15 light"
- Ceiling to Bottom (No Light Kit): 9.65"
- Item Weight: 20.7 lbs.
Frequently asked
What is it made of? The motor housing is finished in black, and the blades are made of buttonwood with a weathered wood finish.
Where in the home does this work best? This fan is damp-rated, so it works well in covered patios, porches, sunrooms, bathrooms, and laundry rooms. It is also suitable for living rooms and bedrooms.
How is it mounted or assembled? This fan mounts flush to a flat ceiling using the included ceiling bracket. Assembly is required, and the fan includes Fanimation's KwikWire feature for easier wiring.
What's the warranty? Fanimation offers a Limited Lifetime Warranty for the original purchaser. For assistance, contact Fanimation Tech Support at 1-888-567-2055.
Can I add a light kit later? Yes, this fan is compatible with Fanimation's integrated 18-watt LED light kit, which is sold separately. The light kit features CCT Select technology with five color temperatures.
