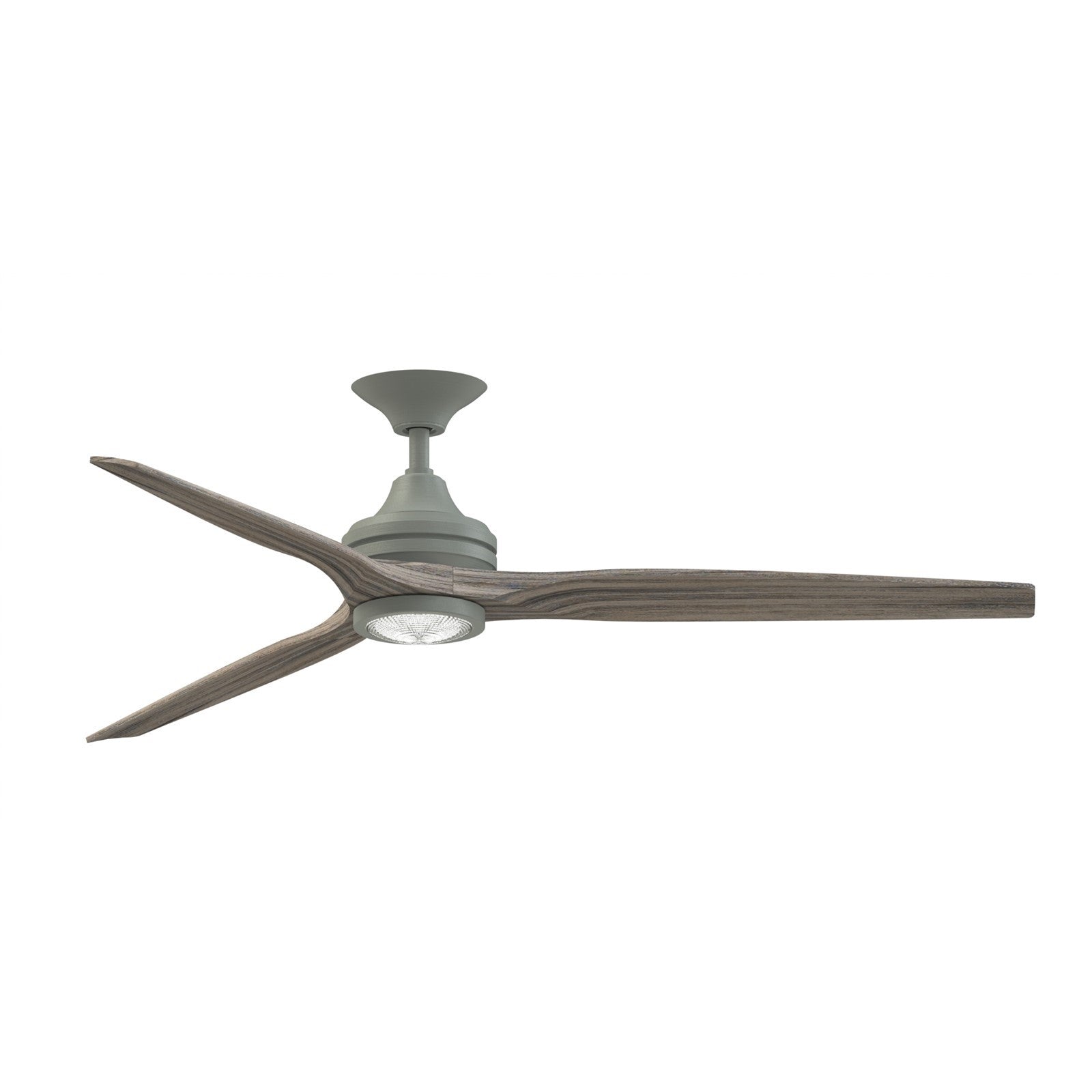

A 64-inch downrod smart ceiling fan with an integrated LED light kit, designed for covered outdoor and indoor living spaces, finished in antique graphite with weathered wood blades.
The Spitfire DC Custom combines a sleek, modern design with the flexibility of a downrod mount. The antique graphite motor housing pairs with weathered wood blades for a rustic yet contemporary look. This version includes an 18-watt LED light kit with CCT Select technology, letting you choose from five color temperatures to match your mood. With Wi-Fi enabled fanSync, you can control the fan and light from your smartphone or voice assistant, and the included TR360 remote puts all functions at your fingertips.
Best for
- Covered patios, porches, and sunrooms where damp-rated fixtures are required
- Living rooms and bedrooms with standard 8-9 foot ceilings, using the included downrods
- Open-concept spaces where a 64-inch blade sweep provides ample air movement
- Spaces needing both powerful airflow and customizable lighting in one unit
Not ideal for
- Outdoor areas directly exposed to rain or water - this fan is damp-rated, not wet-rated
- Rooms with very low ceilings (under 8 feet) where a flush mount would be more appropriate
- Small rooms under 12x12 feet where a 64-inch fan may feel oversized
How bright is it?
The integrated LED module delivers 1600 lumens - roughly equivalent to a 100-watt incandescent bulb - providing ample light for a living room or covered patio. It's bright enough to serve as the primary light source in a medium-sized room, and it's fully dimmable for softer ambiance.
Light color and feel
With CCT Select technology, you can choose from 2700K (warm white), 3000K (soft white), 3500K (neutral), 4000K (cool white), or 5000K (daylight). This flexibility lets you shift from cozy, warm light for evenings to crisp, bright light for tasks. The high CRI of 90 ensures colors appear natural and vibrant.
Sizing and fit
This fan measures 64 inches in diameter and hangs 19.42 inches from the ceiling with the included 12-inch downrod. It includes both 6-inch and 12-inch downrods, and optional downrods up to 72 inches are available for higher ceilings. The 64-inch blade sweep is best for rooms at least 15x15 feet.
Specifications
- Primary Finish: Antique Graphite
- Blade Material: Buttonwood
- Blade Finish: Weathered Wood
- Shade Finish: Fresnel and Frosted
- Collection: Spitfire
- Blade Sweep: 64"
- Number of Blades: 3
- Blade Pitch: 14°
- Motor Type: DC
- Motor Size: 153 X 22
- Motor Reversible: True
- Number of Speeds: 6
- Reverse Switch Location: Control
- Light Kit Included: True
- Cap Included: True
- Included Control: TR360
- Control Type: Handheld
- 1 Bulb(s)
- Bulb Type: LED Module
- Bulb Base: Connector Pin
- Bulb Max Wattage: 18W
- Color Temperature: 2700, 3000, 3500, 4000, 5000K
- CRI: 90
- Lumens: 1600
- Voltage: 120V
- Avg CFM: 5473
- CFM High: 8754
- Avg Energy Use: 20W
- Max Slope: 20°
- Location Rating: Damp
- Safety Rating: UL Only Listed
- Warranty: Limited Lifetime Warranty
Frequently asked
Is the bulb included? Yes, the integrated LED module is included and cannot be replaced.
Is it dimmable, and what dimmer should I use? Yes, the light is dimmable via the included TR360 remote or the fanSync app. No wall dimmer is required.
Can I install this in a bathroom or outdoors? This fan is damp-rated, so it's suitable for bathrooms and covered outdoor areas, but not for direct rain exposure.
What's the warranty? Fanimation offers a Limited Lifetime Warranty on the motor for the original purchaser.
Does this fan work with voice assistants? Yes, via Wi-Fi and the fanSync app, it works with Amazon Alexa and Google Assistant.
